Forums >> Revit Building >> Technical Support >> Hidden Faces in Structural Framing

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Sep 9, 2013 at 3:19:10 PM | Hidden Faces in Structural Framing

#1

Phantomwray


active

Joined: Mon, Sep 9, 2013
3 Posts
No Rating


I have some structural framing members which I have cut with voids (as well as with reference planes) in order to shape the ends.  The problem I have is in a view, the member is cut but the line representing a hidden face of the member is not cut.

I tried using the linework tool and setting it to an Invisible Line which didn't work.  Of course I can turn hidden faces off, but I want to see them elsewhere on other objects in the view.



Is there something I'm missing?


This user is offline



Tue, Sep 17, 2013 at 5:45:00 PM | Hidden Faces in Structural Framing

#2

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 35 Votes


Picture(s) please.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Wed, Sep 18, 2013 at 12:06:08 PM | Hidden Faces in Structural Framing

#3

Phantomwray


active

Joined: Mon, Sep 9, 2013
3 Posts
No Rating

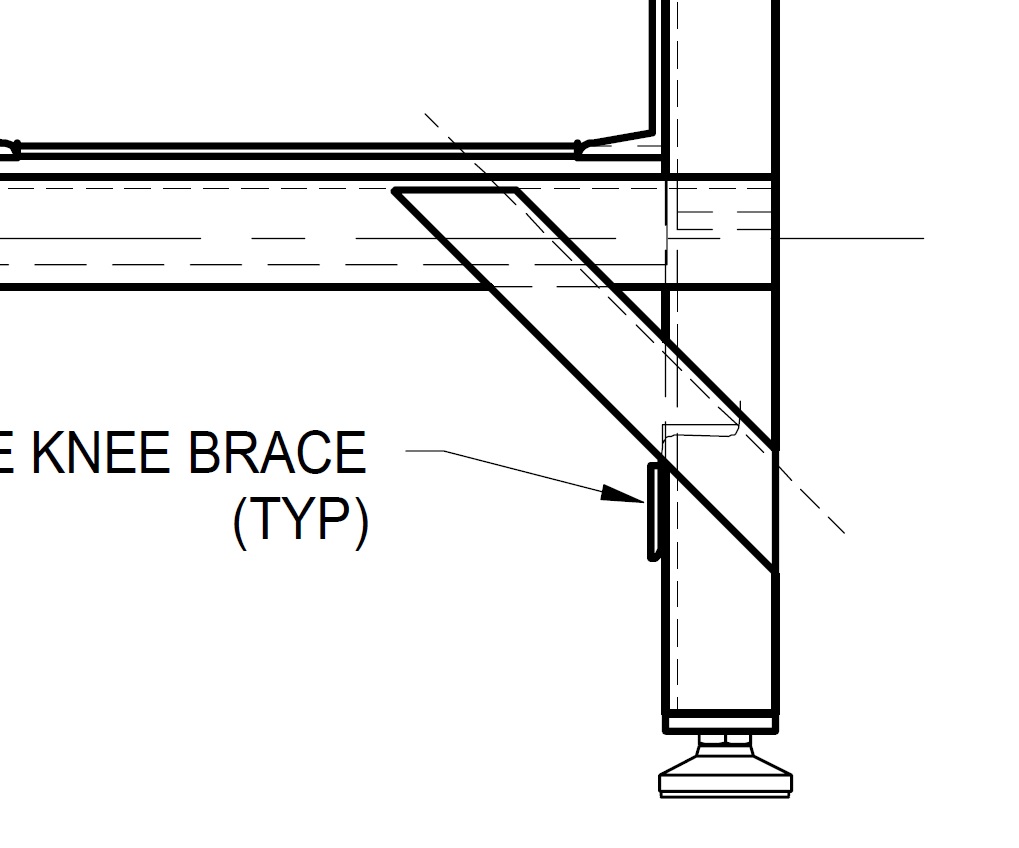

The steel angle which is at 45 degrees is an L51x51x6.4.  At each end, there is a void which cuts the angle.  You can see the hidden line which extends beyond the ends of the member.  This line is the face of the angle leg pointing out of the page.  I can control it using the "Hidden Faces" subcategory.

Basically, I don't want it to extend past the cut ends.



Attached Images


This user is offline



Wed, Sep 18, 2013 at 5:23:55 PM | Hidden Faces in Structural Framing

#4

AbsoluteBIM


active
AbsoluteBIM Avatar

Joined: Fri, Jun 17, 2011
220 Posts
3.5 Stars: 3 Votes

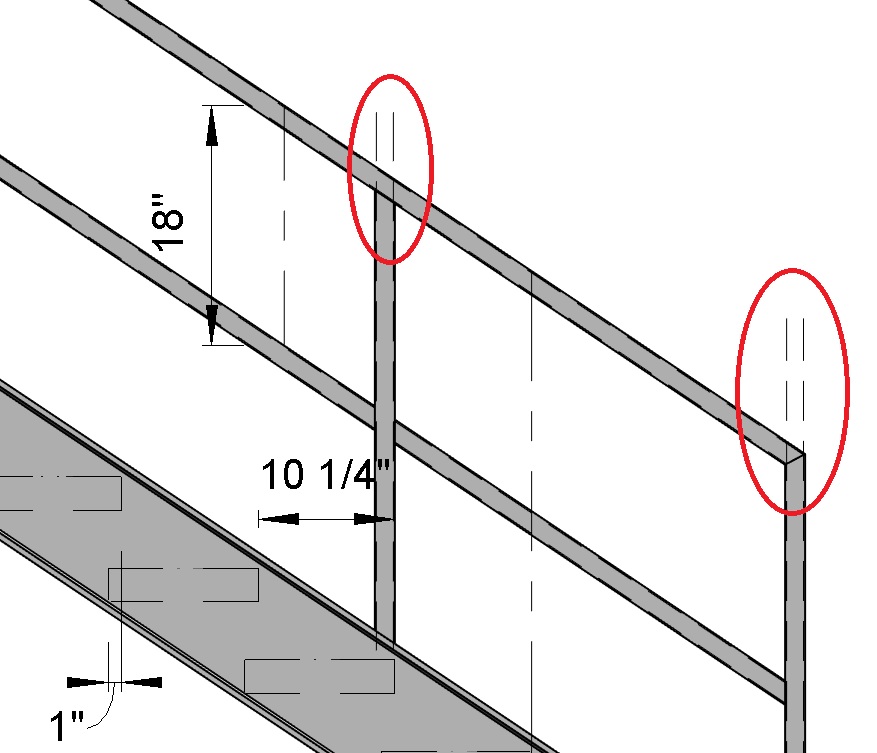

I have had the same issue ever since upgrading to 2013. Phantomwray, are you also using 2013 version? Anybody with 2014 know if this issue was resolved?



Attached Images


This user is offline



Wed, Sep 18, 2013 at 5:26:48 PM | Hidden Faces in Structural Framing

#5

Phantomwray


active

Joined: Mon, Sep 9, 2013
3 Posts
No Rating


I just upgraded to 2014 and it's still not working correctly.


This user is offline
