Mon, Aug 26, 2013 at 3:02:35 PM | Revit Text Element Appearing Outside Crop Region

#1

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


Hi!

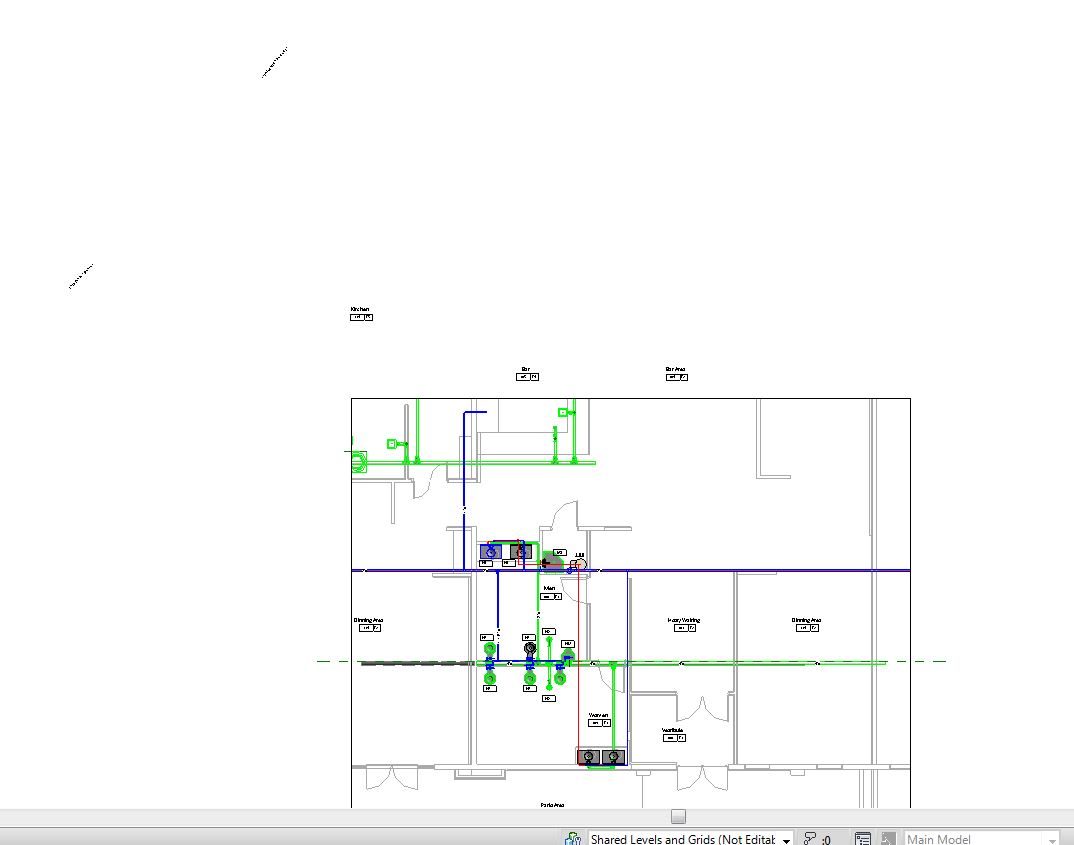

I'm attempting to crop one of my views, but some of the text note items are still visible outside the crop region.  These text elements are part of another model that's been linked into the project that I'm working on.  I've been able to select the individual elements, but the option to hide the elements in view is GREYED OUT (although I am still able to select "Hide Category").  I've also tried masking the region where the elements are, but that isn't working, either.  Help!!



Attached Images


This user is offline



Mon, Aug 26, 2013 at 3:08:04 PM | Revit Text Element Appearing Outside Crop Region

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Linked models can be controlled seperately in any view.  VG / Linked Model tab / Custom setting - turn off text under the annoptations tab.



Did you know you have a seperate annotation crop box from the model crop box?


This user is offline



Mon, Aug 26, 2013 at 3:08:07 PM | Revit Text Element Appearing Outside Crop Region

Thread Post Kudo! #3

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating


Adjust your annotation crop region. Make sure it is checked it your view properties, it's the dashed line that appears outside of the solid line of your normal crop region.


This user is offline



Mon, Aug 26, 2013 at 3:34:33 PM | Revit Text Element Appearing Outside Crop Region

#4

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


Hi!

Yup!  I adjusted the annotation region.  Yet, I am STILL unable to hide that particular element...WHY??



Attached Images


This user is offline



Mon, Aug 26, 2013 at 3:39:52 PM | Revit Text Element Appearing Outside Crop Region

#5

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating


I see, that is strange. What type of element is that? Just text or is perhaps a room or space tag? I'm assuming you don't want to hide category because there are some elements you do want to appear in your view?


This user is offline



Mon, Aug 26, 2013 at 3:44:10 PM | Revit Text Element Appearing Outside Crop Region

#6

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating


Could it be possible that the text is in the walk-in cooler family and not just text in the linked file?


This user is offline



Mon, Aug 26, 2013 at 3:44:52 PM | Revit Text Element Appearing Outside Crop Region

#7

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


That's right.  I'd like to hide JUST that element.  I think it's just text...?



Attached Images


This user is offline



Mon, Aug 26, 2013 at 4:00:41 PM | Revit Text Element Appearing Outside Crop Region

#8

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating

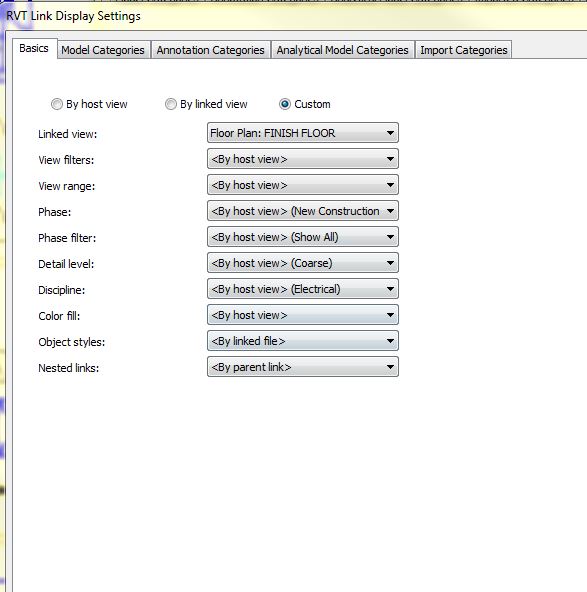

I can create your problem but not solve it. When I set the link display settings in VG as shown, the text becomes visible and I can hide by category but not by element. Why not create your own text notes instead of trying to use the ones in the linked file?



Attached Images


This user is offline



Mon, Aug 26, 2013 at 4:05:13 PM | Revit Text Element Appearing Outside Crop Region

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Turn off the linked file text and see if it goes away.  If it does, then it is Revit text, if not, then it is text in a family, or in CAD in the project or in a family.


This user is offline



Mon, Aug 26, 2013 at 4:18:04 PM | Revit Text Element Appearing Outside Crop Region

#10

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


I turned off the text category in the linked file and, sure enough, the text did not go away.  How on earth can I get rid of this??  Is there a way to find out what family that text is in??  I'm lost past this point.



Also, I tried creating a masking region to hide the text.  But that doesn't work EITHER.  :-\



Attached Images


This user is offline



Tue, Aug 27, 2013 at 7:10:40 AM | Revit Text Element Appearing Outside Crop Region

#11

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You will either have to tell the creator of the file to fix it or open up the linked file and fix it there.


This user is offline



Wed, Aug 28, 2013 at 11:51:32 AM | Revit Text Element Appearing Outside Crop Region

#12

fmsrevit


active

Joined: Tue, Aug 13, 2013
15 Posts
No Rating


Thanks for everyone's help!

Is there any other way you can think of of hiding the text?  Perhaps a filled region?


This user is offline



Fri, Nov 22, 2013 at 7:37:04 AM | Revit Text Element Appearing Outside Crop Region

#13

acosta2013


active

Joined: Wed, Jan 9, 2013
2 Posts
No Rating


If this not solve the problem, this is the solution. got this problem today and fixed.

>>In the properties tick the box "annotation Crop"

>>Show crop region

>>click the crop region, annotation crop will appear then adjust.


This user is offline
