Forums >> Revit Building >> Technical Support >> Pat file generation
|
|
|
active
Joined: Wed, May 29, 2013
10 Posts
No Rating |
Hi Guys,

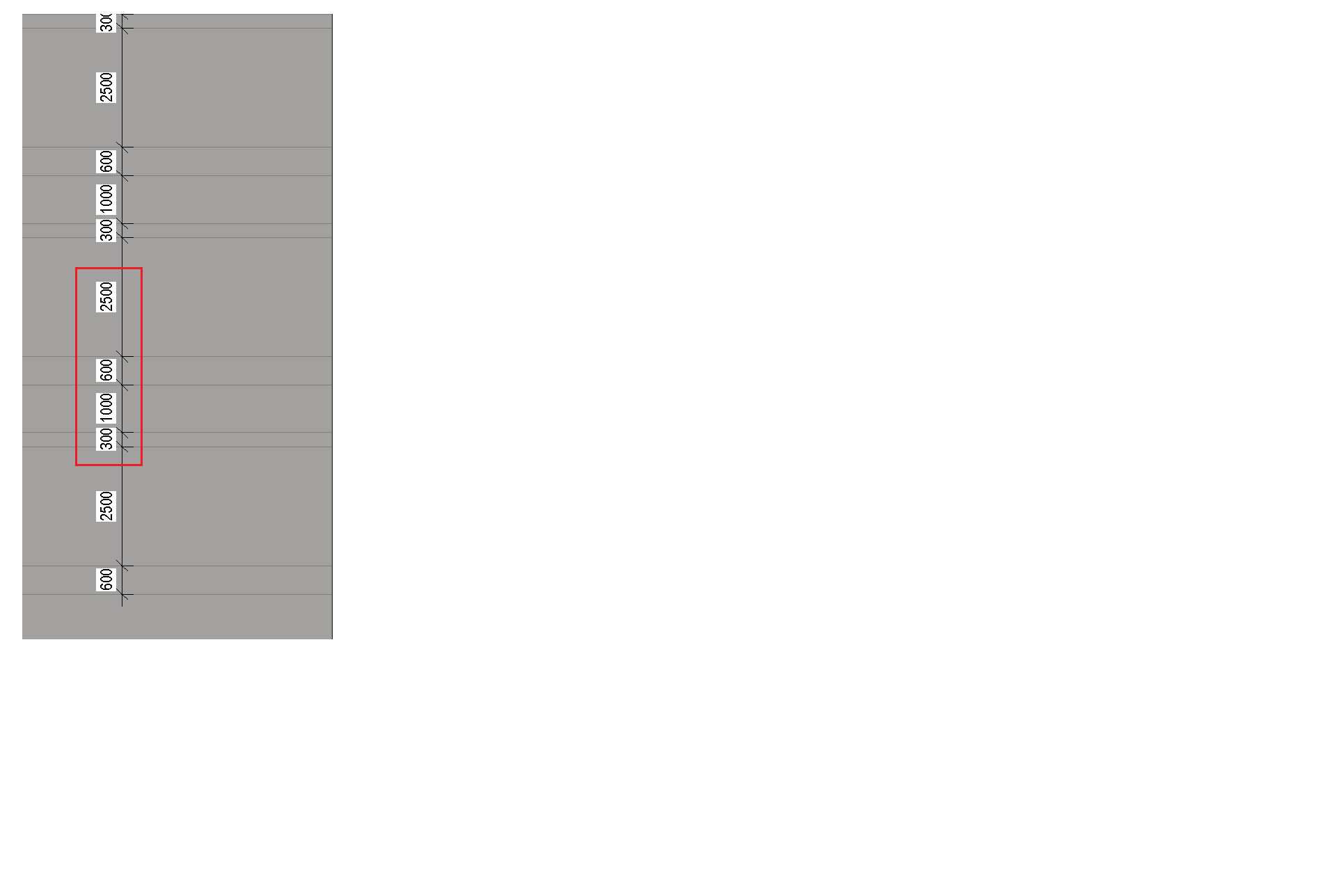

How can i create a .pat file for a continuous horizontal line with a varying distances. please sea the attached image.
Thanks in advance.
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Jan 27, 2004
80 Posts
 |
Add the varying distances to determine the lift between repetitions:
300+1000+600+2500 = 4400.
Lay off the unbounded horizontal lines at their respective heights above datum as follows:
;%VERSION=3.0
;%UNITS=MM
-------------------------------------------------------------------------------
; Written by HatchKit 2013 Hatch Pattern Editor
; HatchKit 2013 Hatch Pattern Editor(c) Cadro Pty Ltd 1990-2013
; www.hatchkit.com.au/
;-------------------------------------------------------------------------------
*HORIZONTAL
;%TYPE=MODEL
0,0,0,0,4400
0,0,300,0,4400
0,0,1300,0,4400
0,0,1900,0,4400
-----------------------------------
Hugh Adamson
www.hatchkit.com.au |
This user is offline |
View Website
|
|
|
active
Joined: Wed, May 29, 2013
10 Posts
No Rating |
Thanks alot for your qiuck responce. Its working well.
|
This user is offline |
|
|
|
