Forums >> Revit Building >> Technical Support >> Window family doesn't cut properly in plan

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Aug 13, 2013 at 8:31:49 PM | Window family doesn't cut properly in plan

#1

jvaldez0310


active

Joined: Tue, Jul 9, 2013
2 Posts
No Rating


I have a custom window that works just fine in my model except that it doesn't cut in plan.  I've read through similar threads addressing the reference level, view range, and Shared checkbox but my window continues to only display the top of the frame and not a section through the window.

The attached images show

-Window as it appears in the reference level under the family editor

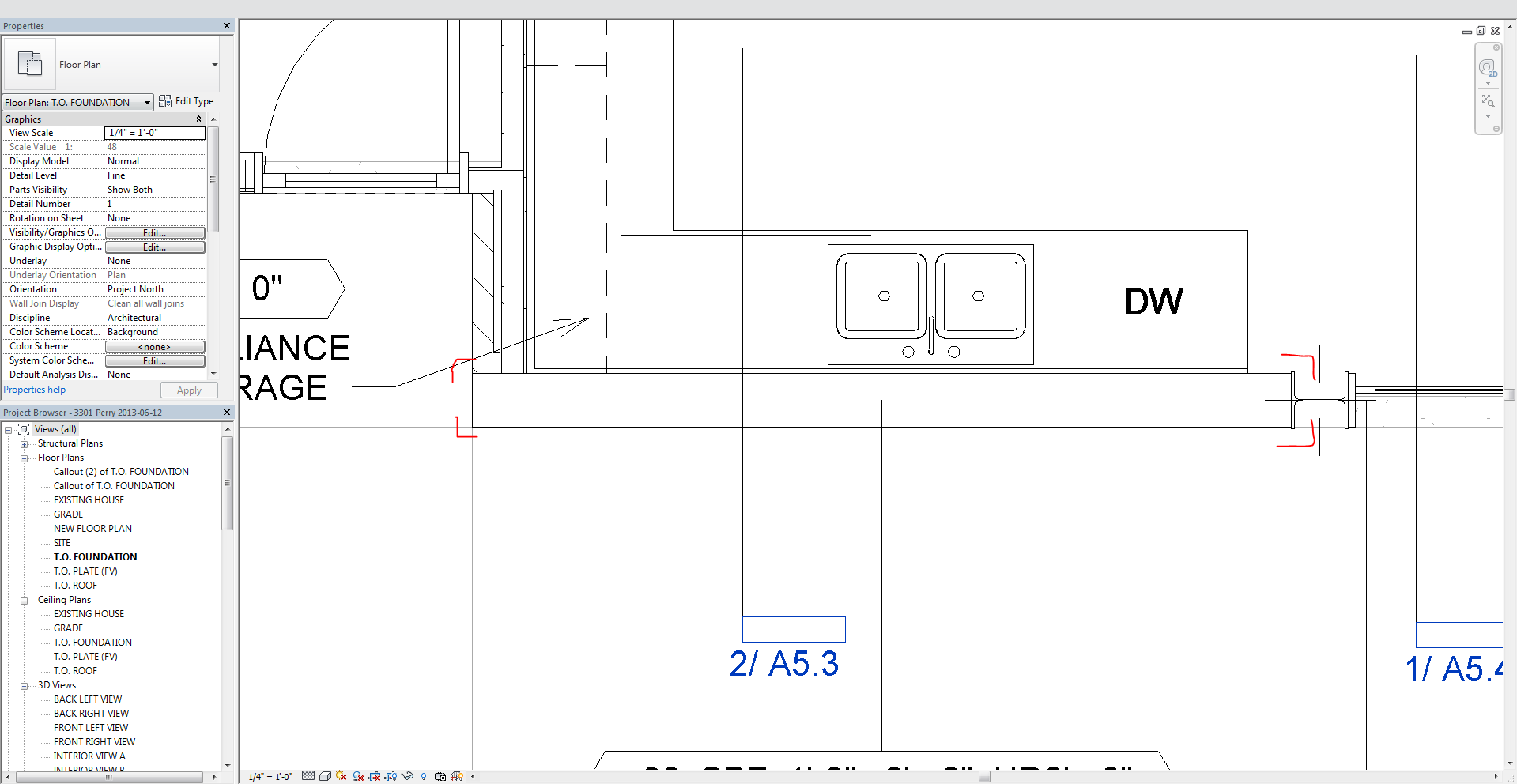

-Window as it appears in my plan

-3d view of model for context



Attached Images

123136_Revit_city_thread3.PNG123136_Revit_city_thread_2.PNG123136_Revit_city_thread_4.PNG

This user is offline



Tue, Aug 13, 2013 at 8:36:45 PM | Window family doesn't cut properly in plan

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


Let us look at the family.


This user is offline



Tue, Aug 13, 2013 at 9:11:30 PM | Window family doesn't cut properly in plan

#3

jvaldez0310


active

Joined: Tue, Jul 9, 2013
2 Posts
No Rating




This user is offline



Wed, Aug 14, 2013 at 11:55:42 AM | Window family doesn't cut properly in plan

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


I have several comments about your family.



Why didn't you use the built-in opening cut instead of the void extrusion?  If you have only one cut required, the opening cut is a better solution.



Th item causing your visibility problems is the head extrusion.  You have that set to show in plan/rcp.  Turn that switch off.



And finally, you should control your window using reference planes, including horizontal ones at sill and head, then add your parametic dimensions to those planes.



You can learn more about better family building practices by downloading the "Families guide from the autodesk site:

http://images.autodesk.com/adsk/files/rac_families_guide_documents_i.zip




This user is offline
