Forums >> Revit Building >> Technical Support >> Walkthrough showing semi transparent lines and surfaces!??

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Aug 12, 2013 at 5:12:52 PM | Walkthrough showing semi transparent lines and surfaces!??

#1

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


Hi There

I am stock with a problem I have never experienced before, where my walkthrough views (and ONLY my walkthrough views), get messed up, the minute I turn on shadows.

What happens is that everything look like it is supposed to do, but when I turn on shadows to do the rendering, the model starts to show with transparent elements and lines that are shown through the massive walls and roofs! I plan on doing the animation in hiddenline or shaded render, so this really matters a BIG deal! I have tried everything: (Changed every setting regarding light and shadows I could possibly think of, tried turning hardware acc off and soforth)... and must admit that I have pretty much given up by now! :-/

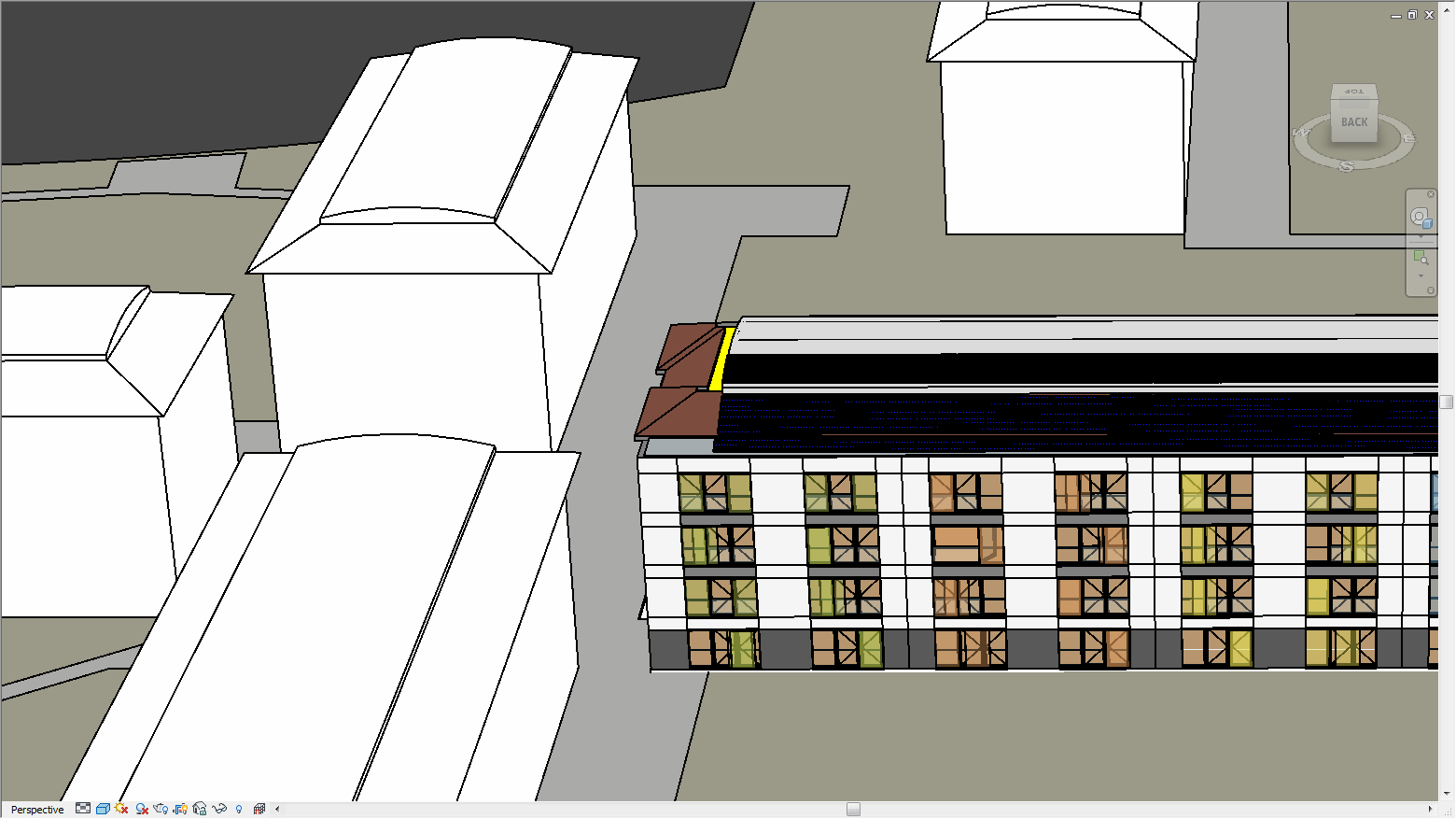

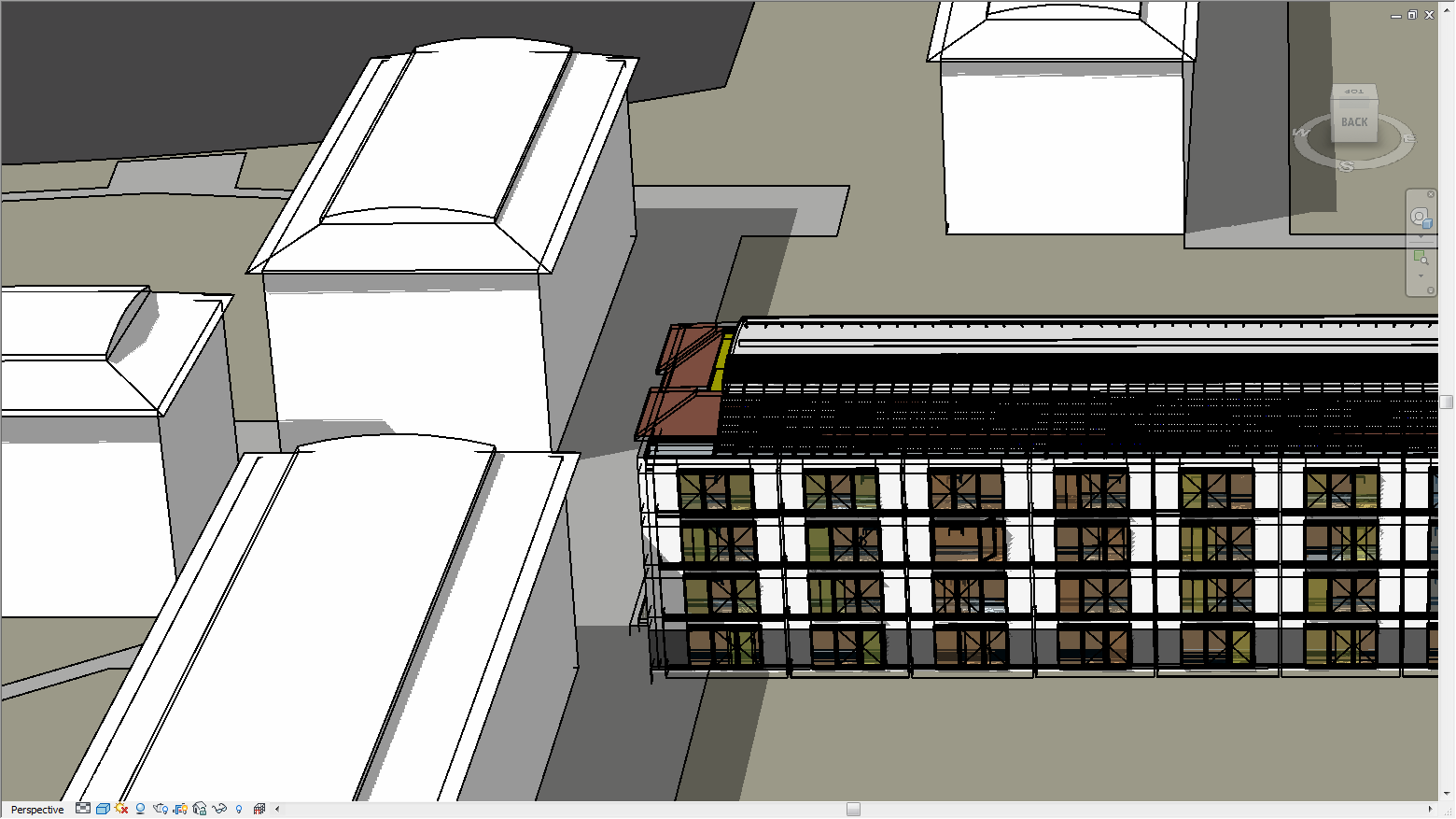

I have attached a screendump of before and after I turn on shadows...

Anyone with an idea of what is going on!?? Or suggestions of what to do!?? Would be greatly appreciated!!



Info:I work in Windows XP, Revit 2013, with latest patches and latest updates to graphic card drivers.



Edited on: Mon, Aug 12, 2013 at 12:44:28 PM

Attached Images


This user is offline

View Website

Wed, Aug 14, 2013 at 3:28:08 PM | Walkthrough showing semi transparent lines and surfaces!??

#2

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


Really... no one else!?? Am I the only one that has experienced this problem!??


This user is offline

View Website

Wed, Aug 14, 2013 at 3:46:34 PM | Walkthrough showing semi transparent lines and surfaces!??

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes


Last Revit update number?

System specifications?

What are your Graphic mode settings under the Revit R pulldown?


This user is offline



Thu, Aug 15, 2013 at 11:39:06 AM | Walkthrough showing semi transparent lines and surfaces!??

#4

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


Hi WWHub

Again... I really appreciate any help I can get! I am getting pretty desperate regarding my deadline, that is approaching quickly, and I have now actually turned to finding other ways of doing a walkthrough from my Revit model, since things are behaving as they are with regards to this problem here... But I haven't yet found a functional other way/plugin/software, where I can portrait my model in a flyover/walkthough, as a hiddenline or cardbox model, so I realy hope someone has a way of solving this issue, so I can do my simple flyover in Revit as allways!!

Answers:

Last Revit Update Number:Update Release 3

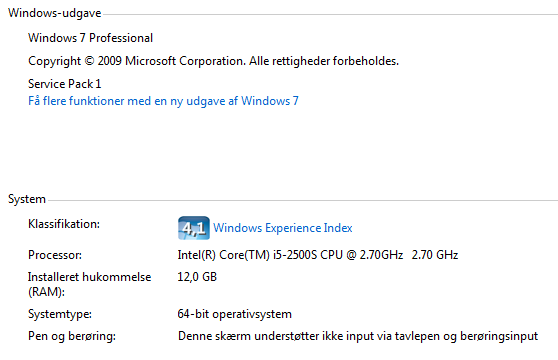

System specifications:See attached screendump! (Graphic card: AMD Radeon HD 6770M)

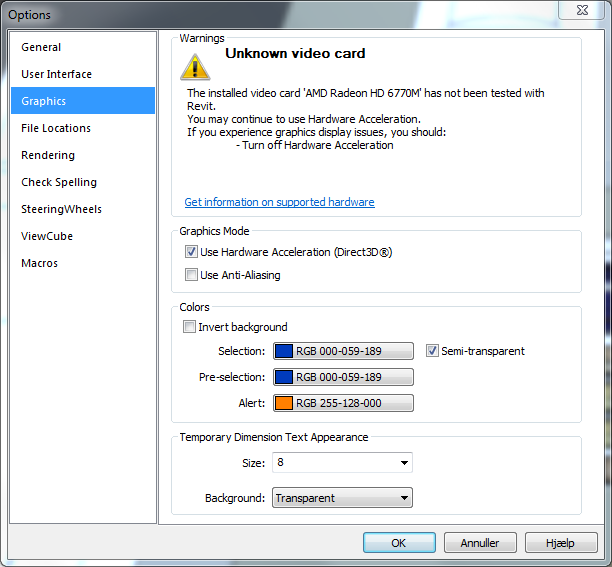

Graphic mode settings:See attached screendump!

If there's anything more info I can give you, that might shed som light on things here, please let me know!!!

And thanks again!!!!



Attached Images


This user is offline

View Website

Thu, Aug 15, 2013 at 11:41:13 AM | Walkthrough showing semi transparent lines and surfaces!??

#5

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


Ohhhh yeah... and btw, we have tried opening this file on other computers, and the issue exists no matter where we open the file!!


This user is offline

View Website

Thu, Aug 15, 2013 at 4:05:27 PM | Walkthrough showing semi transparent lines and surfaces!??

#6

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


do you have any cad plans linked into your model? often times the proxy objects within a dwg file will cause such an affect. if so, just try unloading the dwg files and attempt the walkthrough.


This user is offline

View Website

Thu, Aug 15, 2013 at 5:23:35 PM | Walkthrough showing semi transparent lines and surfaces!??

#7

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


Very good suggestion! I know for a fact that linked files in general can cause visual disturbance in the viweport, and I hadn't actually chechked to see if there was any left in the project!

Unfortunately, I haven't got any linked files at all left in this model! :-/


This user is offline

View Website

Thu, Aug 15, 2013 at 6:24:32 PM | Walkthrough showing semi transparent lines and surfaces!??

#8

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes


ohhh... try turning off hardware acceleration.


This user is offline

View Website

Thu, Aug 15, 2013 at 9:28:33 PM | Walkthrough showing semi transparent lines and surfaces!??

#9

arkoh


active

Joined: Thu, Sep 20, 2007
28 Posts
No Rating


I've tried that... doesn't help! :-/


This user is offline

View Website
