Hi, I'm trying to make view titles that will match as closely as possible to our office standard Autocad titles. The Autocad titles have three different font sizes, a large font "View Number", a middle sized font "View Name", and a small font for "View Scale."

I seem to be running into some difficulty when changing the font size for each variable; the font size seems to be controlled globally for the entire view title.

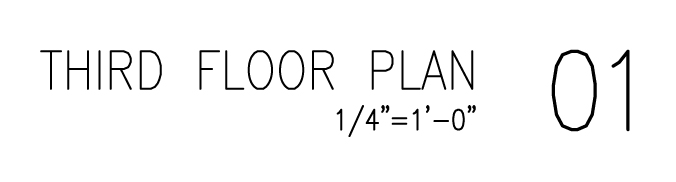

What we are trying to achieve can best be seen in the included attachement.

Thanks for any help!

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

The font sizes are controlled by the family.  Edit the view title family.

This user is offline

Shatner86

active

Joined: Fri, Feb 24, 2012
2 Posts

Hi Trifid,

Not sure I'm fully understanding but I'll explain what we did to achieve what your after. In our office we changed the View Title.rfa to include new Labels. With these Labels you can change their positions, font sizes and styles independently to each other. You can also assign a sample text so people know what it is.

The choice of parameters available to be assigned to a Label appear to be hardwired by Revit, as stated in the linked from Revitforum, however looking at your image I'd say your looking at 'View Name', 'View Scale' and 'Detail Number'

This is probably not the greatest answer but hopefully it'll point you in the right direction. All the best.

Regards,

Shatner86http://www.revitforum.org/architecture-family-creation/3040-creating-custom-view-title.html

-----------------------------------

"Try not to become a man of success, but rather to become a man of value"

-Albert Einstein

This user is offline

trifid

active

Joined: Thu, Aug 8, 2013
2 Posts
No Rating

Thanks everyone, Labels in the family editor did it!
