Forums >> Revit Building >> Technical Support >> Circular hut-type roofs

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Feb 9, 2006 at 7:56:04 AM | Circular hut-type roofs

#1

amberjo


active

Joined: Thu, Feb 9, 2006
1 Posts
No Rating


Circular hut-like roofs--can anyone tell me how to make them? Thanks, Amber

This user is offline



Thu, Feb 9, 2006 at 8:37:30 AM | RE: Circular hut-type roofs

#2

jobcaptain


active
jobcaptain Avatar

Joined: Wed, Oct 6, 2004
42 Posts
1 Stars: 2 Votes


use the roof command > by footprint select the lines feature > use a circle once the circle is created (stay in sketch mode) pick the circle you just created. pick properties and set the number of full segments to "0" (zero) finish the sketch > you now have a round hut roof. Cheers!

-----------------------------------

LinkedIn Profile:

  • http://www.linkedin.com/in/danielhughes1/

I author Bradley BIM Blog: http://bradleybim.com

This user is offline

View Website

Thu, Feb 9, 2006 at 8:42:06 AM | RE: Circular hut-type roofs

#3

SuryaRamesh


active

Joined: Sat, Jan 21, 2006
10 Posts
1 Stars: 1 Votes

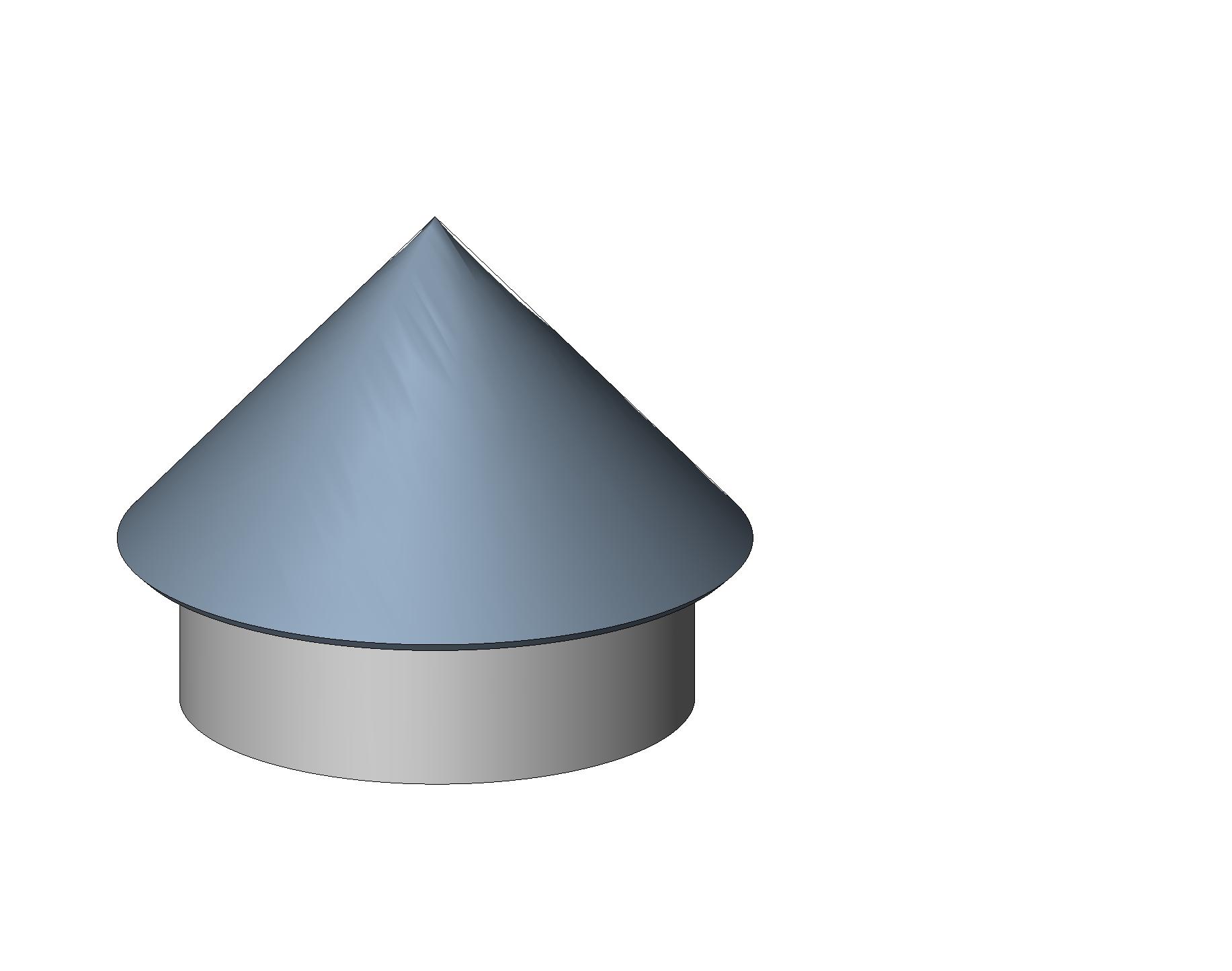

First,create the circular wall with walls-sketch-circle. now you build another straight wall joining two opposite quadrant points of the circular wall.draw a section nside so that you'll get this straight wall in head on elevation.go to the section view.now create family-roofs-solid-revolve.when you are in sketch mode , pick the straight wall as your plane.give the axis at the center,profile will be a sloping double line with the top end toucing the apex of the roof and bottom end toching the end of the slab. finish the sketch..that's it.

Attached Images


This user is offline
