Forums >> Revit Building >> Technical Support >> Detail Bubble Callout Options?

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jul 3, 2013 at 4:20:37 PM | Detail Bubble Callout Options?

#1

West1977


active

Joined: Mon, Apr 8, 2013
26 Posts
5 Stars: 1 Votes


Hello all,

I'm sure I'm overlooking this in the help section but...

When creating lets say an enlarged plan such as restrooms from a floor plan. Is there a way to not show the detail bubble callout and instead call out a note such as "See enlarged plan this sheet"  ?

Thanks in advance!



Revit 2014



Edited on: Wed, Jul 3, 2013 at 11:24:56 AM

This user is offline



Wed, Jul 3, 2013 at 4:37:02 PM | Detail Bubble Callout Options?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


You can hide the entire callout....

You could probably create a callout tag that is void.


This user is offline



Wed, Jul 3, 2013 at 4:51:50 PM | Detail Bubble Callout Options?

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


I opened the regular Callout Head Family, erased all the parameters and linework and just added in regular text (not a label).



Then saved the family with a new name.



Loaded it into the project.



Went under Manage > Additional Settings > Callout Tags. Then Duplicated this Tag Type, renamed it and then spcified the newly loaded Callout Head as the Value for the Callout head parameter.



Then you have to click on the callout border > Edit Type > Duplicate > Rename. Then For the Callout Tag parameter specify the new Callout Head that you created a bove.



Becasue of the way the leader lines work i made mine Left justified so the tag always has to be on the Right. So you would need a Left and Right version of this tag to be fully flexible.



Here's the Tag family I made and see attached image.



Here is the Project File from the attached image.



Edited on: Wed, Jul 3, 2013 at 11:54:52 AM

Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Wed, Jul 3, 2013 at 8:13:44 PM | Detail Bubble Callout Options?

#4

West1977


active

Joined: Mon, Apr 8, 2013
26 Posts
5 Stars: 1 Votes


thanks for the help dgcad as well as your suggestion WWHub.

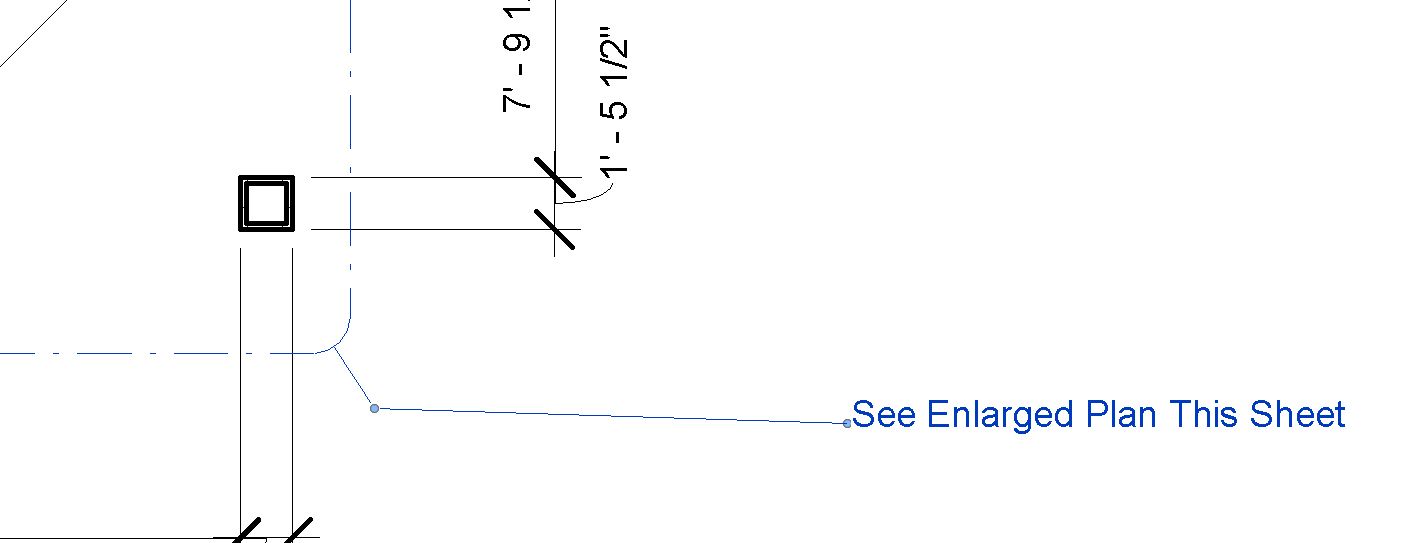

dgcad that worked perfect with your walk through only somehow I've gotten one setting off somewhere.  Any idea why it's placing my text so far away?  Even if I highlight it and try to move it with the grips it keeps the leader line the same distance.  Please see the attached example.  Sorry for my unexperience.









Attached Images


This user is offline



Wed, Jul 3, 2013 at 8:17:40 PM | Detail Bubble Callout Options?

#5

West1977


active

Joined: Mon, Apr 8, 2013
26 Posts
5 Stars: 1 Votes


strike that.  Think I got it, it was just wiggin' out or something.  It's adjusting fine since I deleted callout view and started over and replaced it.



Thanks dude!


This user is offline



Thu, Aug 13, 2015 at 5:53:31 PM | Detail Bubble Callout Options?

#6

pamoroso


active
pamoroso Avatar

Joined: Mon, Oct 1, 2007
65 Posts
3.5 Stars: 3 Votes


Is there a way to get the leader line on the right side of the text? Its only pinned to the left?


-----------------------------------





This user is offline



Thu, Aug 13, 2015 at 8:54:17 PM | Detail Bubble Callout Options?

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


Click on the callout, grab the center blue node and drag it around.


This user is offline
