Forums >> Revit Structure >> Technical Support >> Vertical and horizontal bracing connections

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jun 21, 2013 at 7:13:32 AM | Vertical and horizontal bracing connections

#1

caddeva


active

Joined: Fri, Sep 14, 2007
29 Posts
No Rating


Hi,

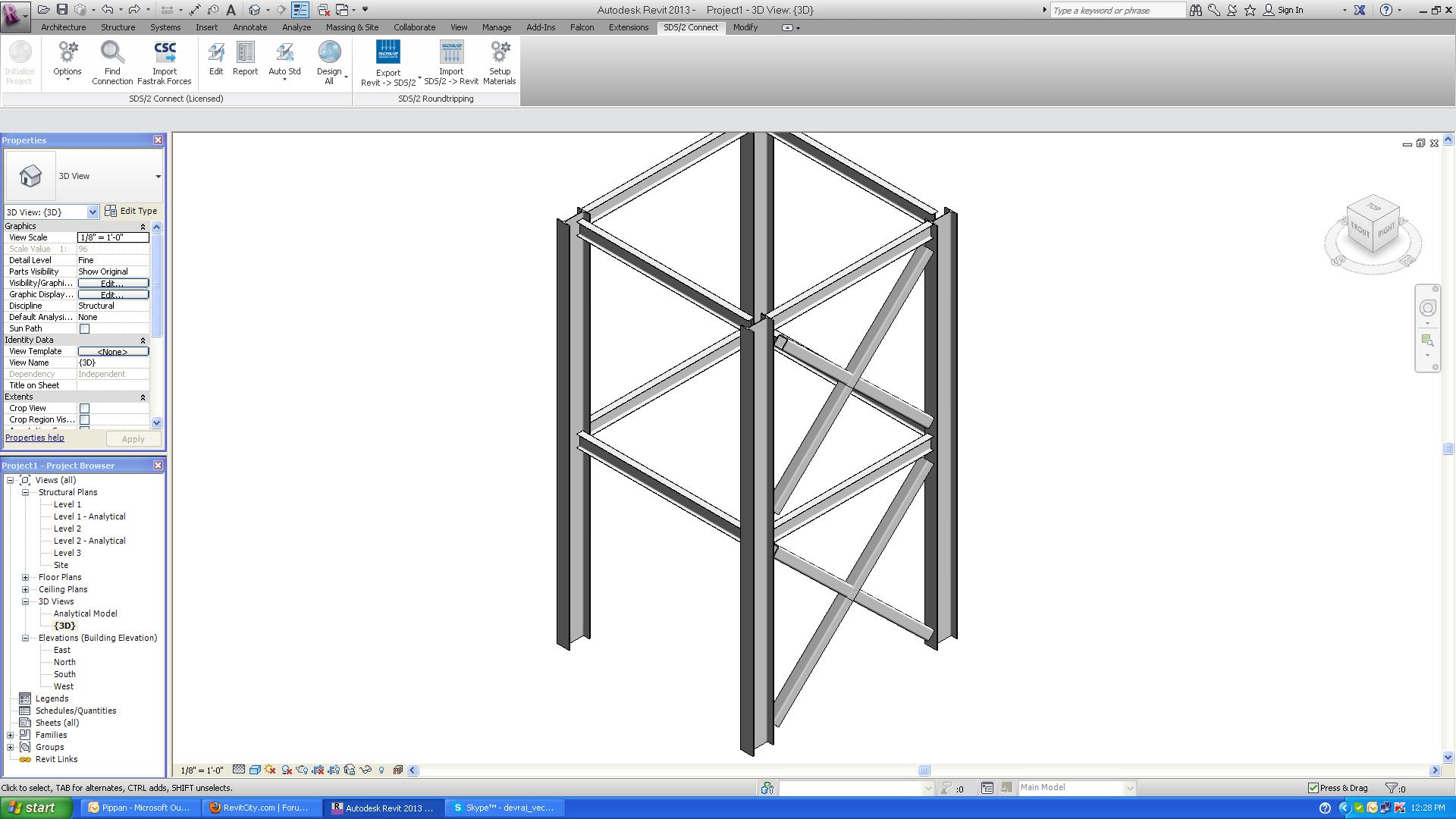

i am having trouble with Vertical and horizontal bracing connections in revit structures 2013. i have been working on plugin SDS/2 connect too..please see the attached file for your better understanding....



Attached Images


This user is offline



Fri, Jun 21, 2013 at 12:45:53 PM | Vertical and horizontal bracing connections

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


This post and image tells us that you have a problem but tells us nothing about what the problem is


This user is offline

View Website

Fri, Jun 21, 2013 at 2:20:33 PM | Vertical and horizontal bracing connections

#3

caddeva


active

Joined: Fri, Sep 14, 2007
29 Posts
No Rating

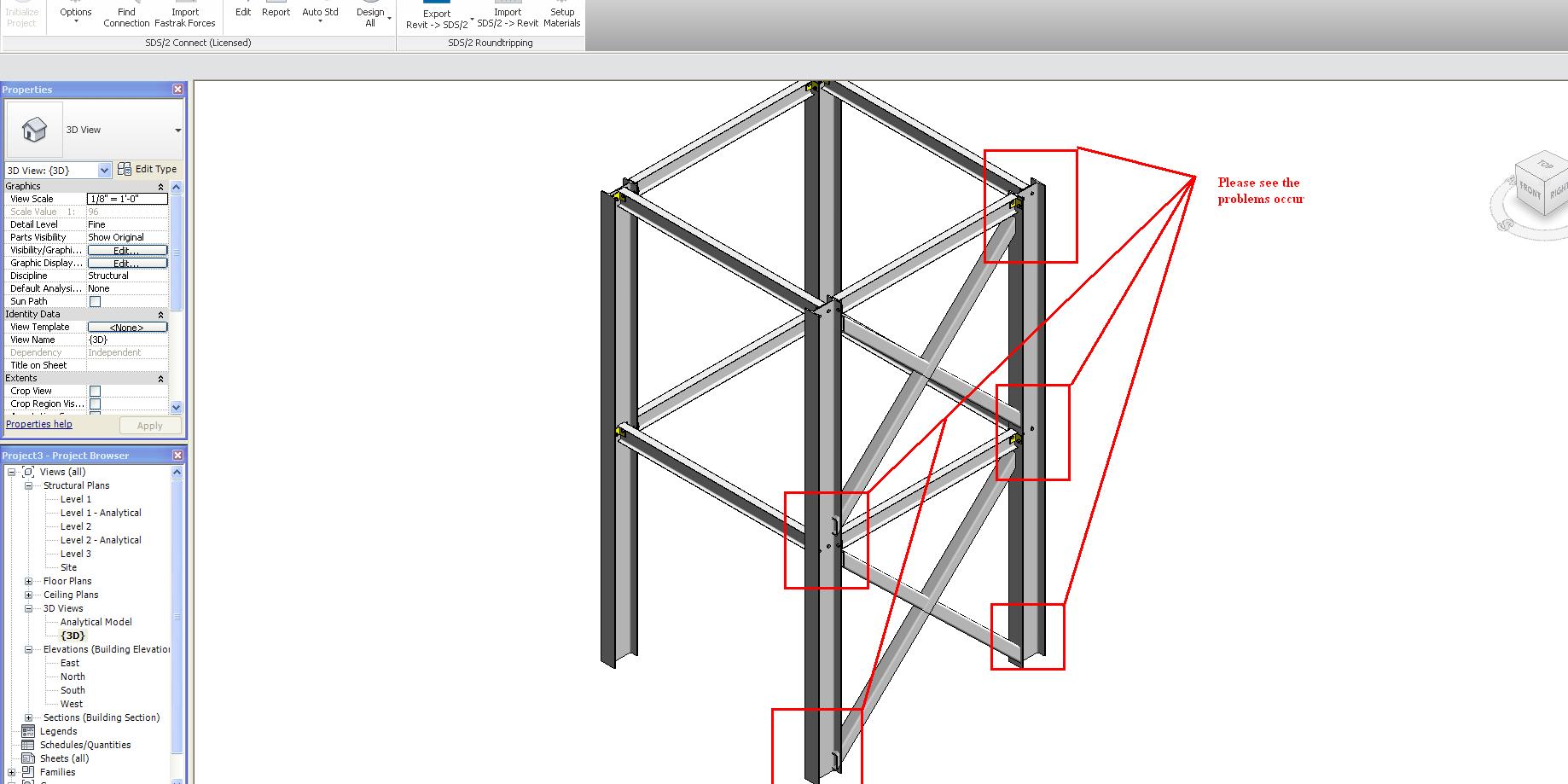

Sorry.... my Bad.... please see the updated one...



Attached Images


This user is offline



Fri, Jun 21, 2013 at 2:31:33 PM | Vertical and horizontal bracing connections

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes

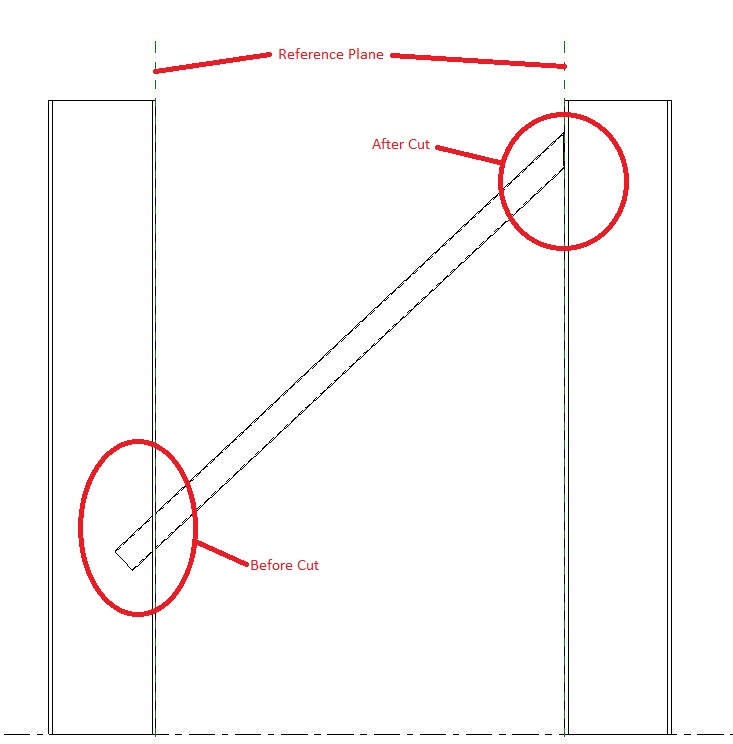

Did you place your bracing using the Brace command?  If so place a Reference Plan in elevation and use the Cut command then select the Brace then the Reference Plan and it will cut it to the Column.



Attached Images


This user is offline

View Website

Mon, Jun 24, 2013 at 6:32:16 AM | Vertical and horizontal bracing connections

#5

caddeva


active

Joined: Fri, Sep 14, 2007
29 Posts
No Rating


Thanks for your reply.but i need only V/H bracing connections in SDS/2 (plugin) connect


This user is offline



Mon, Jun 24, 2013 at 12:18:38 PM | Vertical and horizontal bracing connections

#6

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


If it is a problem with SDS you need to contact them for the information.


This user is offline

View Website
