Forums >> Revit Building >> Technical Support >> Wall Joins on Short Walls

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jun 12, 2013 at 1:33:51 PM | Wall Joins on Short Walls

#1

mfadel20


active

Joined: Mon, Mar 14, 2011
21 Posts
No Rating

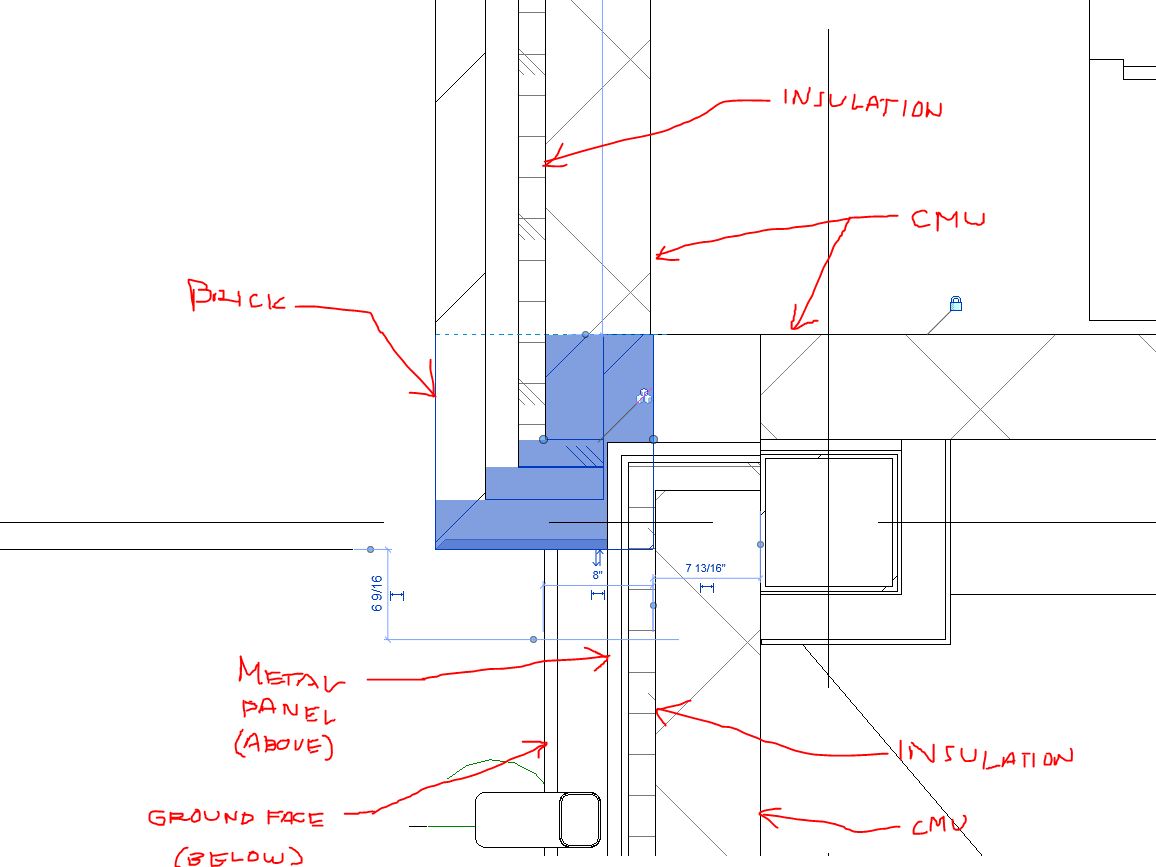

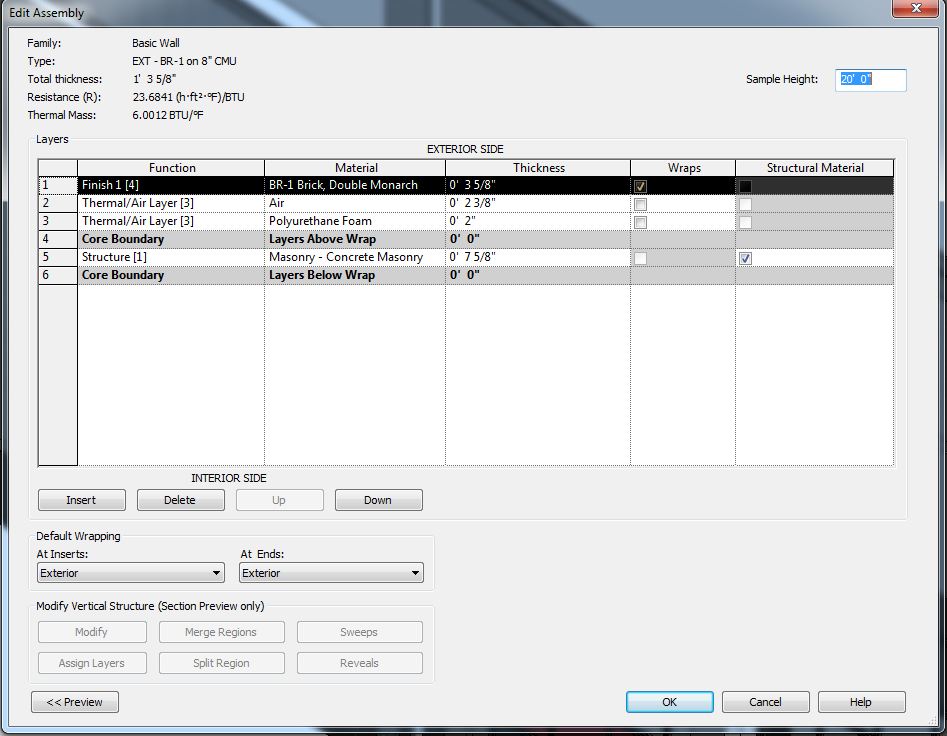

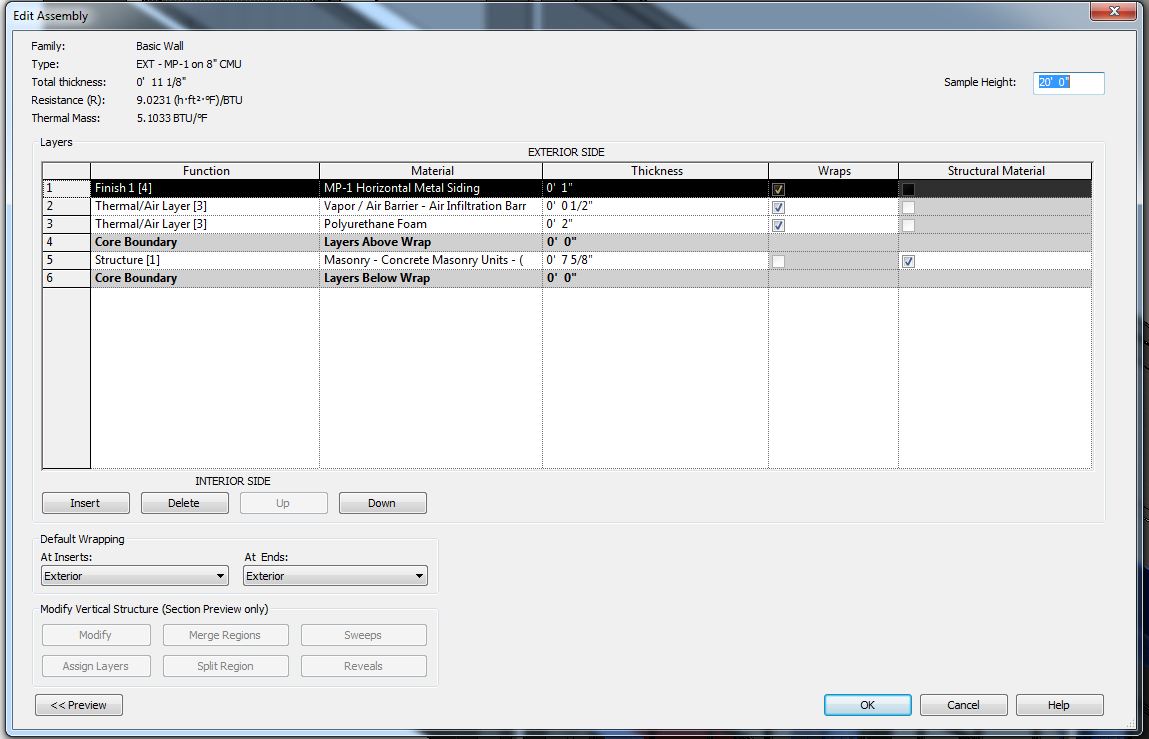

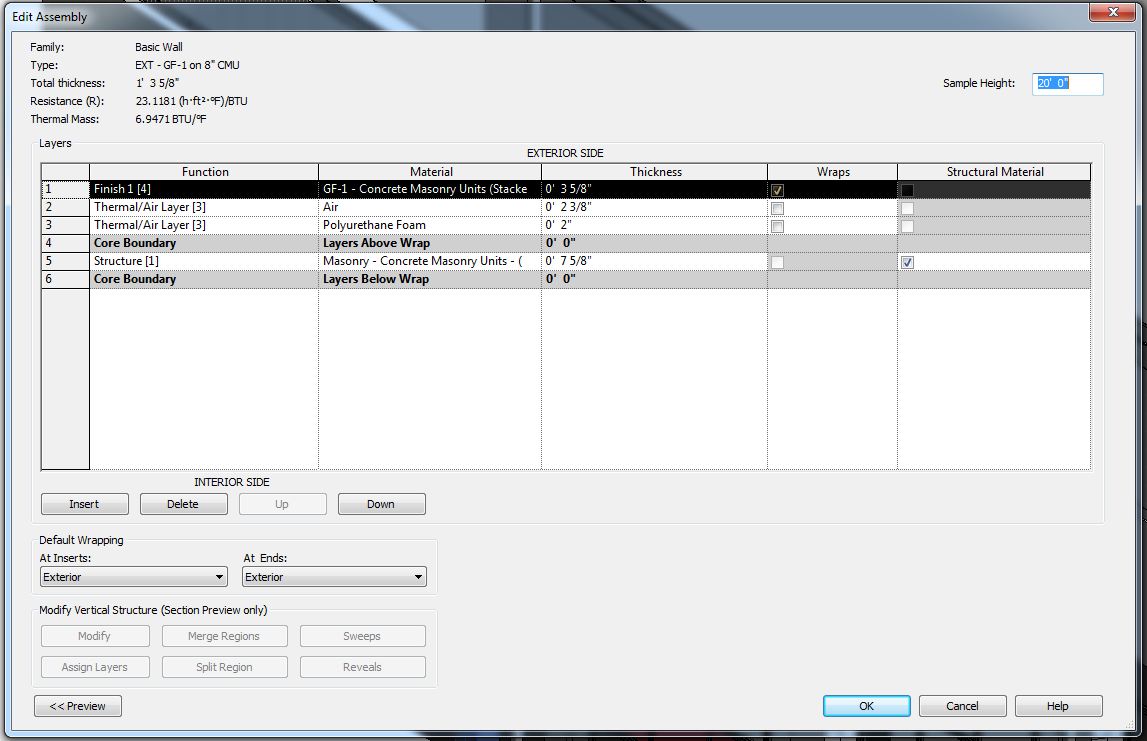

Hi, I'm working with 2013 and am curious to know how to have my walls clean up when there is only a slight shift (8") in the wall?  I'm currently showing a third wall (highlighted in blue) that creates the jog, but as 4 walls are coming together, no amount of join conditioning or grip-pulling seems to resolve the issue.  I am curious to know if it has something to do with the wall make-up which is why I've attached a few screen shots of the walls in question.  Any thoughts/guidance/help is of course appreciated!



Attached Images

121029_Wall_Joins_01.JPG121029_Wall_Joins_02.JPG121029_Wall_Joins_03.JPG121029_Wall_Joins_04.JPG121029_Wall_Joins_05.JPG

This user is offline



Wed, Jun 12, 2013 at 1:42:22 PM | Wall Joins on Short Walls

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 348 Votes


Short returns are always a problem.

I would try turning off the wall join for the wall on the right. (Blue grip button for that wall - turn off join)


This user is offline



Wed, Jun 12, 2013 at 5:05:57 PM | Wall Joins on Short Walls

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


That's a pretty busy intersection with some short wall segments. I wouldn't get my hopes up on organically having REVIT clean this up without a little tweaking, 'edit cut profile', masking and disallowing joins, also 'corner joins' butt vs miter.


-----------------------------------

.
