Hi,I have a ramp that is an ADA accessible ramp complete with flat landings. I'd like to make a simple gable roof that follows this ramp and maintains a constant ridge height from the ramp in section. IE wherever I cut the ramp in section, the roof looks the same. I thought an in place sweep of type roof would be the way to go, but it seems you can't select the edges of ramps. Anybody ever try this? Is there a way to make a simple gable and rotate it in elevation or something? Seems such a simple idea and very basic type of construction, but very difficult to figure out how to model it in Revit. I'm using Revit 2013.Thanks.-eric


This user is offline



Tue, Jun 11, 2013 at 8:30:28 PM | Roof over ramps - Roofing with a variable work plane

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Create a reference planeat the same angle as the ramp offset to the height you need and create an in place extrusion. Or a sweep if you need it to slope and go flat at the landings


This user is offline

View Website

Wed, Jun 19, 2013 at 2:49:06 PM | Roof over ramps - Roofing with a variable work plane

#3

Spletz


active

Joined: Tue, Sep 16, 2008
6 Posts
No Rating


That would be fine and good, but it's of course and ADA ramp with many flat areas, so short of creating a different roof for each stretch, that won't work either.  Seems like a real shortcoming in the roofs tool.


This user is offline



Wed, Jun 19, 2013 at 3:20:23 PM | Roof over ramps - Roofing with a variable work plane

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


"Seems like a real shortcoming in the roofs tool"

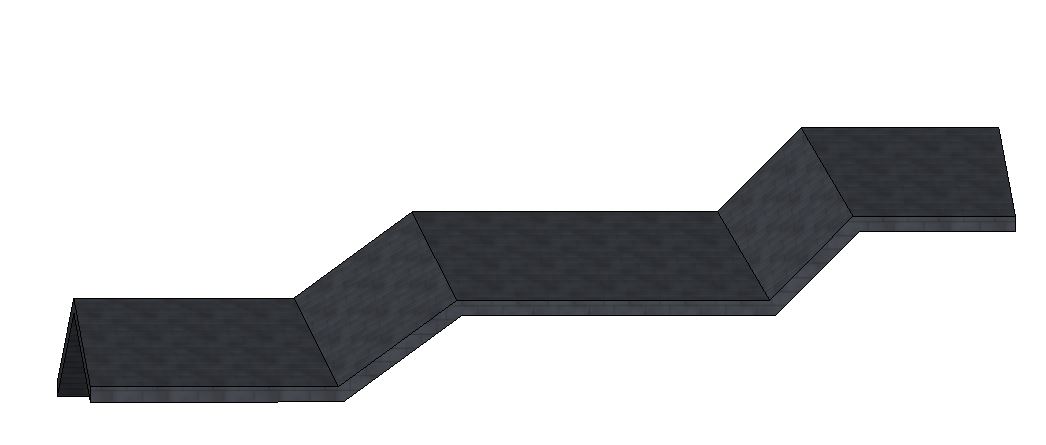

This isn't exactly a conventional roof so I don't really find it a shortcoming.  You can easily create a model in-place component under the roof category to achieve what you need
