Forums >> Revit Building >> Technical Support >> Transparency of "air" layer

bfwe

active

Joined: Fri, Nov 12, 2010
2 Posts
No Rating

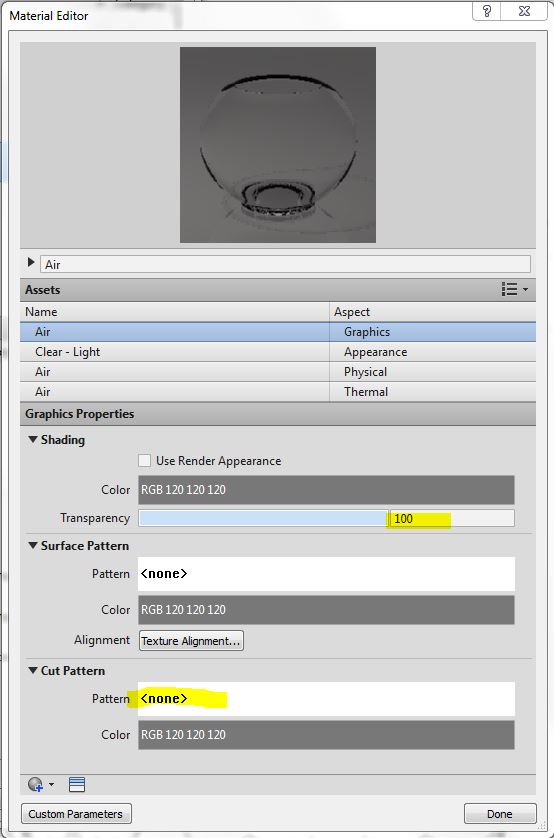

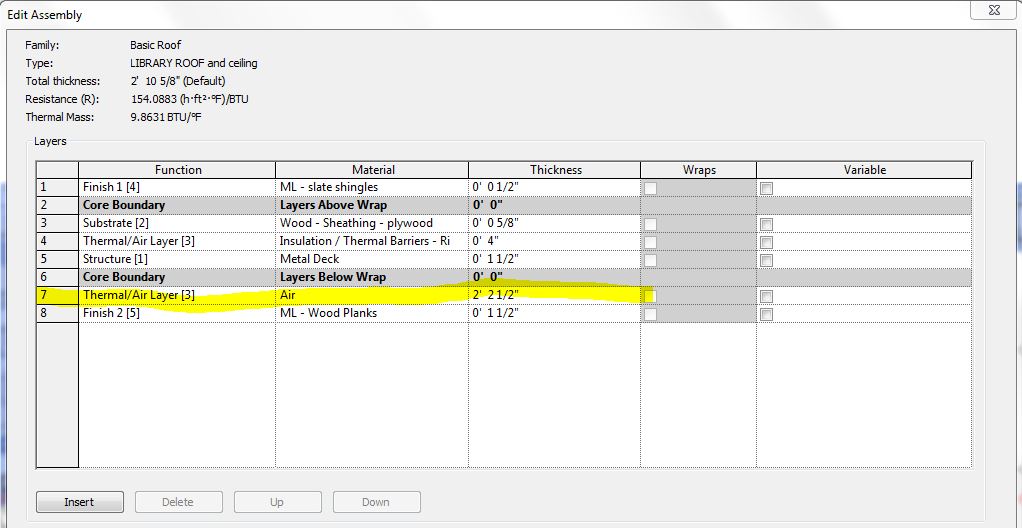

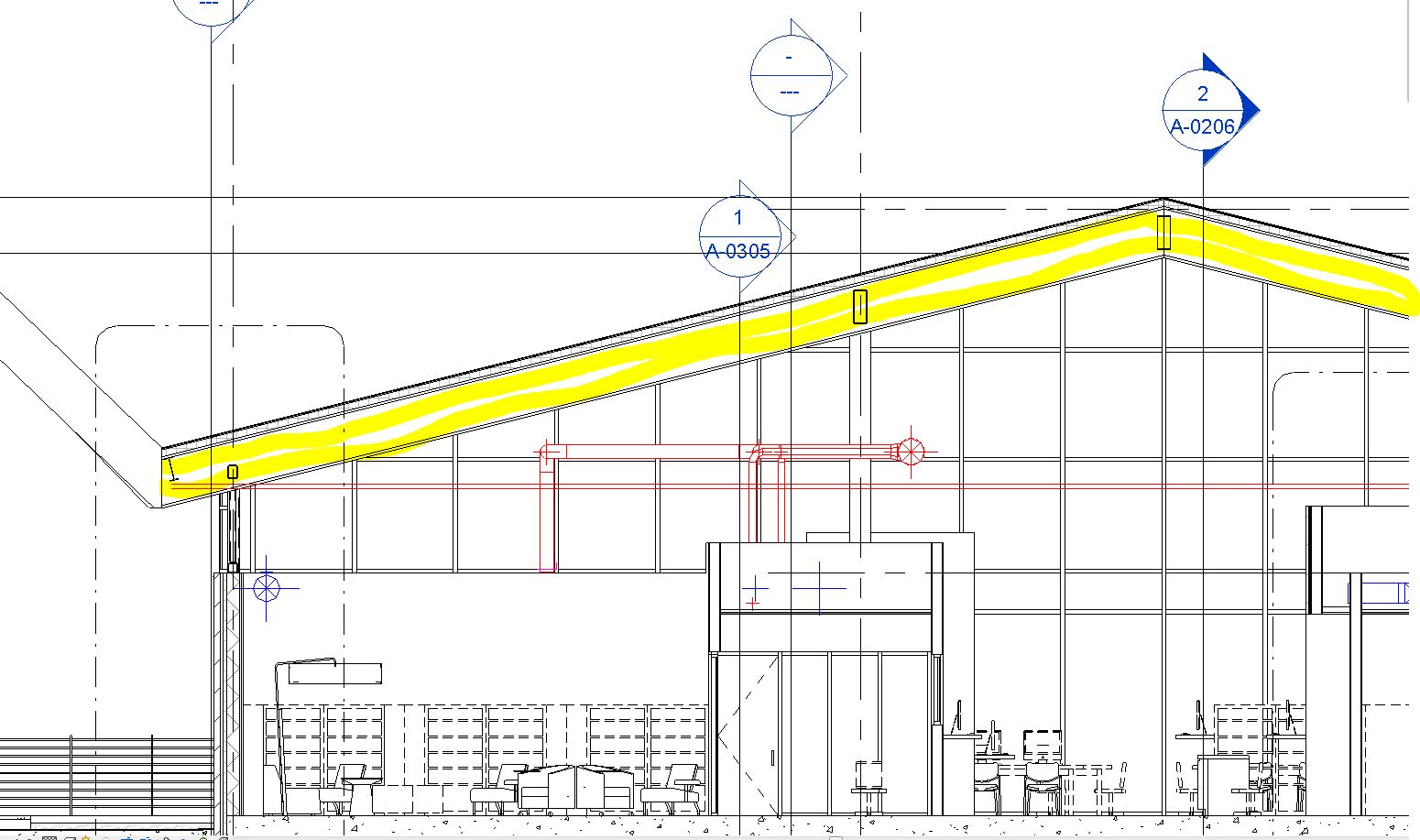

I have a roof section that includes a ceiling as part of the roof construction. (I know there are a lot of opinions about the whether or not you should do this, but this is really the only way I could get the model to work out.) My question is, how to I make the "air" layer transparent so that I can see the wide flange structural members supporting the steel deck. If you look at attached drawing 1, the steel beams should be shown in the yellow highlighted area. However, I can't get the air layer to not be opaque. Even if I change the material to 100% transparent, nothing changes. I've attached the roof construction box as well as the material editor. I'm not sure what I'm missing.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Did you try join?  You would have to do each element if this does work.

I don't understand why you included the ceiling.

This user is offline

bfwe

active

Joined: Fri, Nov 12, 2010
2 Posts
No Rating

No, I haven't tried join. I'm not sure what you mean by this.

The ceiling is part of the roof becasue the roof has lots of irregular slopes. The section I posted is through one of the simple areas so that I could illustratte the problem. I need a ceiling that follows these slopes and is always parallel to the roof deck. This got very tedious when the roof and ceiling were seperate. Does this make sense?
