Hi everyone,
Where would I post this?
I am a student and for class we need to create an axonometric wall section but with the layers of the walls stepped/pulled back to show each layer of material.
Is there a way to do this in Revit without rebuilding it and splitting every material?
Thanks
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
In Revit 2014 you can create displaced building views
http://wikihelp.autodesk.com/Revit/enu/2014/Help/0001-Revit_Us1/1481-Document1481/1550-3D_Views1550/1553-Creating1553
|
This user is offline |
View Website
|
|
|
active
Joined: Sun, May 12, 2013
4 Posts
No Rating |
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Parts and assemblies may be what you need:
http://www.youtube.com/watch?v=el0WRaghc5g&feature=youtu.be
|
This user is offline |
|
|
|
active
Joined: Sun, May 12, 2013
4 Posts
No Rating |

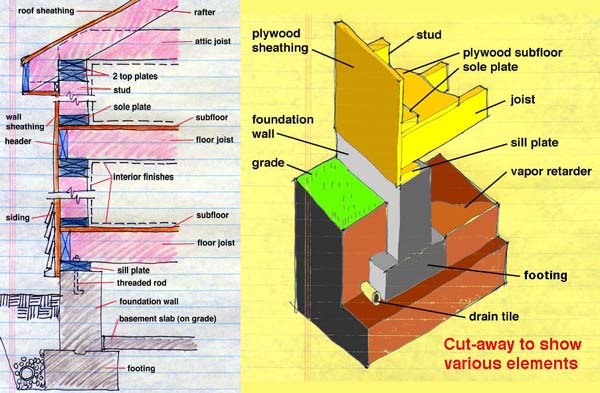

kind of like this, the way the grade is cut further back but I need to do it with each change in material.
|
This user is offline |
|
|
|
