Forums >> Revit Building >> Technical Support >> Sloped Roof Fascia

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 29, 2013 at 4:27:59 PM | Sloped Roof Fascia

#1

HP11


active

Joined: Mon, Jan 30, 2012
20 Posts
No Rating


*Using Revit 2012

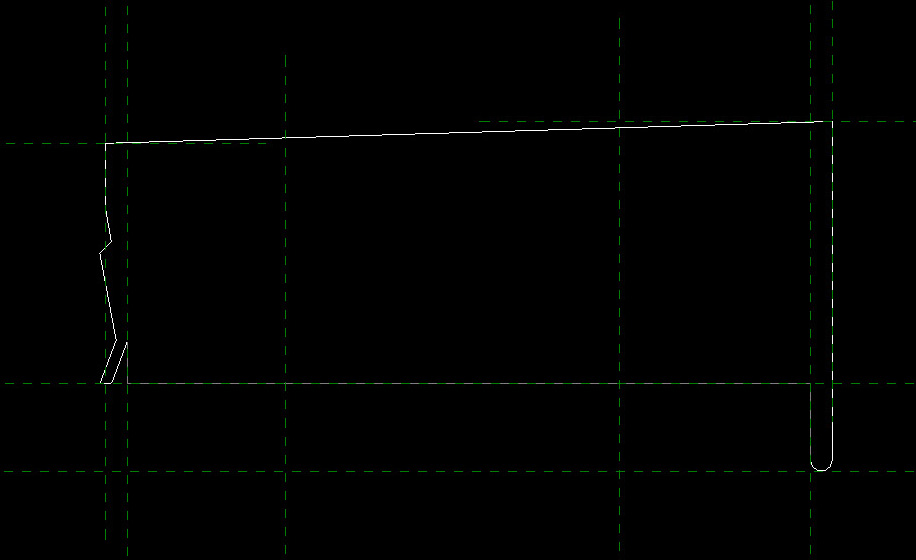

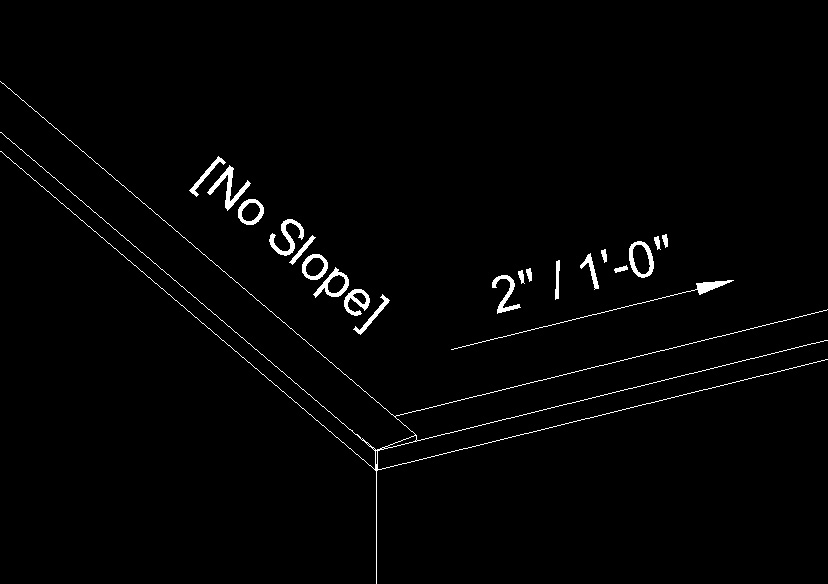

I am having trouble mitering a complex roof fascia (metal coping) at the corners of pitched roofs.  Attached are images of the fascia profile as well as the problem area.  I have seen some other threads on this issue but it appears that if the fascia is created in sequence the corners should automatically miter which they are not in my case.  Are there any other suggestions for how to fix this issue or reasons why this is not working properly?  Thanks!







Attached Images


This user is offline



Wed, May 29, 2013 at 5:10:20 PM | Sloped Roof Fascia

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


Can you attach the profile family so I can see if it works for me?


This user is offline

View Website

Wed, May 29, 2013 at 5:17:11 PM | Sloped Roof Fascia

#3

HP11


active

Joined: Mon, Jan 30, 2012
20 Posts
No Rating


File attached.  Thank you for looking into it.



This user is offline



Wed, May 29, 2013 at 6:23:20 PM | Sloped Roof Fascia

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 351 Votes


Your problem is caused by the angle between the roof edge and top.  That is not the same on the two edges - correct?

One side is 90 (the flat edge) and the other is angled.  That is why it will not miter correctly


This user is offline
