Forums >> Revit Systems >> Technical Support >> Problem with a rectangular section on an adaptive arch

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, May 17, 2013 at 4:39:57 PM | Problem with a rectangular section on an adaptive arch

#1

magiay


active

Joined: Fri, May 17, 2013
3 Posts
No Rating

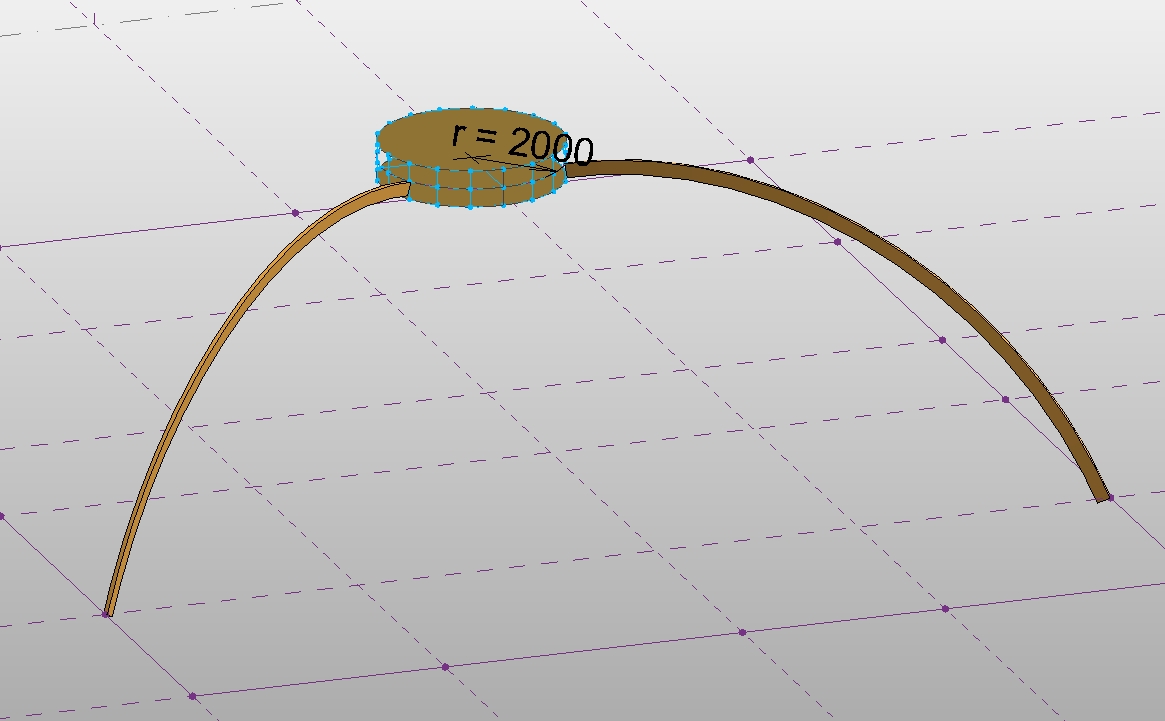

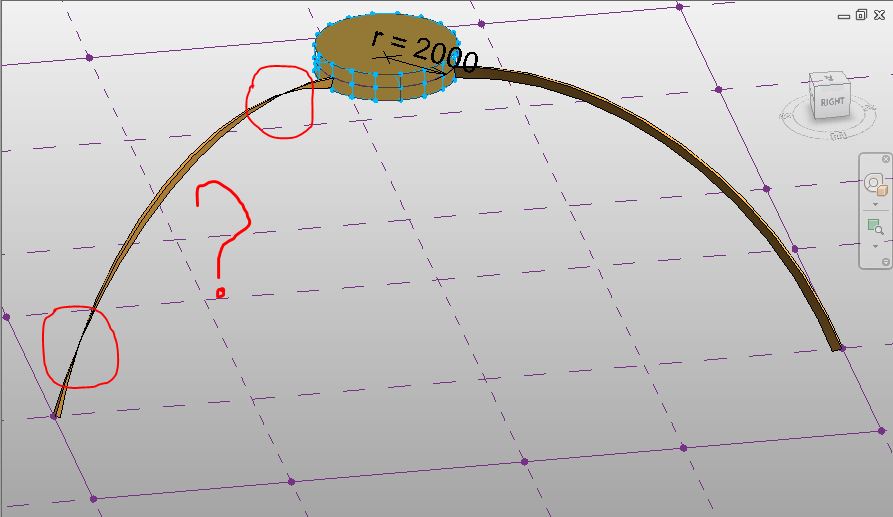

When I put a adaptive arch on a model the section is twisting, especially when I put it on the south side (picture). The orientation of the adaptive points is orthogonal on placement. Anyway, I tried every orientation for the adaptive points but in every cases the section was twisted or bended. What do I did wrong?



Attached Images


Attached Files

This user is offline



Fri, May 31, 2013 at 5:38:11 AM | Problem with a rectangular section on an adaptive arch

#2

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


making arch with 2 points is very tricky.. direction of the shape in sweep is hard to control in this case.(it rotated depends on the location of adoptive points)

i recommand make 3 or more points in conceptual mass for placing adaptive family and also in adaptive family.(dont make arch in adaptive family..)


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website

Tue, Jul 16, 2013 at 3:03:49 AM | Problem with a rectangular section on an adaptive arch

#3

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


i just found what was wrong..

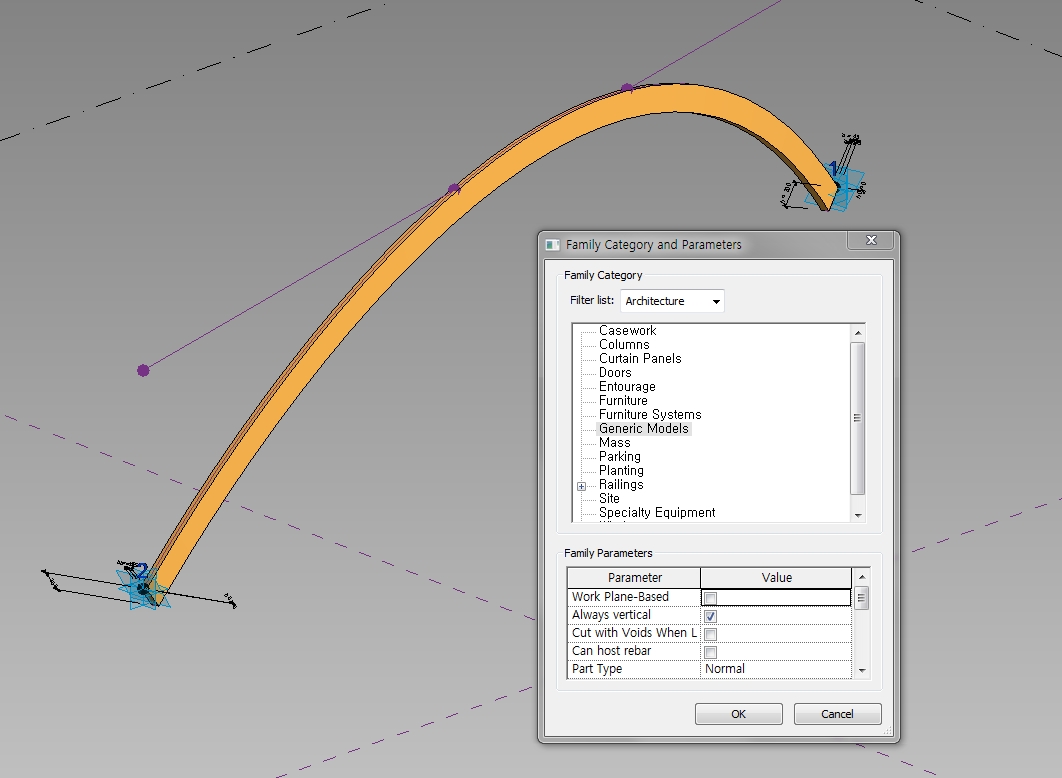

delete two profiles at the middle, and check family parameter 'always vertical)

see attatched images



hope not too late.



Edited on: Mon, Jul 15, 2013 at 10:04:45 PM

Attached Images


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website

Tue, Jul 16, 2013 at 1:50:32 PM | Problem with a rectangular section on an adaptive arch

#4

magiay


active

Joined: Fri, May 17, 2013
3 Posts
No Rating


I solve that problem in other way at that time (I just create some beams in the main project who are following a curve), but still... that was something that put me wonder, so...thank you for the solution!


This user is offline



Wed, Jul 17, 2013 at 12:21:17 AM | magiay

#5

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


Quoting magiay from 2013-07-16 08:50:32

"

I solve that problem in other way at that time (I just create some beams in the main project who are following a curve), but still... that was something that put me wonder, so...thank you for the solution!

"

thank YOU :-)

i got better understanding about adaptive components because of your question.


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website
