Fri, May 10, 2013 at 10:25:56 AM | 3D Swing parameter!! Help!!

#1

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Hi guys,

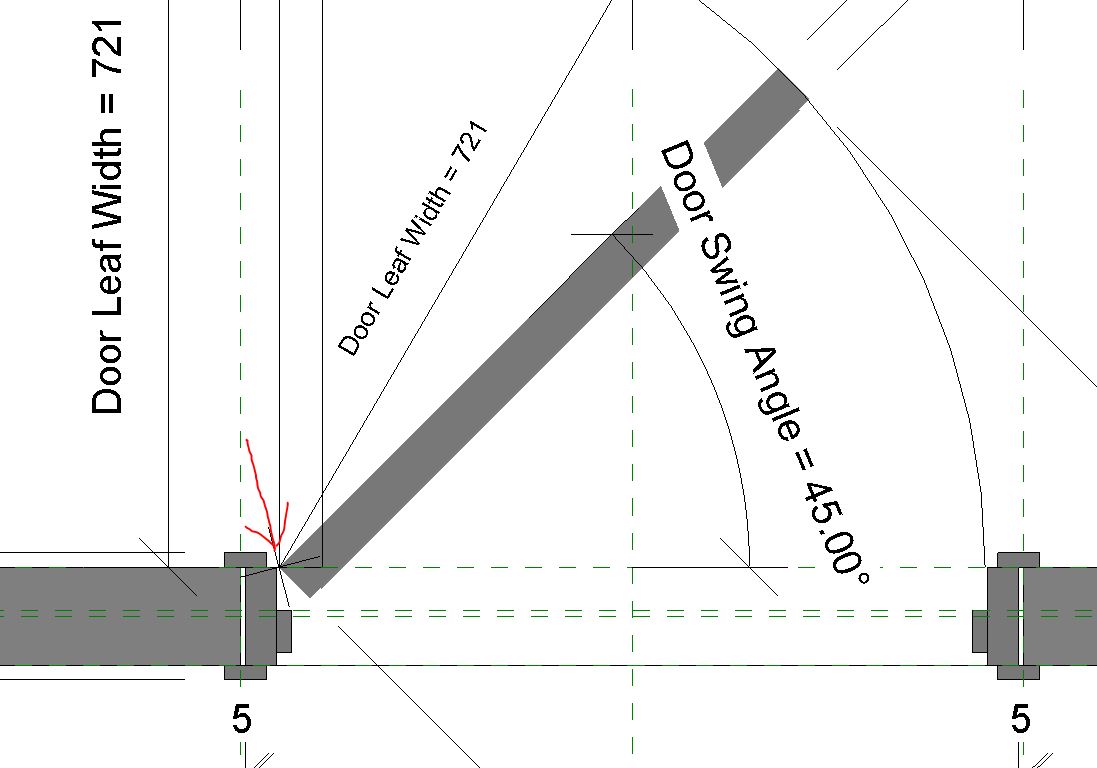

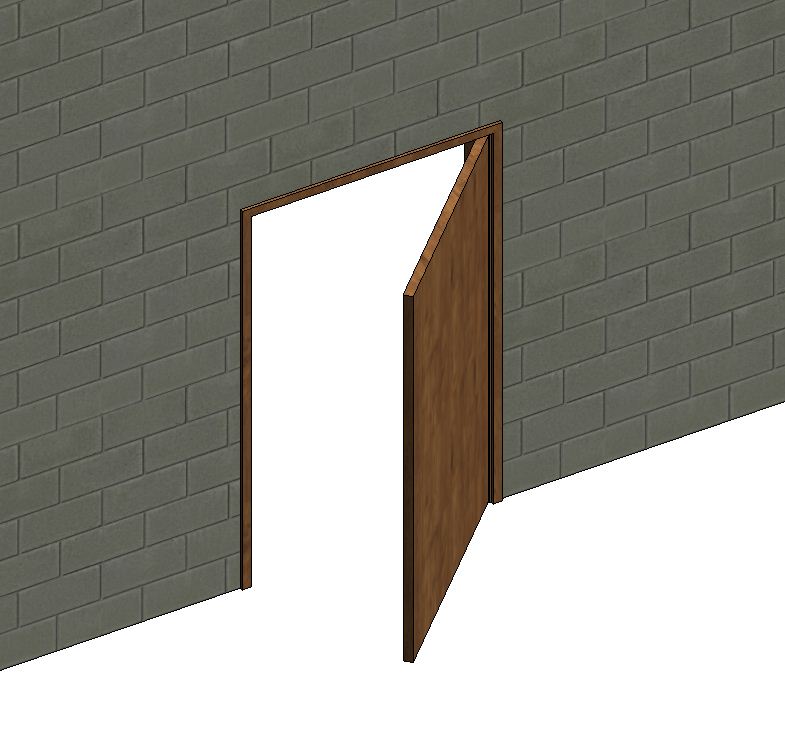

I'm developing a door  and I wanted it to be possible to have a parameter that would enable me to establish the angle at which the door opens in 3D.  It was fairly easy to do that using a reference line and an angle parameter and locking the pivot point of rotation. Now I seem to have a problem, even though the door width is locked to a parameter, if I change the angle to 0 or any other angel, the door leaf changes width and becomes bigger than the established parameter. The door is saved at 45 degrees and at this angle it works perfectly, its all the other angles that are giving me problems!! Could anyone help me?



Thanks

(I've attached some images so you can see the problem)



Attached Images


This user is offline



Fri, May 10, 2013 at 11:03:06 AM | 3D Swing parameter!! Help!!

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


You are doing something wrong, I created this one few years ago, take a look: http://www.revitcity.com/downloads.php?action=view&object_id=9052

the process is the same...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, May 10, 2013 at 11:32:21 AM | 3D Swing parameter!! Help!!

#3

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Thanks, I had a look!! We have a slight difference and I think thats what might be the problem, our pivot point is not at the wall corner, have a look, I attached an image.



Thanks! (Valeu ai!! A sua porta esta impecavel mas a minha deve ter algum problema com a caixilharia!)



Attached Images


This user is offline



Fri, May 10, 2013 at 11:56:48 AM | 3D Swing parameter!! Help!!

#4

krishan



krishan Avatar

Joined: Wed, Apr 30, 2008
4 Posts
3 Stars: 8 Votes


You must assign same parameter of the swing as door opening without frame.

It's work smoothly in my family



Attached Images


Attached Files

This user is offline



Fri, May 10, 2013 at 12:09:03 PM | 3D Swing parameter!! Help!!

#5

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Thanks, but I already did that, the problem is even after doing that, when it rotates it  changes the width of the leaf!!


This user is offline



Fri, May 10, 2013 at 12:22:18 PM | 3D Swing parameter!! Help!!

#6

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Guys, Thanks but just solved it, the door extrusion was made in elevation rather than in plan, that was the problem!! Perfect Now!!!


This user is offline



Fri, May 10, 2013 at 1:06:15 PM | 3D Swing parameter!! Help!!

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Ainda bem que o problema está resolvido...  Smile

Muito trabalho em Londres?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, May 10, 2013 at 1:18:41 PM | 3D Swing parameter!! Help!!

#8

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Mais ou menos!! A economia ainda nao recuperou, o sector ainda esta muito lento!! E voce, onde trabalha?


This user is offline



Fri, May 10, 2013 at 1:42:22 PM | 3D Swing parameter!! Help!!

#9

metaman


active

Joined: Tue, Aug 7, 2012
6 Posts
No Rating


Vi agora que e da Guarda, eu sou de Braga!! Grande coincidencia!!


This user is offline



Sat, May 11, 2013 at 11:51:50 AM | 3D Swing parameter!! Help!!

#10

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


Ainda bem que o problema está resolvido... Smile

Muito trabalho em Londres?


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Sat, May 11, 2013 at 12:03:34 PM | 3D Swing parameter!! Help!!

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I'm glad the problem is solved Smile

Lot of work in London?





Edited on: Sun, May 12, 2013 at 6:42:19 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
