Forums >> General Discussion >> Revit Project Management >> Wall Sections Showing up on Both sides of building

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 8, 2013 at 2:52:31 PM | Wall Sections Showing up on Both sides of building

#1

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating

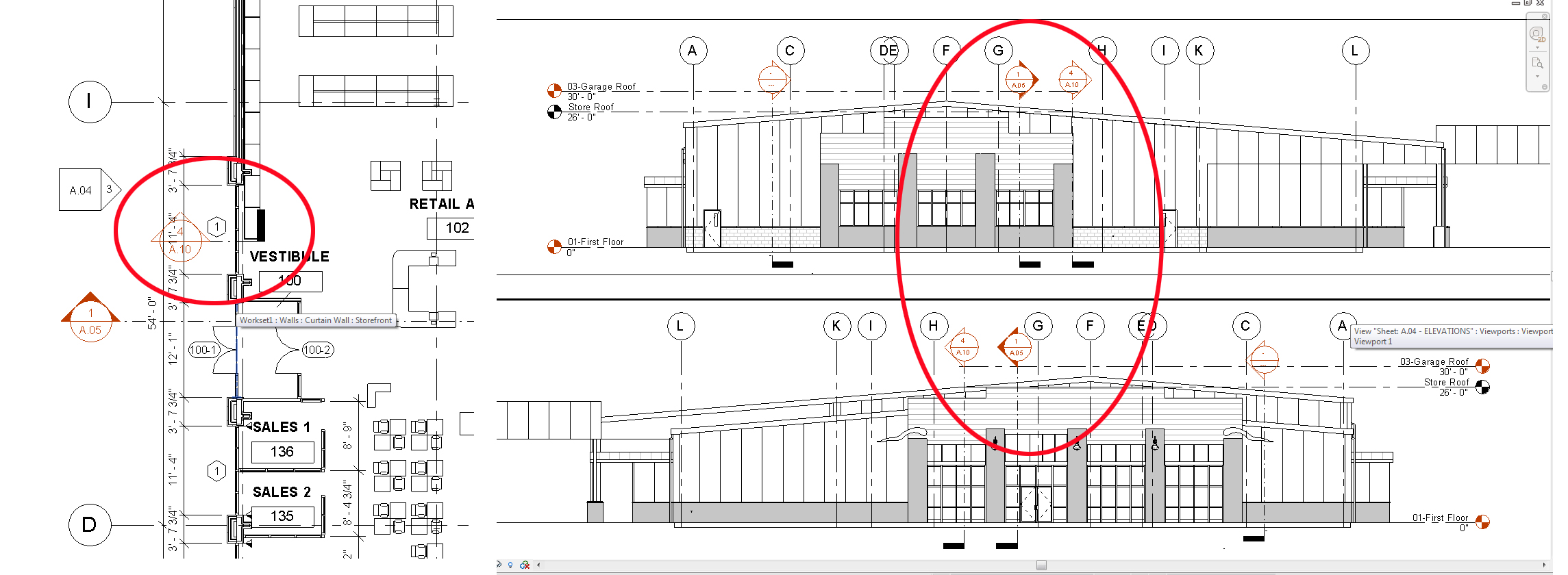

I have a wall section that is showing up on both the north and south elevation of my building eventhough I've drawn in only cutting through the north facade.  (Plan attached)



What setting am I missing.



I only want the section to appear on the elevation I'm cutting it through.



Thanks!



Attached Images


This user is offline



Wed, May 8, 2013 at 2:58:12 PM | Wall Sections Showing up on Both sides of building

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Why do you set your elevations to show the full depth of the building?  That just means Revit has to deal with everything in the view including your wall sections on the other side.  Goto your plan view and drag your elevation depth back to where it only includes items that elevate on that side.






This user is offline



Wed, May 8, 2013 at 2:59:00 PM | Wall Sections Showing up on Both sides of building

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


I believe in elevation sections will show up eitherway.  You will just need to hide it.


This user is offline

View Website

Wed, May 8, 2013 at 3:18:29 PM | Wall Sections Showing up on Both sides of building

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


No teafoe - If the view range doesn't intersect the section, it will not show.  We always set our elevations to clip / without line.


This user is offline



Wed, May 8, 2013 at 3:28:30 PM | Wall Sections Showing up on Both sides of building

#5

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Ah yes you are correct


This user is offline

View Website

Wed, May 8, 2013 at 4:13:39 PM | Wall Sections Showing up on Both sides of building

#6

depersia


active

Joined: Mon, Mar 12, 2012
15 Posts
No Rating


Thanks guys!



That was my problem. I didn't realize I had my elevations set up without  a clip distance.





Much appreciated.


This user is offline
