Thu, May 2, 2013 at 5:26:14 PM | Legend for Demo Plan

#1

robp72


active

Joined: Tue, Feb 7, 2012
48 Posts
5 Stars: 1 Votes


Hi! I am using Revit Architecture 2013. I would like to make a "demo legend" to show existing wall lines vs demolished wall lines (dashed) vs existing doors, vs demolished doors, etc.

I created the legend sheet but I cant drag and drop or copy and paste any of my "symbols" into the legend sheet.

Thanks,

Rob


This user is offline



Thu, May 2, 2013 at 6:10:08 PM | Legend for Demo Plan

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 355 Votes


Your right.  For some dumb reason, we can't use symbols in a legend.



Place them in a model view and use freeze view to change to detail lines which you can then copy/paste into your legend.


This user is offline



Thu, May 2, 2013 at 6:17:20 PM | Legend for Demo Plan

#3

robp72


active

Joined: Tue, Feb 7, 2012
48 Posts
5 Stars: 1 Votes


WWHUB

THANK YOU! I WILL GIVE IT A TRY. I APPRECIATE YOUR HELP.

TAKE CARE,

ROB


This user is offline



Thu, May 2, 2013 at 7:00:21 PM | Legend for Demo Plan

#4

robp72


active

Joined: Tue, Feb 7, 2012
48 Posts
5 Stars: 1 Votes


WWHUB,

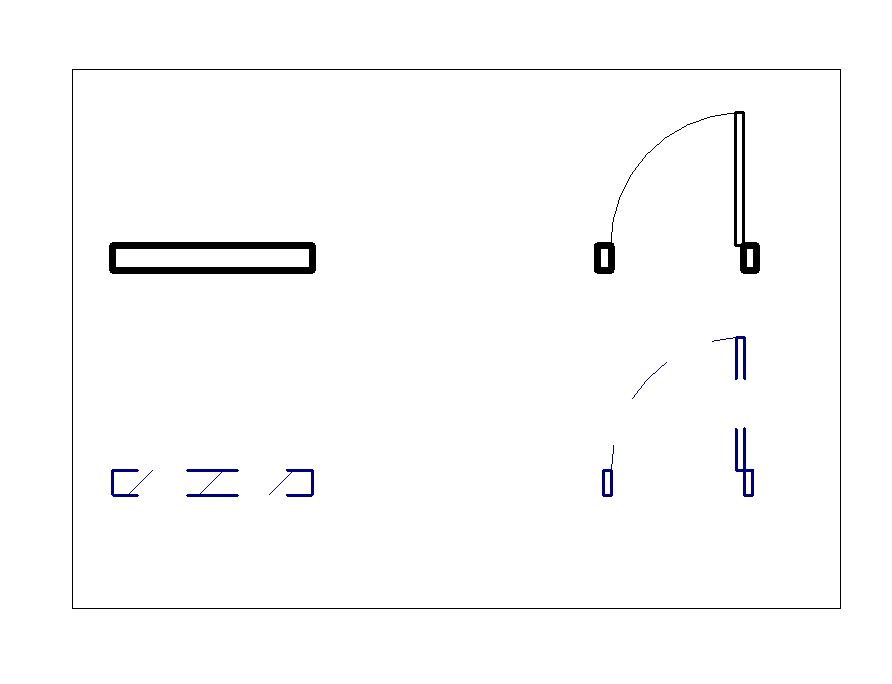

HOW DO YOU USE "FREEZE VIEW" TO CHANGE TO MODEL LINES? I ATTACHED A SCREEN IMAGE OF WHAT I HAVE (STANDARD WALL, DEMO WALL, STANDARD DOOR IN PLAN, DEMO DOOR IN PLAN.

THANKS AGAIN,

ROB



Attached Images


This user is offline



Thu, May 2, 2013 at 7:06:54 PM | Legend for Demo Plan

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 355 Votes


Under extensions - tools / freeze drawings.


This user is offline



Thu, May 2, 2013 at 8:37:45 PM | Legend for Demo Plan

#6

robp72


active

Joined: Tue, Feb 7, 2012
48 Posts
5 Stars: 1 Votes


WWHUB,

THANKS AGAIN, I APPRECIATE YOUR HELP. NO LUCK WITH THIS- I DONT SEEM TO HAVE THE SAME OPTIONS AS YOU WITH MY REVIT SOFTWARE (OR I CANT FIND EXTENSIONS - TOOLS - FREEZE).

TAKE CARE,

ROB


This user is offline



Thu, May 2, 2013 at 8:44:04 PM | Legend for Demo Plan

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 355 Votes


OK ... This extensiuon just exports the item to CAD then re-imports it into a drafting view.  You can do the same thing manually.


This user is offline



Thu, May 2, 2013 at 8:51:18 PM | Legend for Demo Plan

#8

robp72


active

Joined: Tue, Feb 7, 2012
48 Posts
5 Stars: 1 Votes


WWHUB,

THANKS! I THINK I CAN GET IT TO WORK MANUALLY. THANKS AGAIN FOR YOUR HELP TODAY, I APPRECIATE IT.

TAKE CARE,

ROB


This user is offline
