Forums >> Community >> Newbies >> Roof Plan not Showing in Site Plan

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 1, 2013 at 9:26:34 AM | Roof Plan not Showing in Site Plan

#1

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


Hello,

I am having trouble when I go to site plan view, the roof plan is now showing, and interior walls are showing instead.  I know this is the view range, but every number and level combination I try, it still will not show.  My building is 30' feet tall.

Thank you!



Attached Files

This user is offline



Wed, May 1, 2013 at 9:29:14 AM | Roof Plan not Showing in Site Plan

#2

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating

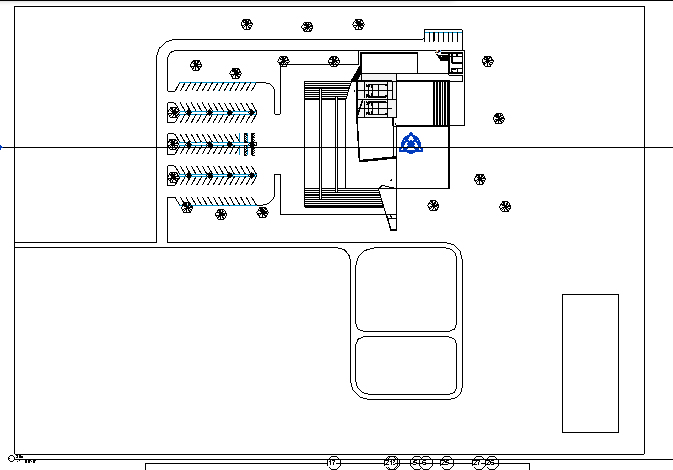

Sorry, the file didn't attach correctly.





Attached Images


This user is offline



Wed, May 1, 2013 at 9:39:04 AM | Roof Plan not Showing in Site Plan

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


Change the cut plane of your view in view properties.  It is too low.  Pick something like 100'


This user is offline



Wed, May 1, 2013 at 10:03:33 AM | Roof Plan not Showing in Site Plan

#4

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating

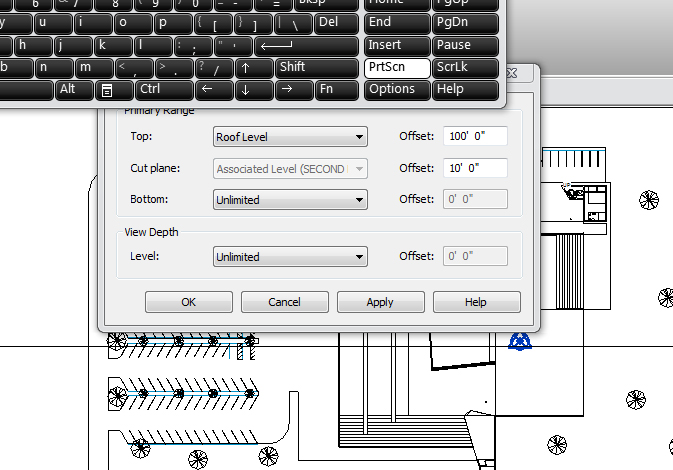

Thanks for your input.  I did and still nothing.  See my view range attached.



Attached Images


This user is offline



Wed, May 1, 2013 at 10:05:33 AM | Roof Plan not Showing in Site Plan

#5

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Your CUT PLANE is set to 10'-0"  not 100'-0" like WWHUB said to do


This user is offline

View Website

Wed, May 1, 2013 at 10:11:49 AM | Roof Plan not Showing in Site Plan

#6

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


I did that and still nothing.  I took the picture before I changed it.


This user is offline



Wed, May 1, 2013 at 10:12:47 AM | Roof Plan not Showing in Site Plan

#7

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating

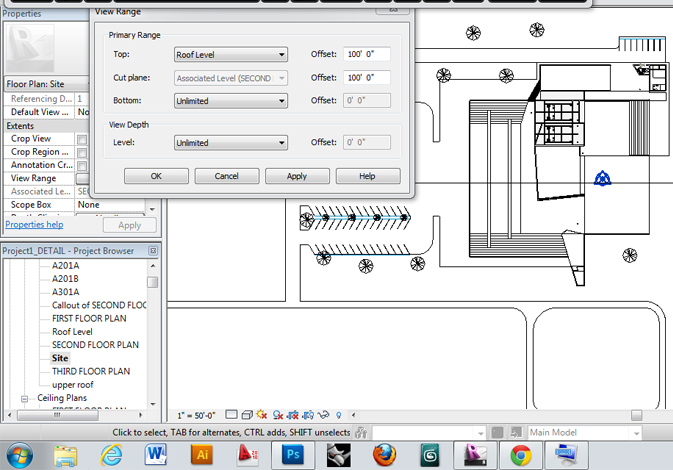

Attached Images


This user is offline



Wed, May 1, 2013 at 10:15:39 AM | Roof Plan not Showing in Site Plan

#8

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


Thanks everybody.  I just figured it out.  I had to model my roof with ceilings and the ceilings are not turned on in visibility and graphics for site plans.


This user is offline



Wed, May 1, 2013 at 10:19:07 AM | Roof Plan not Showing in Site Plan

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


This is user error.



Your not telling us something.  The roof is maybe not on - hidden - in a different phase - in a different workset or 100+ feet in the air.


This user is offline



Wed, May 1, 2013 at 10:21:19 AM | Roof Plan not Showing in Site Plan

#10

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


You modeled your roof with ceilings????? Why


This user is offline

View Website

Wed, May 1, 2013 at 10:24:48 AM | Roof Plan not Showing in Site Plan

#11

jsego


active

Joined: Tue, Feb 3, 2009
7 Posts
No Rating


Yeah, I know.  This is for a school project and I'm still fairly new to Revit.  My ceiling/roof is hard to explain...stepped concrete that are all stepping in different ways.  I had no idea how to model this with a roof.


This user is offline



Wed, Jul 12, 2017 at 12:03:32 PM | Roof not showing!

#12

valdezz


active

Joined: Wed, Jul 12, 2017
0 Posts
No Rating

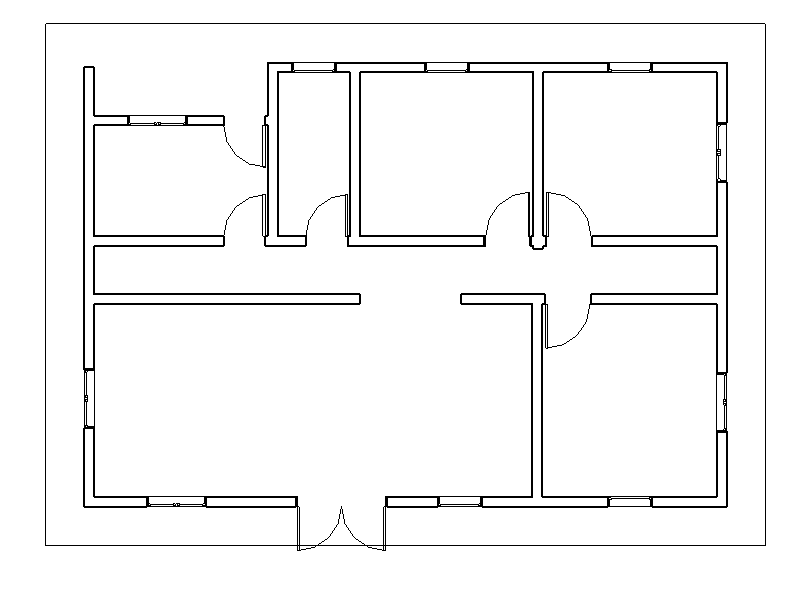

hello am new to revit. when i use the command roof on my plan it does not appear i can only see the rectangle the roof command created when i used the pick wall command and on 3d it appears as a slab .really need help. thanks in advance



Attached Images


This user is offline
