Forums >> Revit Building >> Technical Support >> How to create complex gable roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 1, 2013 at 1:39:50 PM | How to create complex gable roof

#1

niteshrupalia


active

Joined: Wed, Mar 25, 2009
18 Posts
5 Stars: 1 Votes


Hi Guys, been searching the internet for days on this one. I know how to create gable roofs, but I want to create a overhang on the ground floor porch enterance. Im using roof by footprint. and revit 2013. I have attached a pictuere of what I want to create. I want the circle in red, while also keeping the green, but can't do this in revit as they overlap if drawn by footprint. Any help greatly appreciated.



Attached Images


This user is offline



Wed, May 1, 2013 at 1:59:51 PM | How to create complex gable roof

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


The main roof with the overhang can all be one roof sketch.  Your two gables will ahve to be seperate roofs.


This user is offline



Wed, May 1, 2013 at 2:02:57 PM | How to create complex gable roof

#3

niteshrupalia


active

Joined: Wed, Mar 25, 2009
18 Posts
5 Stars: 1 Votes


I thought as much thank you!


This user is offline



Wed, May 1, 2013 at 2:07:51 PM | How to create complex gable roof

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


You could also do the main roof and left gable as one sketch with the overhang and center gable as other roofs. .....


This user is offline



Sat, May 4, 2013 at 2:13:30 PM | How to create complex gable roof

#5

niteshrupalia


active

Joined: Wed, Mar 25, 2009
18 Posts
5 Stars: 1 Votes

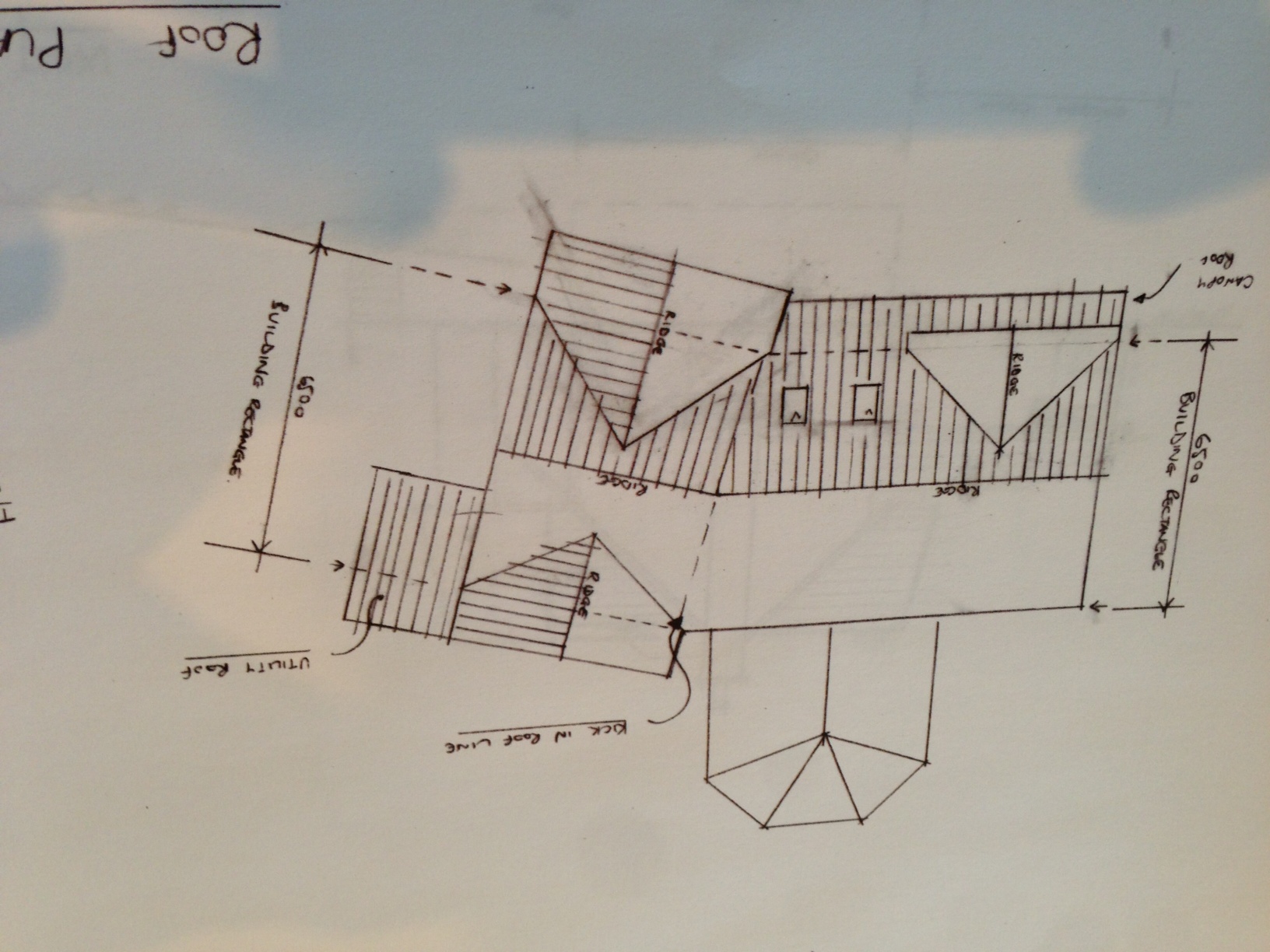

Guys, Im realy having a tough time with this roof, I have attached a roof plan, just can't get the ridge line from the two roofs at an angle as shown.



Attached Images


This user is offline



Sat, May 4, 2013 at 2:15:48 PM | How to create complex gable roof

#6

niteshrupalia


active

Joined: Wed, Mar 25, 2009
18 Posts
5 Stars: 1 Votes

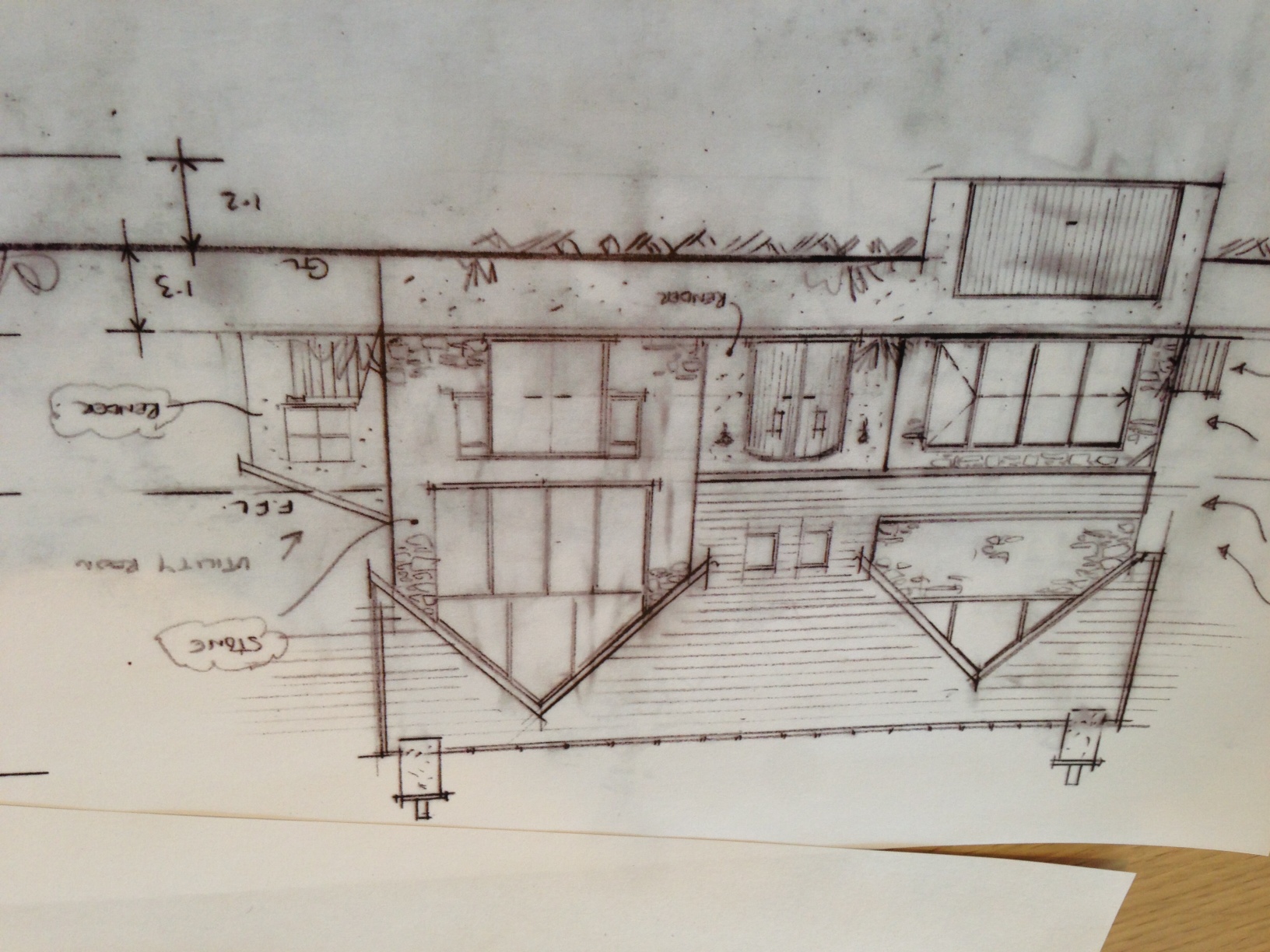

How would I go about creating this roof, I have tried seperate roofs, but then I have a problem joining them at the kink angle.

Should I create the roof as one and add the dormers as seperate roofs and cut in?


This user is offline
