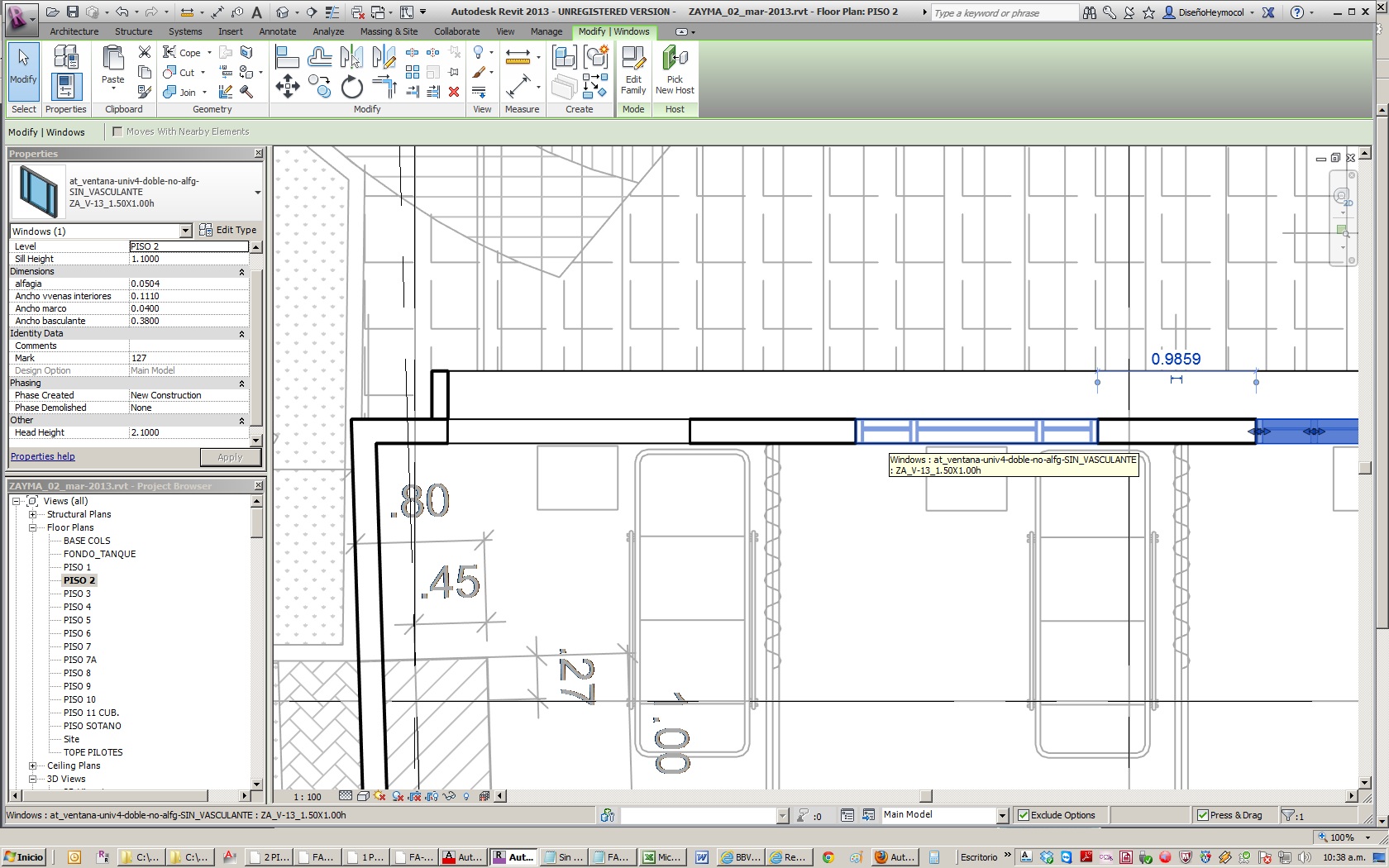

Hello my loved community, can anyone help me? I made a window family that seems to work ok, but when viewing in plan it doesn't appear. The visibility settings are all checked, it can be seen in 3d view and elevations and in sections. And (weird) when I hover the cursor over it (in plan) it shows up. And the cut plane is at the rigth heigth. What can I be doing wrong?

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Do you have more than one wall in that area?  Review warnings will show you duplicates in the same place.  Also....just delete the wall and see what's left.

This user is offline

sllana

active

Joined: Wed, Mar 2, 2011
106 Posts

well, there is no double wall at all. And if I insert an original revit  window, it looks ok. And if I delete the wall, the window also is gone. And.. in wireframe it does show up. I think it could be a problem with the "openning cut" but it is there.
