Sat, May 29, 2004 at 2:44:09 PM | Possible to Developing or Edit an Arrowhead?

#1

PJasonL


active

Joined: Wed, Apr 28, 2004
5 Posts
No Rating


I have modified a spot elevation symbol to be used as in the arrowhead categlory, but in the properies menu for that particular spot elevation, this arrow head is not showing up in the selections. Is it possible to edit or develop a new arrowhead to be used? If so, how does Revit hand it? Thank you all in advance for any comments. J

This user is offline



Tue, Jun 1, 2004 at 2:02:48 PM | RE: Possible to Developing or Edit an Arrowhead?

#2

hjacobs


admin
hjacobs Avatar

Joined: Sun, Jan 19, 2003
568 Posts
3.5 Stars: 16 Votes


At this time, I don't believe Revit allows you to make a new arrowhead type.

-----------------------------------

Hiroshi Jacobs

The Catholic University of America

This user is offline

View Website

Tue, Jun 1, 2004 at 11:09:54 PM | RE: Possible to Developing or Edit an Arrowhead?

#3

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


To make a new arrowhead type go to settings, annotations, arrow head then define the arrow style, whether to fill the tick, arrow width angle and tick size. Cheers, Chris.

-----------------------------------

Regards,

Chris.

Co-Founder | BIM Consultant | Software Designer  CryingB. Arch)

Xrev Revit API Addins | Revit Rants

This user is offline

View Website

Thu, Mar 11, 2010 at 12:44:54 AM | Possible to Developing or Edit an Arrowhead?

#4

pepsiqueen


active
pepsiqueen Avatar

Joined: Thu, Feb 17, 2005
136 Posts
No Rating


i realize this is an old post, but i am looking for a way to make a custom "arrowhead" that is actually just a little filled rectangle.

-----------------------------------

I'd rather be riding at whistler. or highland. thats good too.



This user is offline



Thu, Mar 11, 2010 at 8:19:12 AM | Possible to Developing or Edit an Arrowhead?

#5

mcantwell


active
mcantwell Avatar

Joined: Thu, Aug 24, 2006
86 Posts
5 Stars: 1 Votes


On the end of a leader or just floating by itself?




This user is offline

View Website

Thu, Mar 11, 2010 at 4:56:54 PM | Possible to Developing or Edit an Arrowhead?

#6

pepsiqueen


active
pepsiqueen Avatar

Joined: Thu, Feb 17, 2005
136 Posts
No Rating

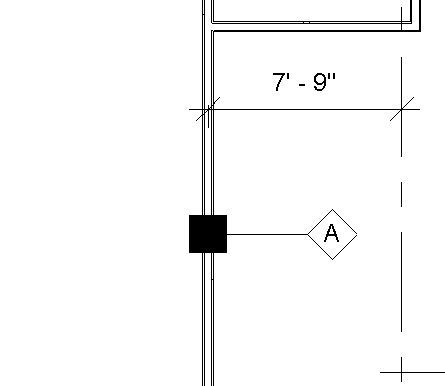

at the end of a leader. This is for a wall tag. the closest i can get is a square, but to match the firms autocad standards it needs to be a rectangle. (in cad its just a pline with thickness thats a continuation of the leader) see image.

Attached Images


-----------------------------------

I'd rather be riding at whistler. or highland. thats good too.



This user is offline



Thu, Mar 11, 2010 at 9:22:36 PM | Possible to Developing or Edit an Arrowhead?

#7

mcantwell


active
mcantwell Avatar

Joined: Thu, Aug 24, 2006
86 Posts
5 Stars: 1 Votes

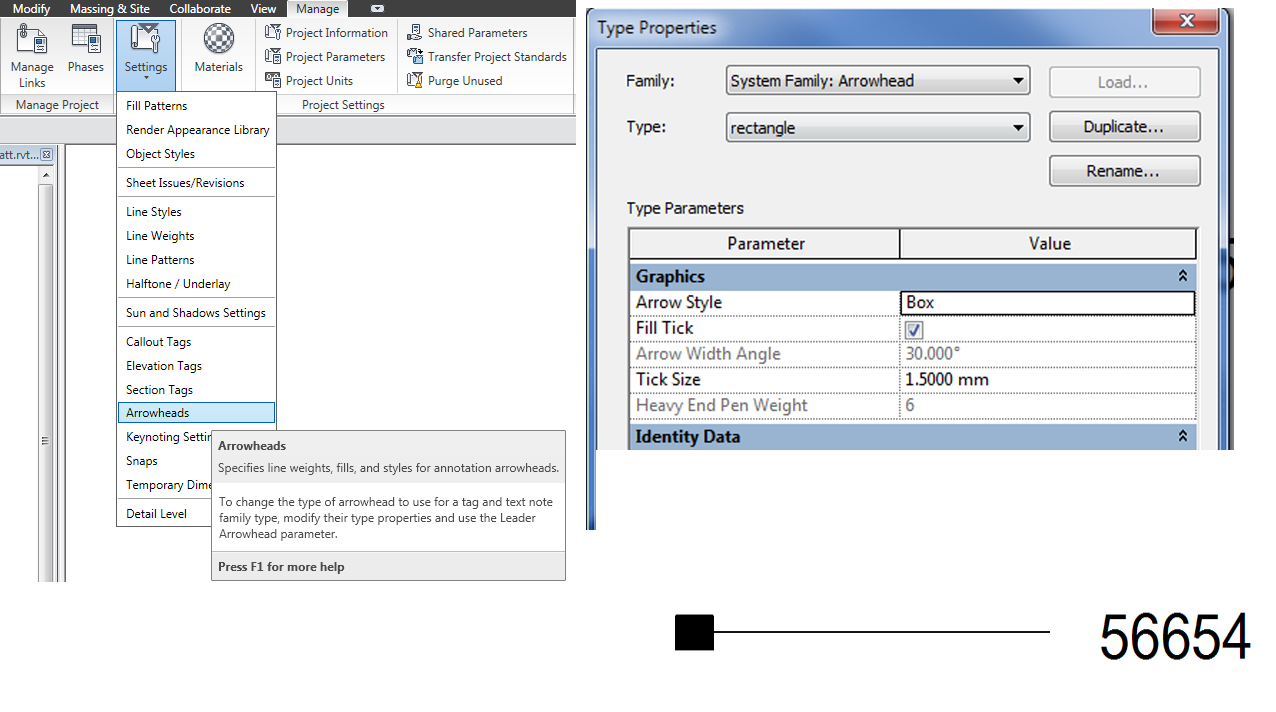

You can set up a box arrow style.

Attached Images


This user is offline

View Website

Thu, Mar 11, 2010 at 9:28:27 PM | Possible to Developing or Edit an Arrowhead?

#8

pepsiqueen


active
pepsiqueen Avatar

Joined: Thu, Feb 17, 2005
136 Posts
No Rating


yes, thats how i got the filled box in the image i posted earlier. however i need a rectangle, and the box only allows for a square.

-----------------------------------

I'd rather be riding at whistler. or highland. thats good too.



This user is offline



Thu, Mar 11, 2010 at 9:56:21 PM | Possible to Developing or Edit an Arrowhead?

#9

TKennedy


active

Joined: Wed, Oct 7, 2009
654 Posts
4 Stars: 7 Votes


Try a Heavy End Tick Mark. It won't be a perfect rectangle, but it might be close enough to what you are looking for.

This user is offline



Thu, Mar 11, 2010 at 10:11:57 PM | Possible to Developing or Edit an Arrowhead?

#10

pepsiqueen


active
pepsiqueen Avatar

Joined: Thu, Feb 17, 2005
136 Posts
No Rating

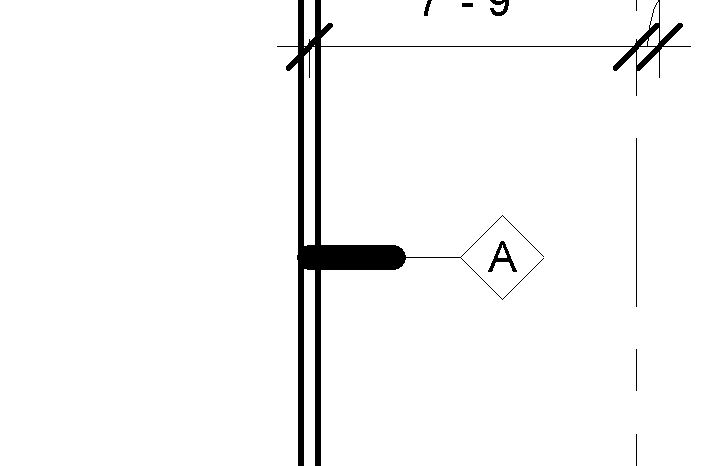

well, its sort of OK, except you can't align the tick mark centered over the wall; it attaches to one side or the other. and because the ends are rounded i think i like the square better.

Attached Images


-----------------------------------

I'd rather be riding at whistler. or highland. thats good too.



This user is offline
