Forums >> Revit Building >> Technical Support >> wall sweep to stairs

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 5, 2013 at 10:48:15 AM | wall sweep to stairs

#1

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


Hello,

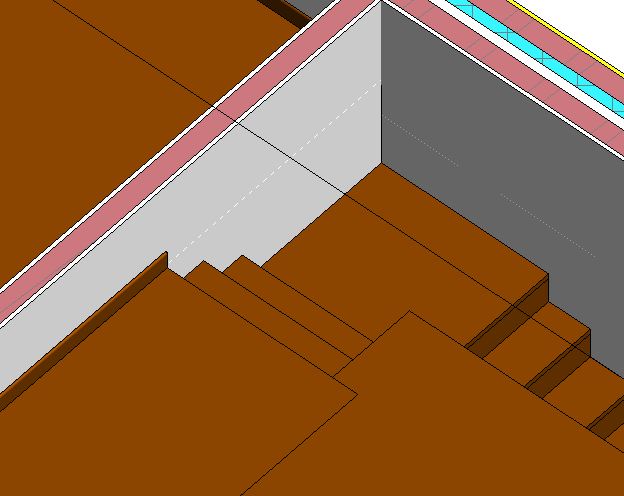

Can anyone tell me the most correct/efficient way to prolong a wall sweep onto a staircase (please see jpg attached)?



Many thanks.

REVIT Architecture 2013







Attached Images


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline



Tue, Mar 5, 2013 at 1:10:04 PM | wall sweep to stairs

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


Sorry but your question is not clear.

Is it an in-place sweep or a wall defined sweep?

Not sure how good your image does.  I assume you mean the base at the landing?  What do you want it to do?


This user is offline



Tue, Mar 5, 2013 at 2:59:57 PM | wall sweep to stairs

#3

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


The wall sweep (brown, to the left) is a wall defined sweep.

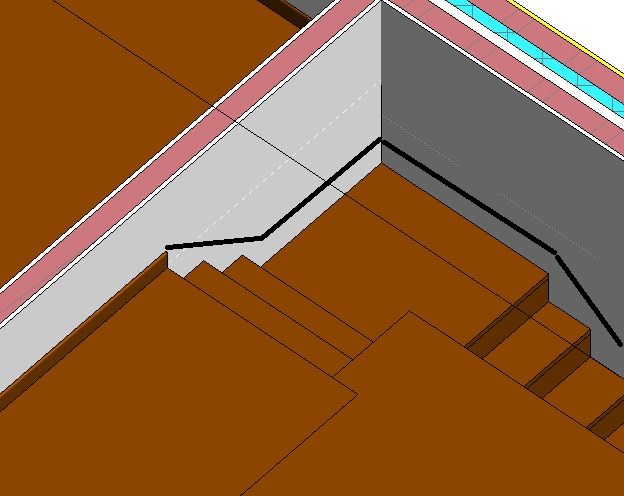

I need to stop it once the stairs start, and I was wondering on how could I create an object that would follow the wall sweep along the stairs. I have drawn it in black, roughly.



Attached Images


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline



Tue, Mar 5, 2013 at 3:08:09 PM | wall sweep to stairs

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes

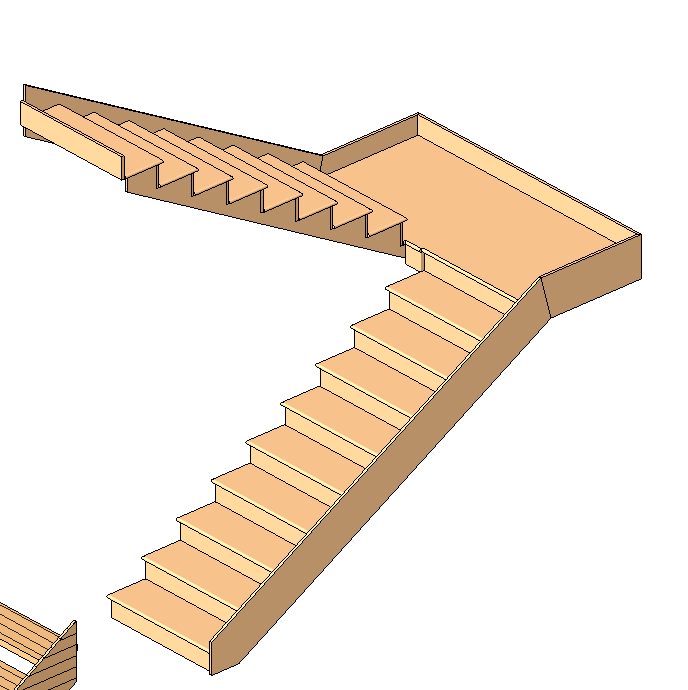

Do you know that you can define a stringer for your stairs?  See attached.



Look at the stair samples on the on-line library.  http://revit.autodesk.com/library/html/index.html



Attached Images


This user is offline



Tue, Mar 5, 2013 at 3:25:03 PM | wall sweep to stairs

#5

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


I have tried to edit the stairs and add stringers but nothing seems to happen....


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline



Tue, Mar 5, 2013 at 3:31:18 PM | wall sweep to stairs

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


Open the file I pointed to!  You can copy that and load it into your project.  Then look at the settings!


This user is offline



Tue, Mar 5, 2013 at 3:48:38 PM | wall sweep to stairs

#7

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


the link does not point to a particular object.


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline



Tue, Mar 5, 2013 at 4:04:54 PM | wall sweep to stairs

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


" stair samples on the on-line library"  <<<<< SAMPLES - CLEAR?


This user is offline



Thu, Mar 7, 2013 at 4:00:14 PM | wall sweep to stairs

#9

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


Eureka!

The problem was that I was trying to create stringers on a monolithic stair. Can't do that.



Many thanks for your help and time.


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline
