Forums >> Revit Building >> Technical Support >> Arched Window in Masonry Wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Mar 3, 2013 at 1:19:45 PM | Arched Window in Masonry Wall

#1

Polar


active

Joined: Sun, Dec 7, 2008
57 Posts
No Rating


Hi all, I want to make an arched window in a masonry wall. So far so good, but when I want to add the stone sill and the ceramic trim at the head by cutting into the wall I discover that I'm doint something wrong.

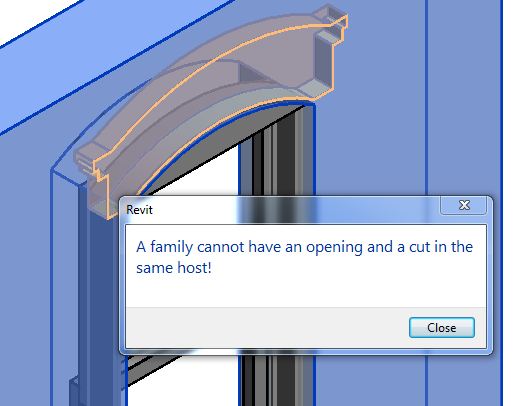

- cannot make cut and opening in same host

- in elevation with shadows shadows are cast on a phantom plane and you can't see in. (maybe as simple as view settings)

Win 7 pro 64 bit

Revit Architecture 2013

Thanks



Attached Images

116946_cut-and-opening-in-same-host.JPG116946_masonry_window.JPG116946_phantom_plane_with_shadows_on_in_elevation.JPG

-----------------------------------

think it - build it

This user is offline



Mon, Mar 4, 2013 at 11:28:03 AM | Arched Window in Masonry Wall

#2

Pavan


active
Pavan Avatar

Joined: Sat, Mar 19, 2005
157 Posts
4.5 Stars: 3 Votes


Delete the opening cut and use 'Void extrusion' only.


-----------------------------------

Pavan Reddy

Revit Manager

Intelligence is not always knowing the answers, it's always asking the questions.
