Forums >> Revit Structure >> Technical Support >> top & bottom plates with wall framing extensions

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Feb 18, 2013 at 5:02:36 PM | top & bottom plates with wall framing extensions

#1

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating

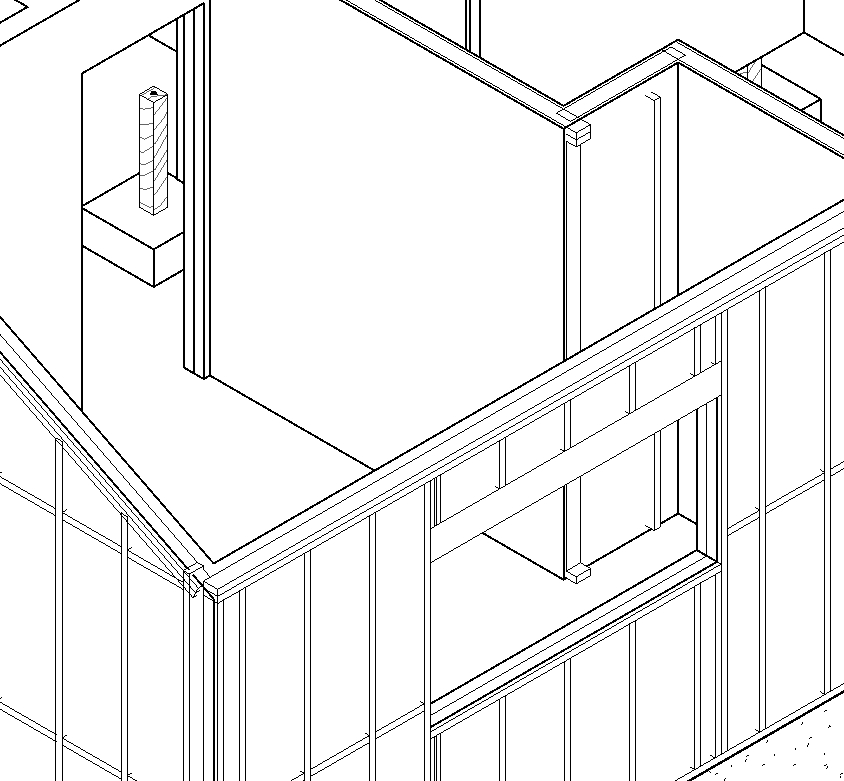

I'm still on the process of getting this all figured out but the main problems I'm running into with the wall framing is where the top & bottom plates are extending past the wall corners.

using Revit 2013.



What am I missing here?



Thank in advance



Attached Images


This user is offline

View Website

Mon, Feb 18, 2013 at 6:20:17 PM | top & bottom plates with wall framing extensions

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 44 Votes


How did you put the top and bottom plates in? Are they sweeps that are a part of the wall structure?  Did you try using the wall joins command and change it from Butt to Miter?


This user is offline

View Website

Mon, Feb 18, 2013 at 7:10:42 PM | top & bottom plates with wall framing extensions

#3

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


The t & b plates are part of the wall extension structure.

Structural wall.

The corners are the default


This user is offline

View Website

Mon, Feb 18, 2013 at 7:31:56 PM | top & bottom plates with wall framing extensions

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 44 Votes


Did you try using the wall join command and the miter as I suggested?  Do you have a setback set in the Wall Sweep dialog box? Attach a file with your wall if none of these help so I can look into it further.



Edited on: Mon, Feb 18, 2013 at 1:40:33 PM

Attached Images


This user is offline

View Website

Mon, Feb 18, 2013 at 9:59:07 PM | top & bottom plates with wall framing extensions

#5

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


Trying to creat a 2mb files is seeming hard for me than it should be I think.  Still working on it a file to upload.


This user is offline

View Website

Tue, Feb 19, 2013 at 5:10:48 PM | top & bottom plates with wall framing extensions

#6

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


OK,  I'm not having any luck pulling the wall type into a file that is 2 mb or less.  Any guidance?



Thanks


This user is offline

View Website

Tue, Feb 19, 2013 at 5:17:22 PM | top & bottom plates with wall framing extensions

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 356 Votes


Open a copy of your file then delete everything except your two walls.  Also all views, schedules, legends then purge all.


This user is offline



Tue, Feb 19, 2013 at 5:21:40 PM | top & bottom plates with wall framing extensions

#8

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


wil do



Edited on: Tue, Feb 19, 2013 at 11:22:30 AM

This user is offline

View Website

Tue, Feb 19, 2013 at 5:32:00 PM | top & bottom plates with wall framing extensions

#9

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


Here we go.  Still a learning curve for me where everything is.  Didn't realize there was a purge in it or I'd had that done yesterday.

I find it's holding the plates short or extending them the same distance past the corners



Thanks



Attached Files

This user is offline

View Website

Tue, Feb 19, 2013 at 6:30:12 PM | top & bottom plates with wall framing extensions

#10

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 44 Votes

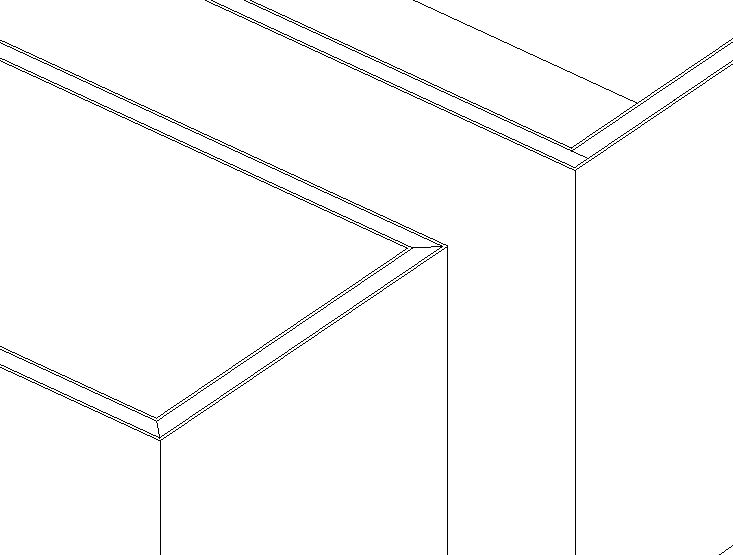

The wall types that you have in the attached file do not have any sweeps in them. I have attached the same file with a 2x4 double top plate sweep applied to it.  The edges clean up together.



This user is offline

View Website

Tue, Feb 19, 2013 at 6:54:13 PM | top & bottom plates with wall framing extensions

#11

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


OK, So I'm still at a little bit of a loss.  Did you apply the sweep after you created the framing?  In what you'd sent me it seems like the top plates & the wall are one entity rather than the framing being seperate from the wall.


This user is offline

View Website

Tue, Feb 19, 2013 at 7:17:58 PM | top & bottom plates with wall framing extensions

#12

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 44 Votes


The plates are a part of the wall.  Edit the wall, edit the structure, switch the view in the Edit Assembly dialog box to Section and under sweeps you can add them to your wall assembly so they are all one part.  Are you really going to show ALL of the framing in your project?  That is probably advised againt.  You can just use details items in sections.


This user is offline

View Website

Tue, Feb 19, 2013 at 7:30:07 PM | top & bottom plates with wall framing extensions

#13

dmiller226


active

Joined: Fri, Dec 18, 2009
13 Posts
No Rating


I don't know what's with my dbl. posts, strange.



No not going to show all the framing, just trying to figure it all out. I would just like to get as good at Revit as I am with AutoCAD.



However we do some MTL. stud work where I put together shop drawings and I'm just trying different things.






This user is offline

View Website
