Fri, Feb 8, 2013 at 9:31:20 PM | Column drawing (Emergency)

#1

posting


active

Joined: Mon, Dec 14, 2009
4 Posts
No Rating

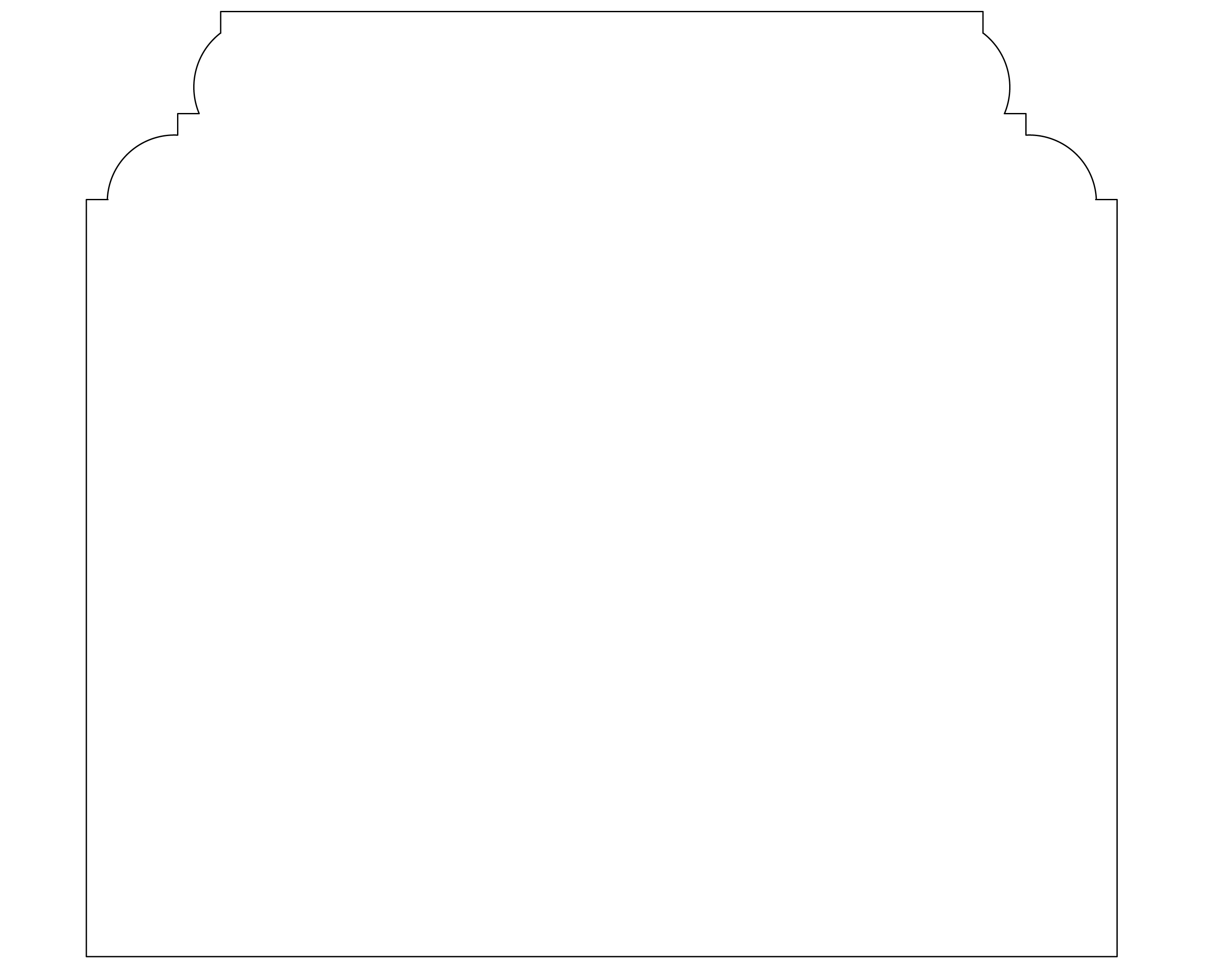

How can I draw this column (rectangle) at Revit?

please help me!



Attached Images


This user is offline



Sat, Feb 9, 2013 at 10:21:16 AM | Column drawing (Emergency)

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Create a "Structural Column" family



Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Feb 9, 2013 at 1:00:34 PM | Column drawing (Emergency)

#3

posting


active

Joined: Mon, Dec 14, 2009
4 Posts
No Rating

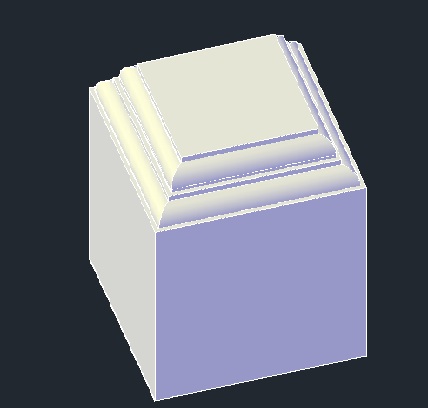

Thank you for your answer. I need to do this kind of coulmn foot. is it possible? if yes how?



Attached Images


This user is offline



Sat, Feb 9, 2013 at 1:43:53 PM | Column drawing (Emergency)

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes

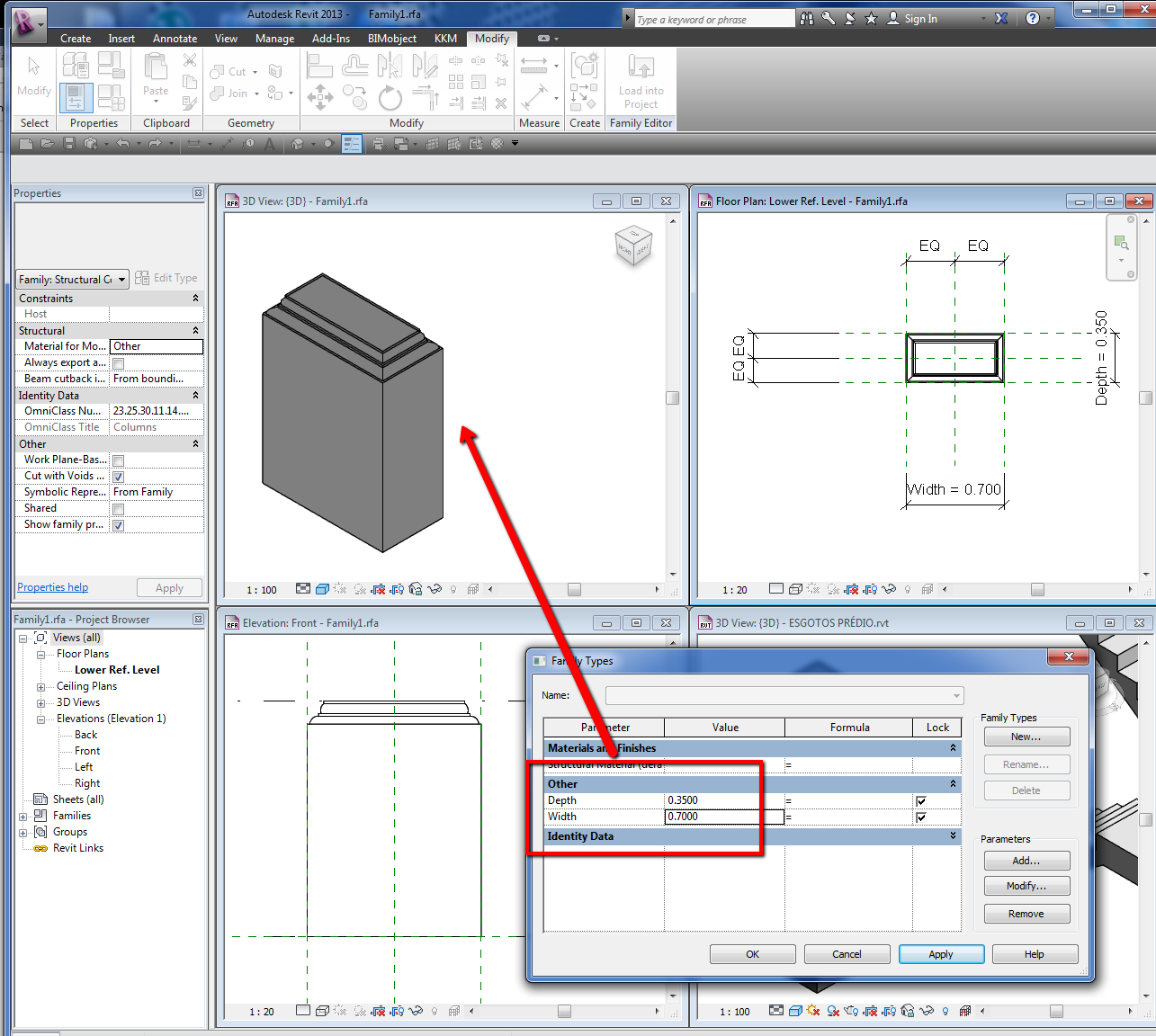

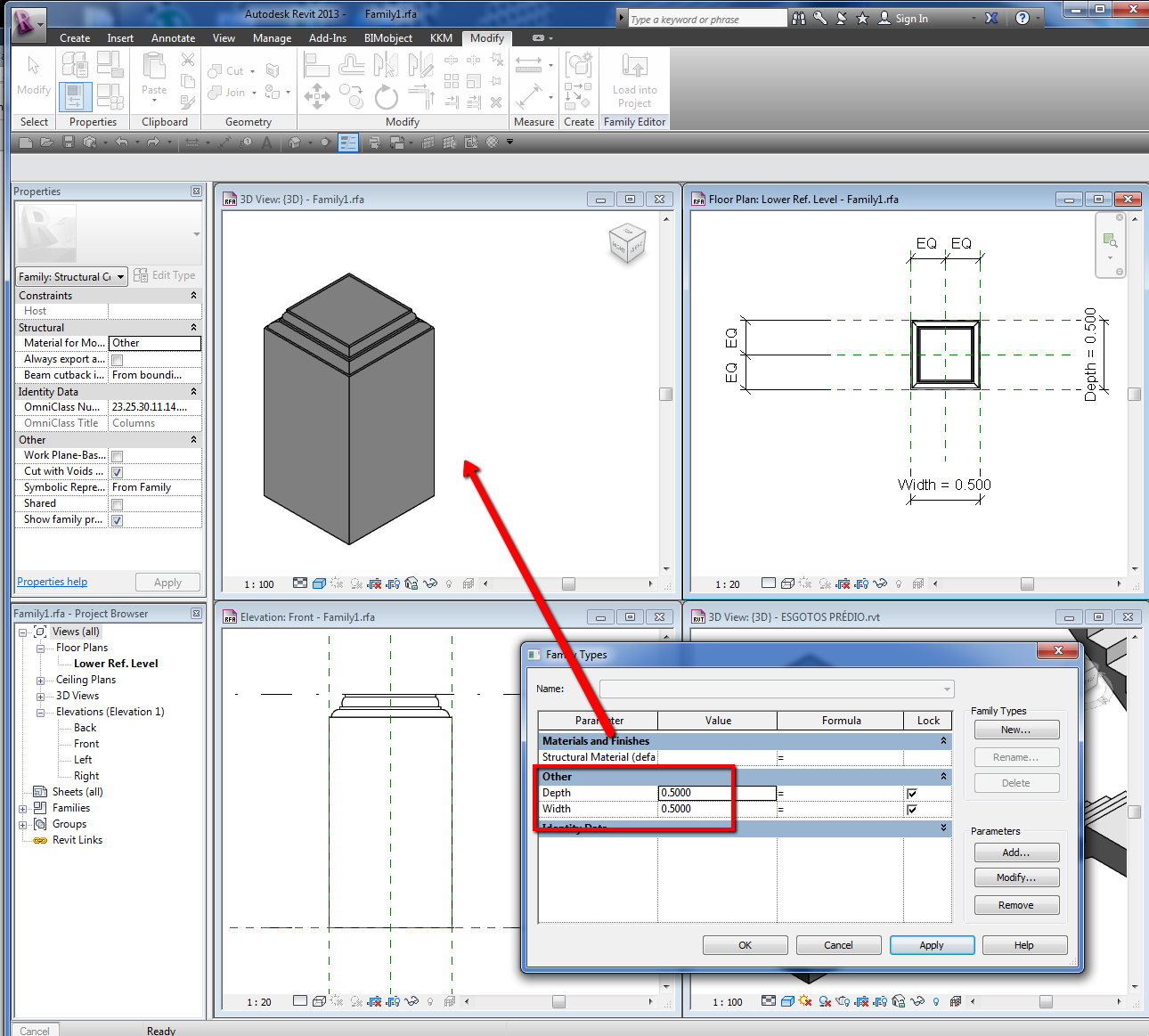

Yes you can, create a rec. extrusion to create the column then create a VOID with that profile to cut the column.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Feb 9, 2013 at 1:50:37 PM | Column drawing (Emergency)

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes

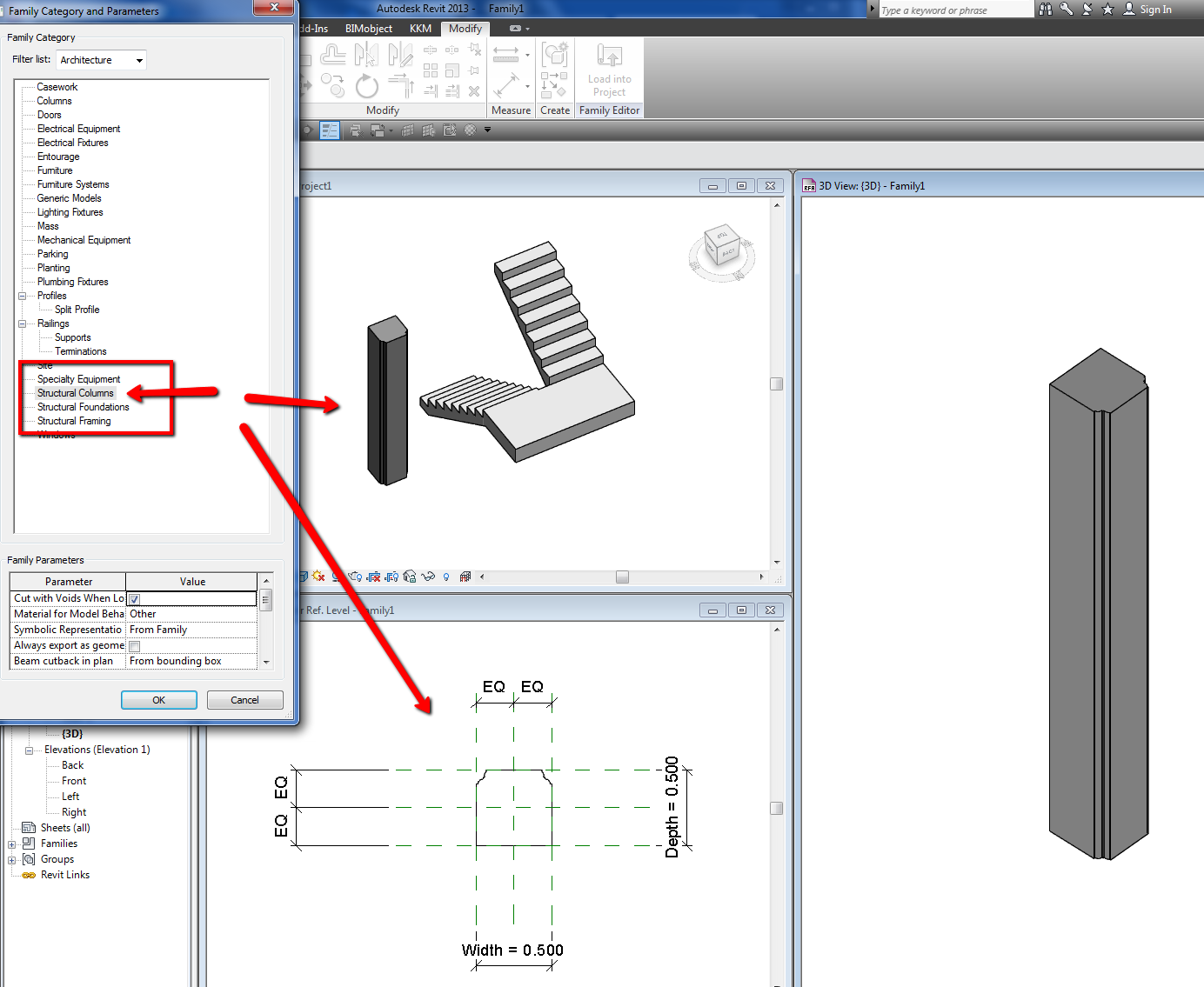

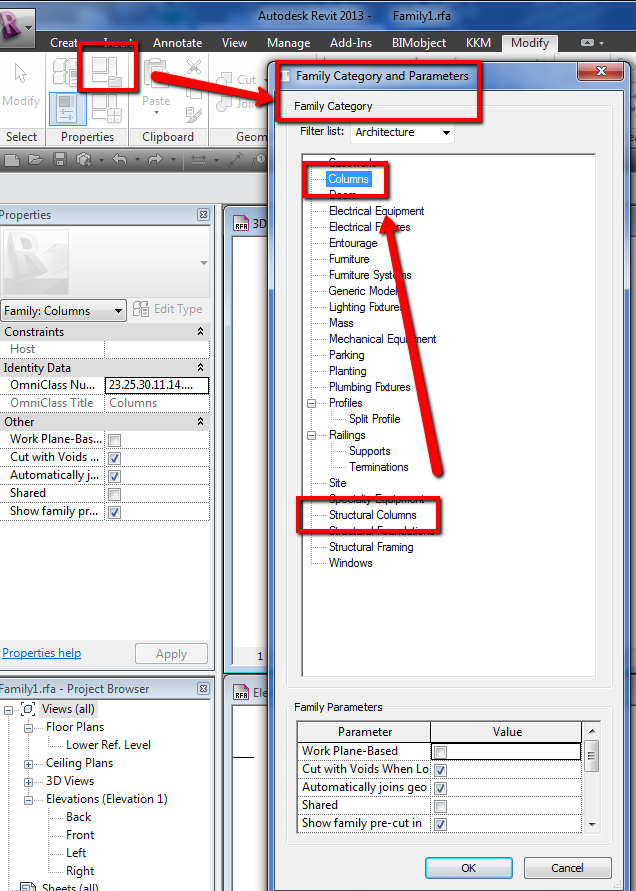

BTW... you can chage the category of that "structural column" to another cat. you know that right?





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Feb 9, 2013 at 3:40:16 PM | Column drawing (Emergency)

#6

posting


active

Joined: Mon, Dec 14, 2009
4 Posts
No Rating


Thank yo so much.

I will try to do this.




This user is offline



Sun, Feb 10, 2013 at 1:42:31 PM | Column drawing (Emergency)

#7

posting


active

Joined: Mon, Dec 14, 2009
4 Posts
No Rating


thank you so much for your helpings for 2 days. I would like to ask 1 more thing.



When I open rendering box I can't see crop at toolbar? do I need to donwload it from somewhere? or do I need to do something else?


This user is offline



Mon, Feb 11, 2013 at 9:32:55 AM | Column drawing (Emergency)

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


"When I open rendering box I can't see crop at toolbar? do I need to donwload it from somewhere?" - What are you talking about? don't understand....


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 11, 2013 at 5:03:55 PM | Column drawing (Emergency)

#9

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


What you want to do can definately be done but it cannot be properly explained in a series of back and forth posts on this site.

You need instance and type parameters, voids, solids. sweeps, extrusions etc. . . it's not as easy as ABC

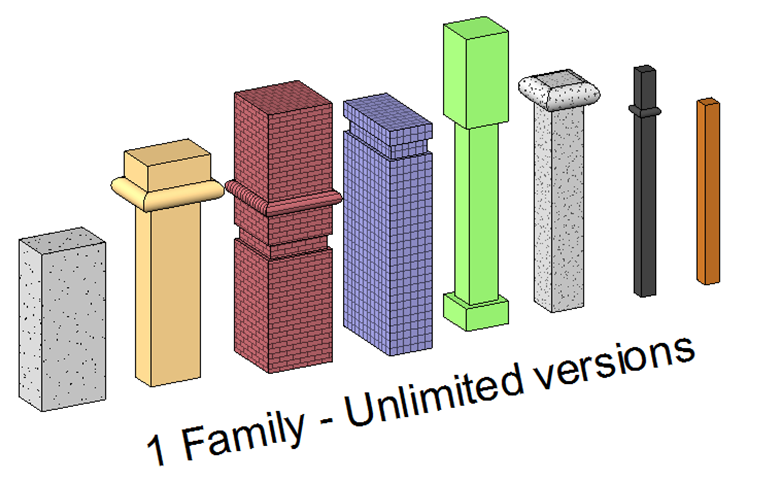

You answer is however laid out in this 2 hour video series linked below.

http://cadclips.com/REVIT-AC-2010-ArchitecturalColumn.aspx





Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline
