Forums >> Revit Building >> Technical Support >> Complex Roof situation

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 29, 2013 at 11:27:19 AM | Complex Roof situation

#1

ladyarch85


active

Joined: Fri, Sep 23, 2011
3 Posts
No Rating

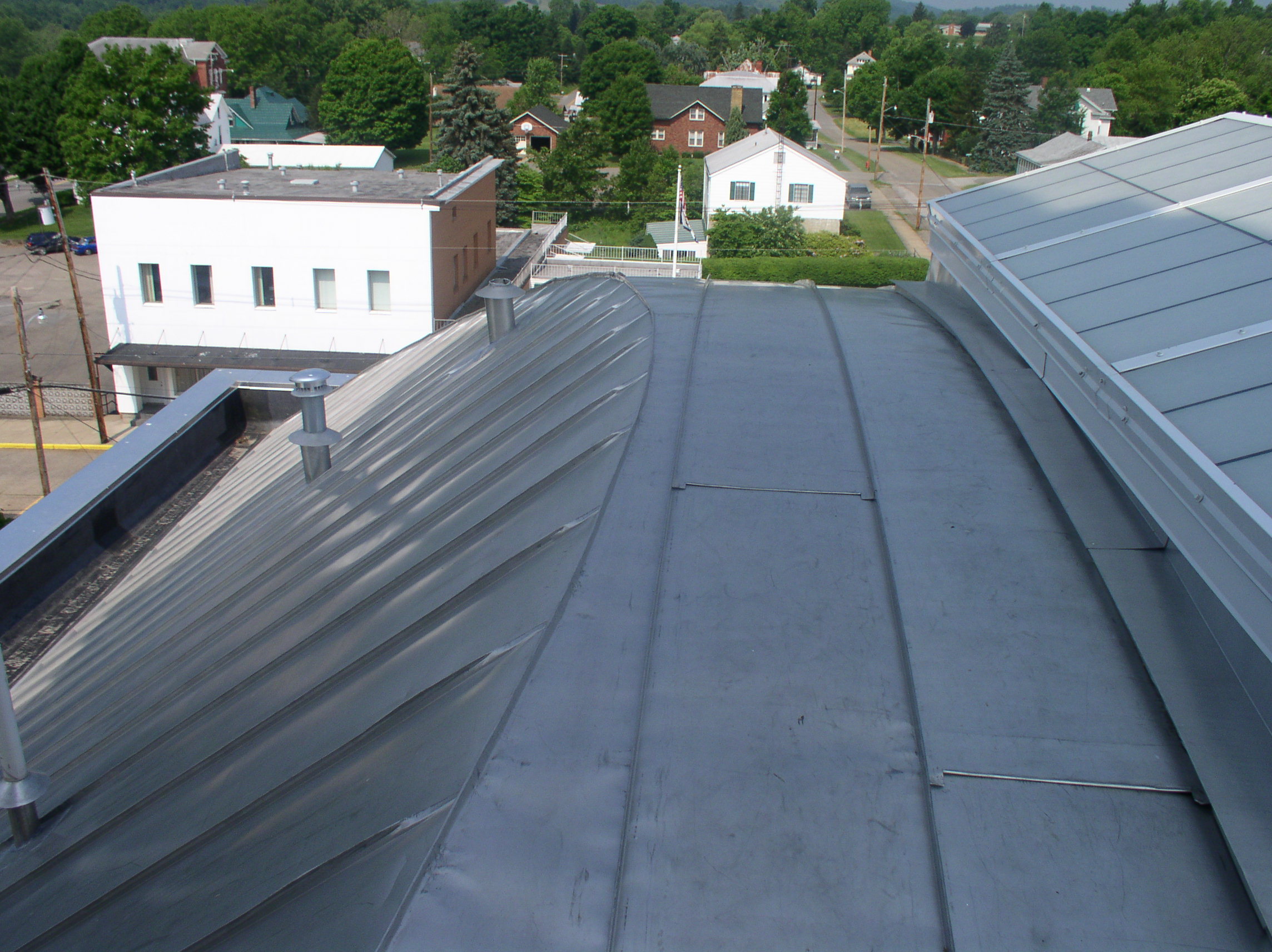

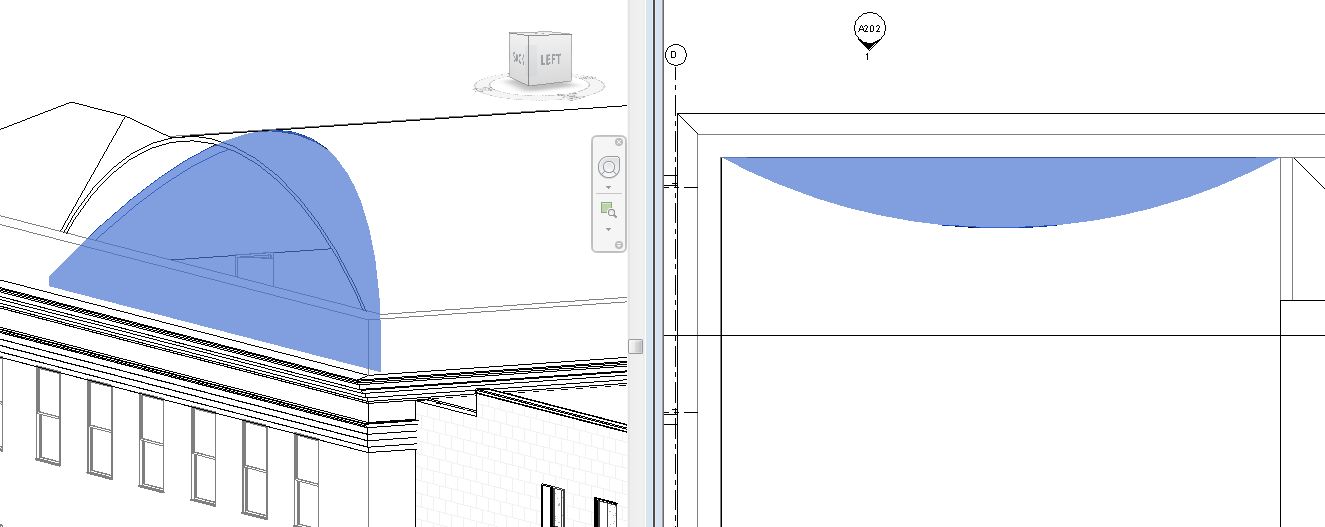

I'm trying to create the roof in the attached image. I created the curved part by extension, and the straight hip part by footprint, but I can't figure out how to merge or join them and cut the overhang off? Any suggestions on the best way to achieve this?

Oh, and I'm using Revit Architecture 2013. I found some old tutorials using blend sweeps and such, but they are outdated versons and I can't seem to figure out if thats the best way to attempt this.

Thanks!



Attached Images


This user is offline



Tue, Jan 29, 2013 at 11:30:36 AM | Complex Roof situation

#2

ladyarch85


active

Joined: Fri, Sep 23, 2011
3 Posts
No Rating


curved part by Extrusion*


This user is offline



Tue, Jan 29, 2013 at 12:08:43 PM | Complex Roof situation

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You can add an in-place void family to cut the roof.



Roofs can be joined but that may not be everything you need.


This user is offline



Tue, Jan 29, 2013 at 4:14:29 PM | Complex Roof situation

#4

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes

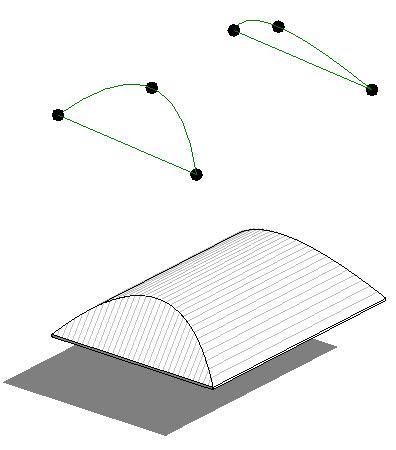

In place-mass, draw two arcs, and two lines. Select arcs, create form; select arc and line, create form, on both sides. Finish mass, do Roof by face.





Attached Images


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website

Wed, Jan 30, 2013 at 7:39:08 AM | Complex Roof situation

#5

ladyarch85


active

Joined: Fri, Sep 23, 2011
3 Posts
No Rating


Thank you, alfmedia! That's exactly what I needed!
