Forums >> Revit Building >> Technical Support >> Can't see my drawing when I drag it onto my sheet

CRB14

active

Joined: Fri, Oct 22, 2010
86 Posts
No Rating

Hi there,

I've created a new sheet, dragged the view I want onto the sheet but all I can see is the Title Scale 1:20 but I cant see drawing all. It's just a simple plan view that I want to dimension.

Have tried adjusting the scale, changing size crop, showing crop edges etc but can never see it.

Any ideas?

Thanks!

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Go directly into the view and make sure the crop window is where you want it.

This user is offline

CRB14

active

Joined: Fri, Oct 22, 2010
86 Posts
No Rating

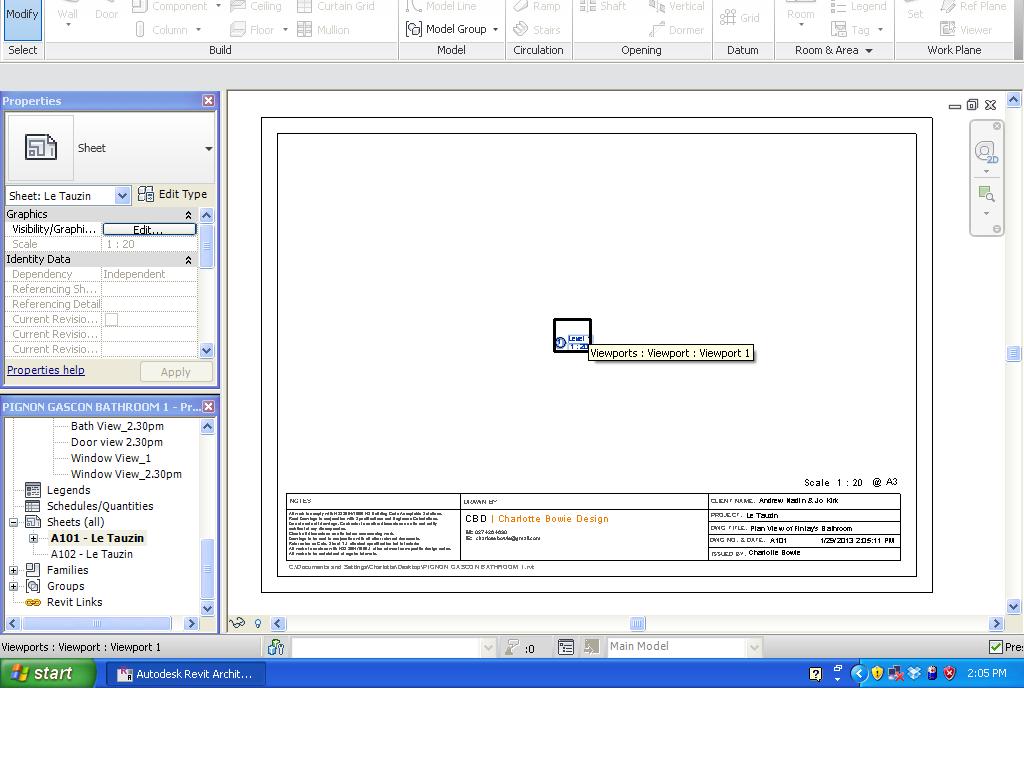

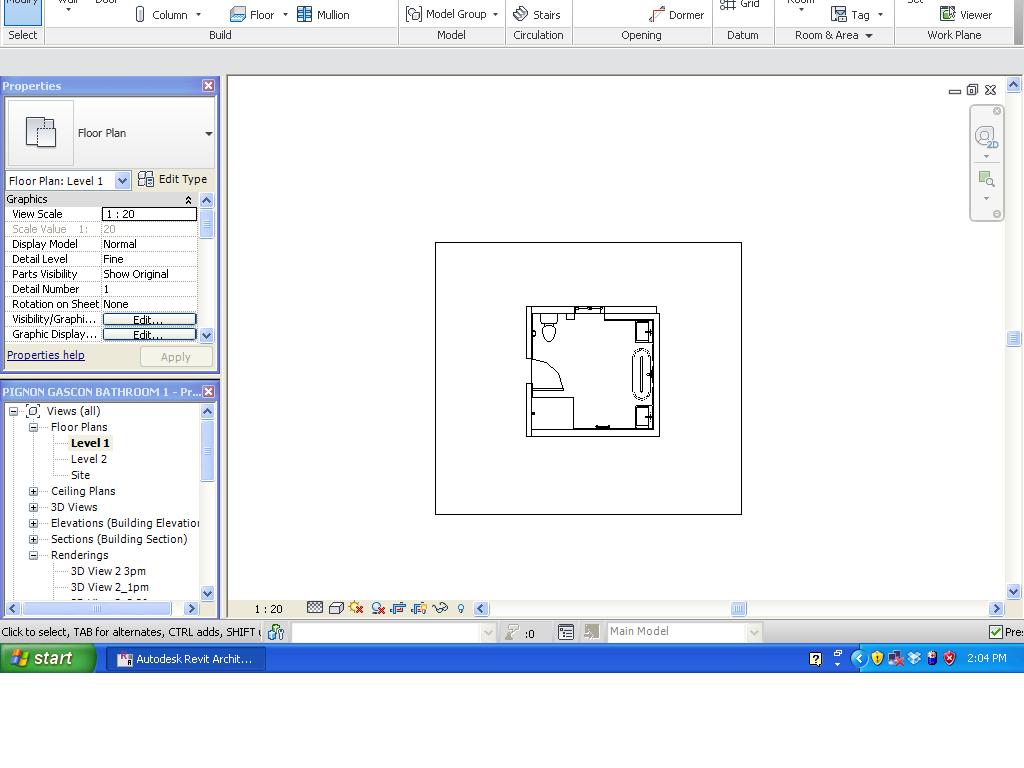

Thanks, yes think i did that by ensuring the crop box was appropriatel arranged around the drawing, see attachment below...1 shows the original view, 1 shows the sheet view where i cant see my drawing.

Hope to hear back soon

Thanks!

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

While in the view - not the sheet, change the scale of that view to something a lot larger and see what happens to the view on the sheet..

This user is offline

develocon

active

Joined: Wed, Nov 19, 2008
8 Posts
No Rating

I know this sounds silly, but try typing ZF (for Zoom fit), I have had this happen before where the view title drop in in the middle and the view is way off the sheet.

it could be something in the view title family or perhaps a CAD link/import in model with an origin that is far away.
