Forums >> Revit Systems >> Technical Support >> Revit MEP 2013 - How to hide cross hair on pipe while showing pipe centerline?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 22, 2013 at 3:43:49 PM | Revit MEP 2013 - How to hide cross hair on pipe while showing pipe centerline?

#1

ugikris


active

Joined: Mon, Jan 31, 2011
1 Posts
No Rating


Hi all.

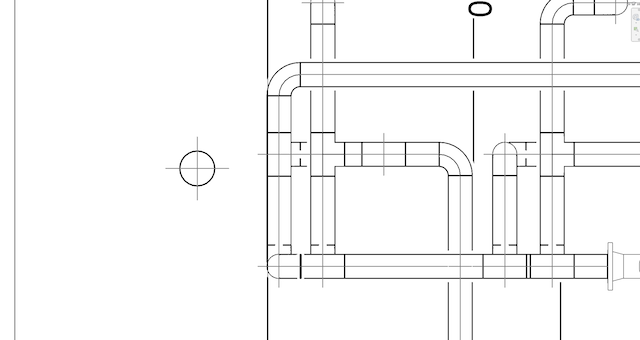

Apparently a new feature of Revit 2013 MEP is that pipes perpendicular to the view have their centerline drawn as cross hairs (see my screenshot, below). Now, my problem is that I want the view to have centerlines on pipe, but I don't want to see these crosshairs everywhere. In visibility and graphics I only have the option of showing/hiding centerlines as a whole, without the gradation of hiding the cross hairs and showing the pipe centerline.

Anyways, is there any way to do what I want? Can I edit the pipe profile/family somehow (if so, how?), or is that something that Revit generates internally?



Attached Images


This user is offline



Thu, Feb 14, 2013 at 2:52:28 PM | Revit MEP 2013 - How to hide cross hair on pipe while showing pipe centerline?

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


The crosshair is actually the centerline(s) in the family.  There is not a way to shut off the crosshairs and keep the centerline on.


This user is offline

View Website

Thu, Jun 12, 2014 at 6:37:39 AM | Revit MEP 2013 - How to hide cross hair on pipe while showing pipe centerline?

#3

stevewildman


active

Joined: Mon, Dec 3, 2012
3 Posts
No Rating


I have managed to hide the crosshairs for pipe work.

Within the visibility/graphics settings - in the filter list drop down select piping and within pipes turn off center line.


This user is offline
