Forums >> Revit Building >> Technical Support >> Rotating Fill Patterns

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 21, 2013 at 7:08:24 PM | Rotating Fill Patterns

#1

my74porsche914


active

Joined: Mon, Oct 23, 2006
10 Posts
No Rating


I applied a 1 hour fire rating fill pattern in a wall to turn on when in course mode, it seems to work well with horizontal and vertical walls

My problem is:

I have a door family that i have a generic annotation family (this family has the 1 hour fill pattern as used above)

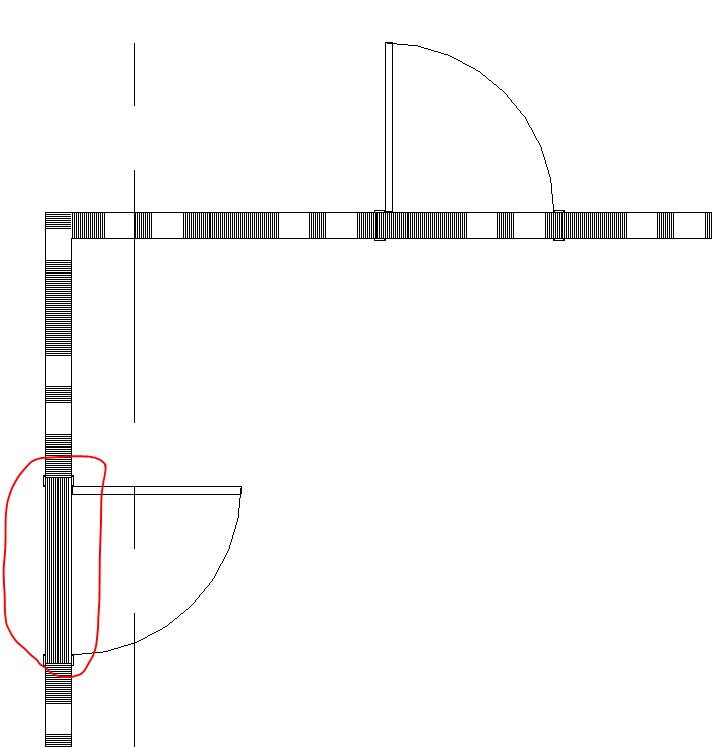

but when I insert the door in a vertical wall the fill pattern stays like its in the horizontal postition

any ideas?



Attached Images


This user is offline

View Website

Mon, Jan 21, 2013 at 7:32:22 PM | Rotating Fill Patterns

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


Use a Detail Component family to create your filled region instead of Generic Annotation.  You need to use a MODEL pattern type instead of a DRAFTING pattern type and you cannot create a model pattern type using the generic annotation family.


This user is offline

View Website

Wed, Jan 23, 2013 at 4:05:19 PM | Rotating Fill Patterns

#3

my74porsche914


active

Joined: Mon, Oct 23, 2006
10 Posts
No Rating


Teafoe, that worked

but now i have another issue that someone can shed light to, lol

I used a detail component that that has my desired model fill pattern inserted into my door family. In the door family I have that fill pattern with a yes/no parameter and visibility to show only on course mode.

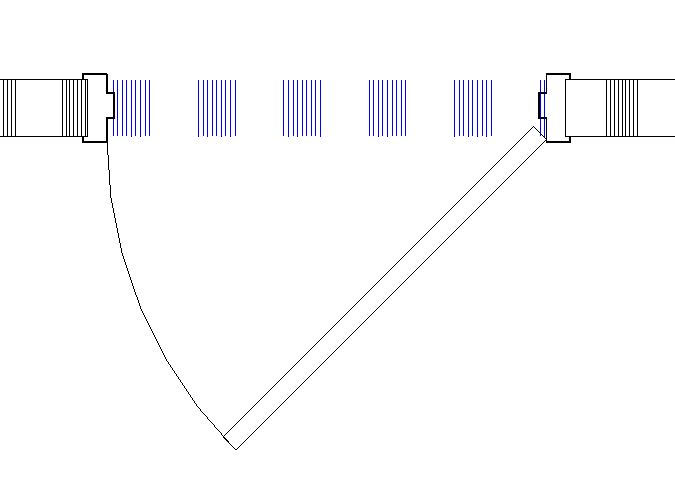

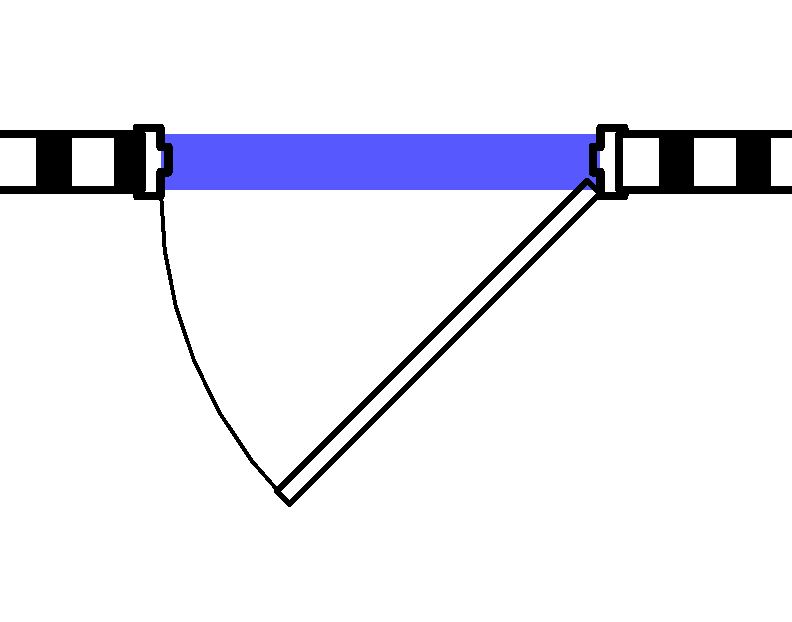

wehn inseted into project, course mode show my fill pattern appears on screen shaded

but if I change to thin lines, it shows correctly



Attached Images


This user is offline

View Website

Wed, Jan 23, 2013 at 4:06:26 PM | Rotating Fill Patterns

#4

my74porsche914


active

Joined: Mon, Oct 23, 2006
10 Posts
No Rating


there is 2 images attached above


This user is offline

View Website

Wed, Jan 23, 2013 at 4:33:38 PM | Rotating Fill Patterns

#5

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


Does it appear correct in the family?  Can you attach the door family so I can take a look at it?


This user is offline

View Website

Wed, Jan 23, 2013 at 4:49:10 PM | Rotating Fill Patterns

#6

my74porsche914


active

Joined: Mon, Oct 23, 2006
10 Posts
No Rating


family attached below



This user is offline

View Website

Mon, Jan 28, 2013 at 1:41:41 PM | Rotating Fill Patterns

#7

my74porsche914


active

Joined: Mon, Oct 23, 2006
10 Posts
No Rating


I guess not luck


This user is offline

View Website

Mon, Jan 28, 2013 at 2:07:14 PM | Rotating Fill Patterns

#8

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


It has to do with the scale of your fill pattern in your Detail Family.  It only shows at 1/16" and smaller, any bigger and it becomes one solid fill.


This user is offline

View Website

Mon, Jan 28, 2013 at 2:30:02 PM | Rotating Fill Patterns

#9

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes

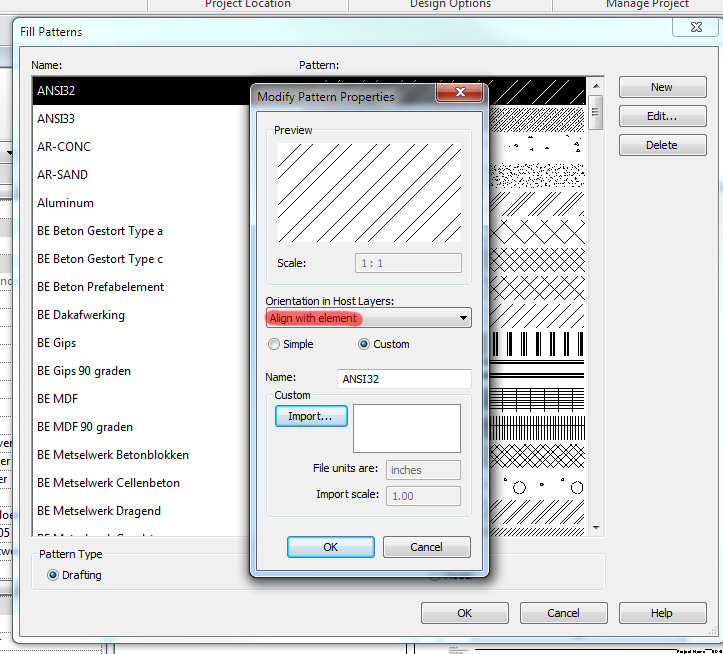

Try this setting..



Attached Images


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Mon, Jan 28, 2013 at 2:34:03 PM | Rotating Fill Patterns

#10

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


It is already set to the align with element setting. The problem now is the scale of the fill pattern.



Edited on: Mon, Jan 28, 2013 at 8:34:27 AM

This user is offline

View Website
