Forums >> Revit Building >> Technical Support >> Array Arc with an offset from centre

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 7, 2013 at 11:43:59 AM | Array Arc with an offset from centre

#1

JRPcad


active

Joined: Thu, Jul 1, 2010
136 Posts
No Rating


Hi all,

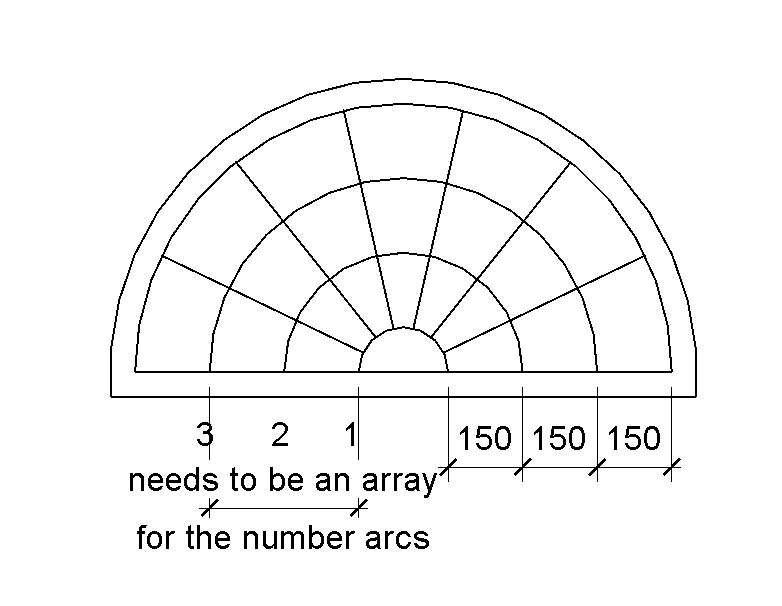

I'm having a bit of trouble trying to create a family which is basically a half round window with spokes/mullions that array from a centre. (see attached image)



basically i want the spokes/mullions in both directions to be parametric, I'm happy with working out the math for these but can't for the life of me work out how to get Revit to let me do what I want. Hopefully one of the genius' here can shed some light on it for me Winking

The outward splaying spokes are a simple radial array, it's the arcs that need to be an array to allow for different numbers from the centre, hopefully this can be done Winking

Thanks in advance



Attached Images


-----------------------------------

For Architectural Services visit www.jrpcad.co.uk

This user is offline

View Website

Mon, Jan 7, 2013 at 1:25:50 PM | Array Arc with an offset from centre

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


Use ref lines to control the arcs.  These can have parameters to control them.


This user is offline



Mon, Jan 7, 2013 at 1:47:01 PM | Array Arc with an offset from centre

#3

JRPcad


active

Joined: Thu, Jul 1, 2010
136 Posts
No Rating


yeah but is there a way of arraying the arcs, so i can add an "arc number" parameter to the family so rather than just having say 3 internal arcs, I may want 5. Obviously each arc will be a different size so a standard array doesn't work. Is there a way to achieve this?



Edited on: Mon, Jan 7, 2013 at 7:48:49 AM

-----------------------------------
