Forums >> Revit Building >> Technical Support >> Beam system not sitting on beam

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 28, 2012 at 1:54:14 PM | Beam system not sitting on beam

#1

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes

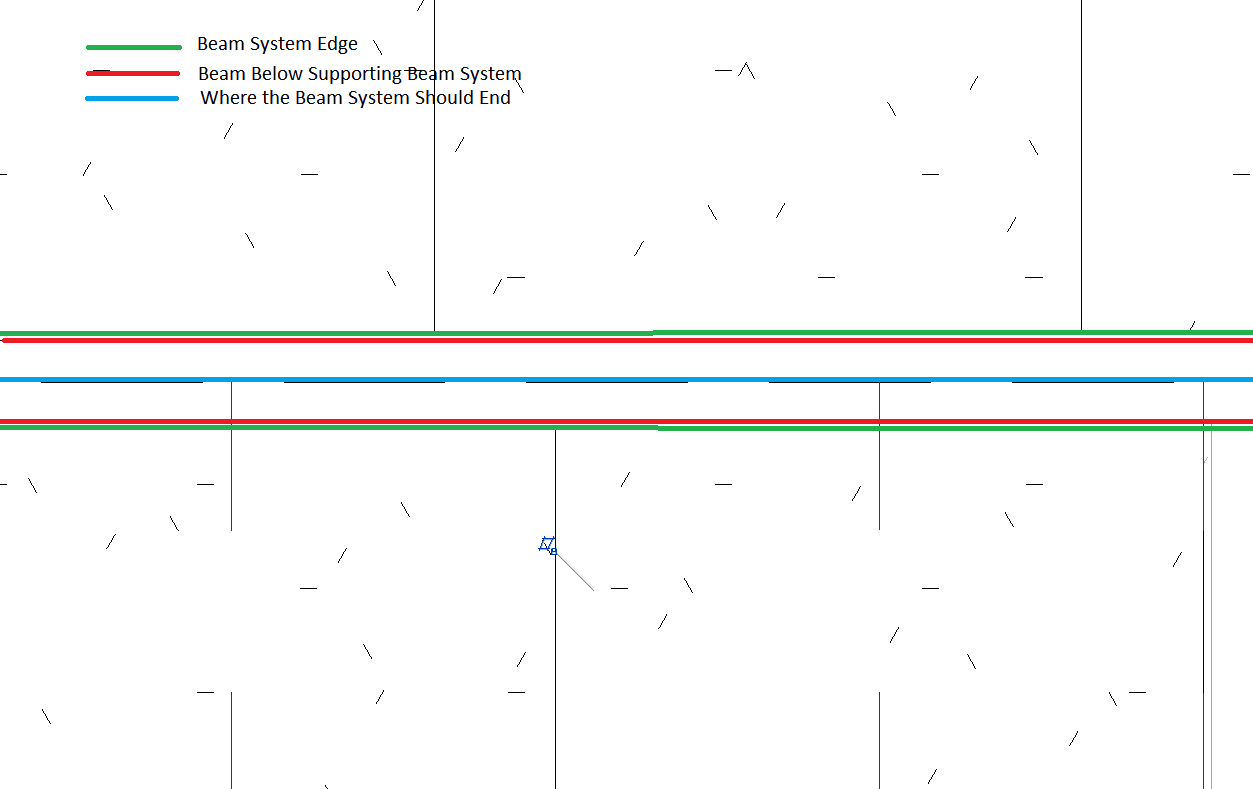

I am not really familiary with beam systems so I may be missing something.  I created a beam system for concrete plank that will be spanning from wall to steel beam.  I sketched the outline to exatly where I wanted it and it lines up perfectly on the wall side but I drew it to the center of the beam becuase I want it to sit on top and it will not overlap the beam!  It stops short by 1/2" from the outside of the flange.  I know I can change that and 1/2" would be fine if it was 1/2" from the center (like I drew it) instead of from the face of the flange.  Is there a way to tell the beam system to overlap the beam without actually changing the start/end extensions of each individual plank?  See attachement for visual.
