Forums >> Revit Building >> Technical Support >> Problem with intersections between slabs(with finish)and columns

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 28, 2012 at 11:00:38 AM | Problem with intersections between slabs(with finish)and columns

#1

mihaela


active

Joined: Sat, Apr 8, 2006
2 Posts
No Rating


Hello,

I started to use Revit 2 month ago and I came across with the following problems: I dont know how to make a clean intersecton between the the floors (made of 2 layers: concrete + finish) and columns.

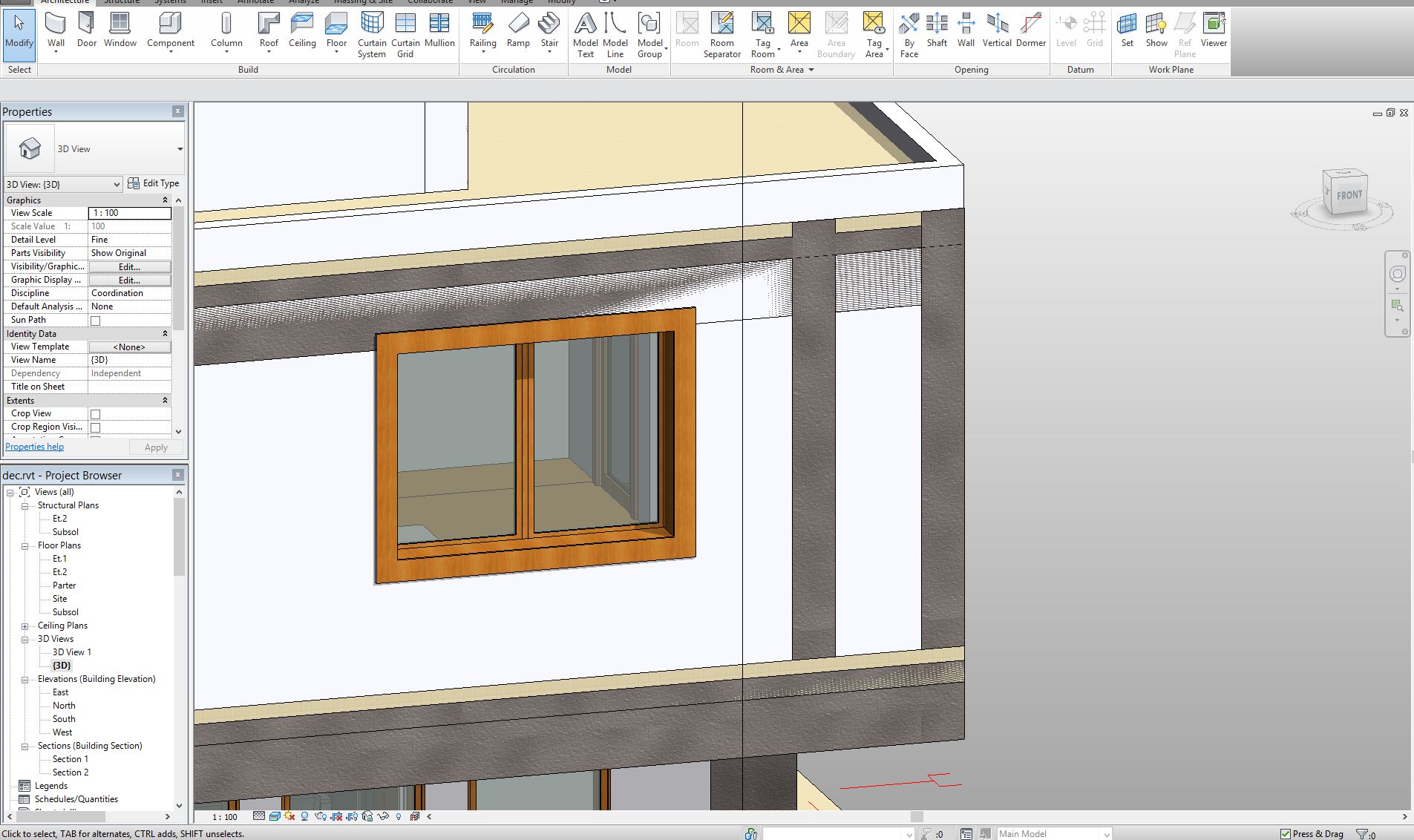

As you can see in the attached images the columns (darker colour) normaly (without offset) start right above the finish and this is not

correct and end at the upper side of the floor -again not correct.

Do I have to offset the columns to have a normal intersection?

The same problem with the beams...i had to offset them with the width of the finish layer

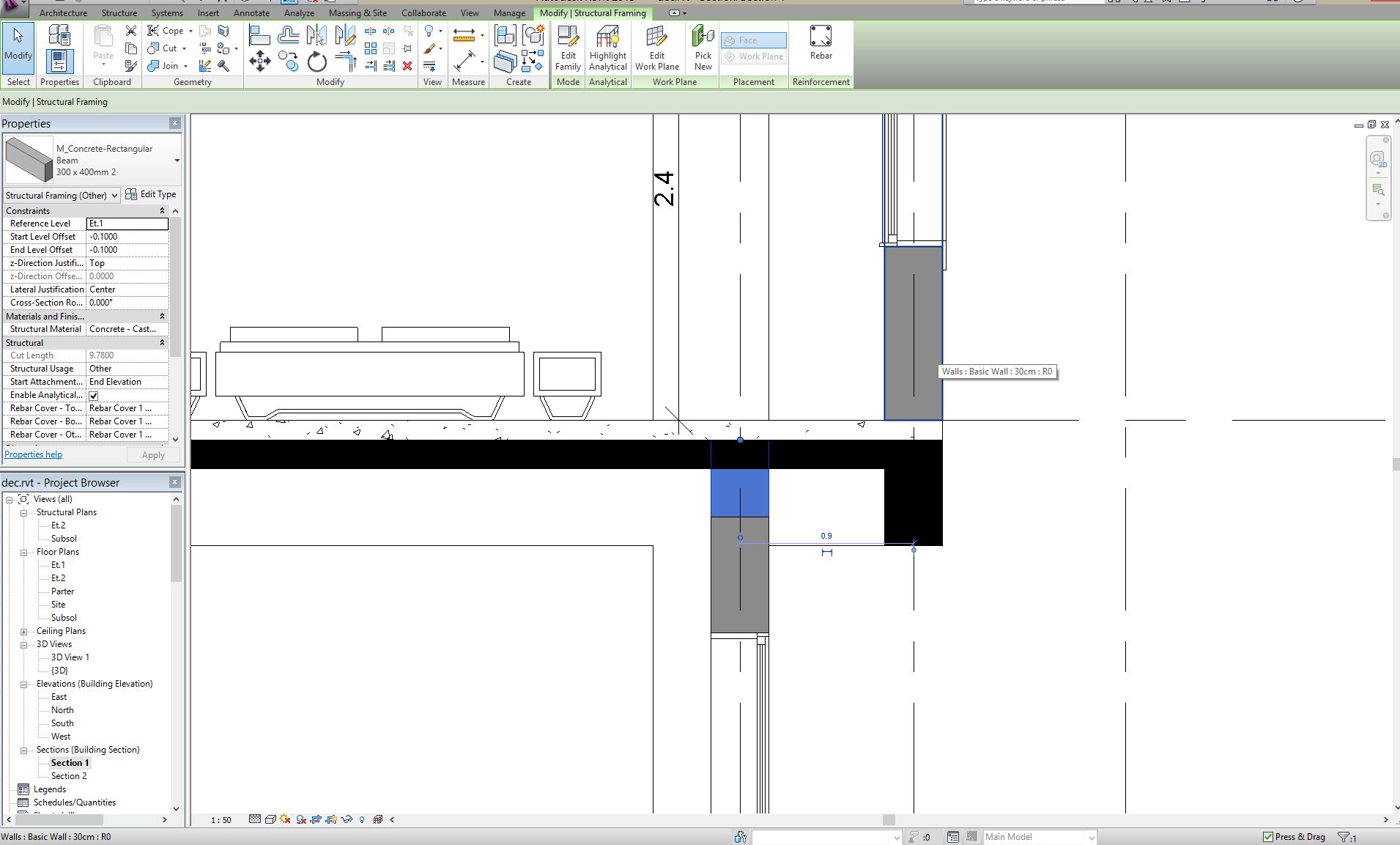

Attached Images


This user is offline



Fri, Dec 28, 2012 at 11:06:55 AM | Problem with intersections between slabs(with finish)and columns

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Your columns will go to whatever level you tell them to.  Create a level such as top of slab and top of column and have the column assiciate with those 2 levels.  Otherwise if you have just a top of floor level then yes you will need to offest the column to get down past the finishes.



You need to tell Revit what you want it to do, it cant just assume that you want it at the top or bottom of the slab instead of the finish floor.



Edited on: Fri, Dec 28, 2012 at 11:08:25 AM

This user is offline

View Website

Fri, Dec 28, 2012 at 11:30:11 AM | Problem with intersections between slabs(with finish)and columns

#3

mihaela


active

Joined: Sat, Apr 8, 2006
2 Posts
No Rating

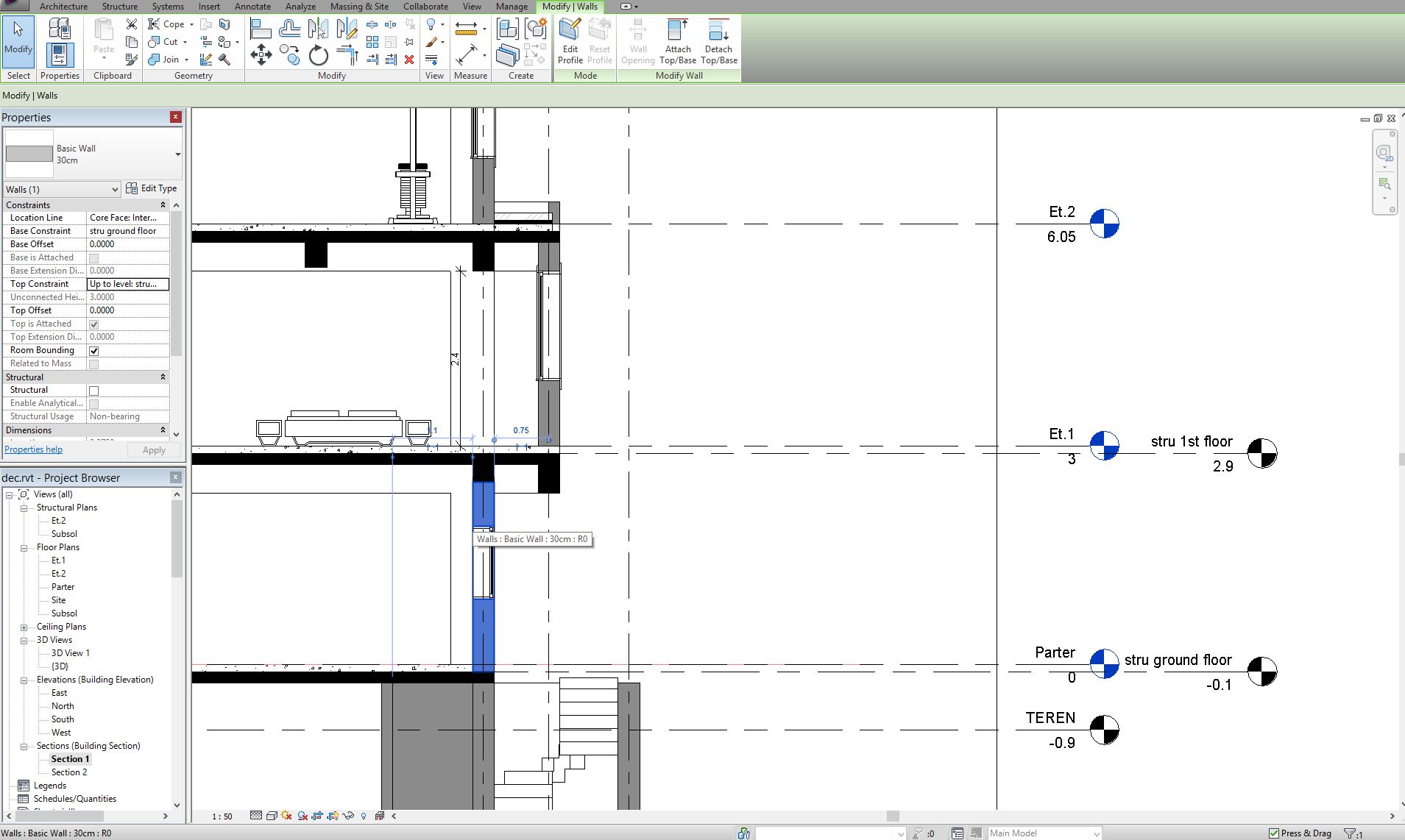

Like in the attached picture?

This solve the both problems,

Thank you.





Attached Images


This user is offline



Fri, Dec 28, 2012 at 11:31:58 AM | Problem with intersections between slabs(with finish)and columns

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Yup just like that.


This user is offline

View Website
