Forums >> Revit Building >> Tips & Tricks >> beam join command

timOthyj

active

Joined: Sun, Jun 29, 2003
102 Posts

So I just figured out one thing in the revit 2013 and now another thing is givinf me grief..The Beam/Column join command works great ..I have some beams sitting on my curtain wall , and I can get one corner to join but when I try the other corner, only 1 beam is highlighted or darkend and the other beam I need to connect to is greyed out and Im unable to join..What am I doing wrong? They are the same types and on the same level..

This user is offline

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

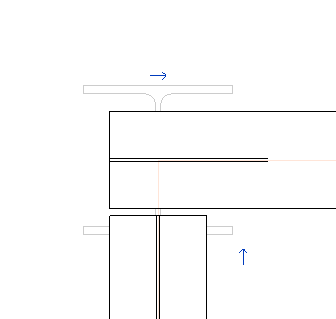

To make the Beam Column Join tool work the end points (round nodes) of the elements must be in the same place. Once the nodes are coincidental the tool works and the little blue arrows show up. Perhaps an image ?

Attached Images

-----------------------------------

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150

This user is offline

View Website

SonJonSon

active

Joined: Sun, Dec 23, 2012
1 Posts
No Rating

This menu item to either force the selected note to beam to the previous note or to break the beam .
