Forums >> Revit Building >> Technical Support >> Sweep profile rotates
|
|
|
active
Joined: Wed, May 13, 2009
30 Posts
No Rating |
Revit 2012.

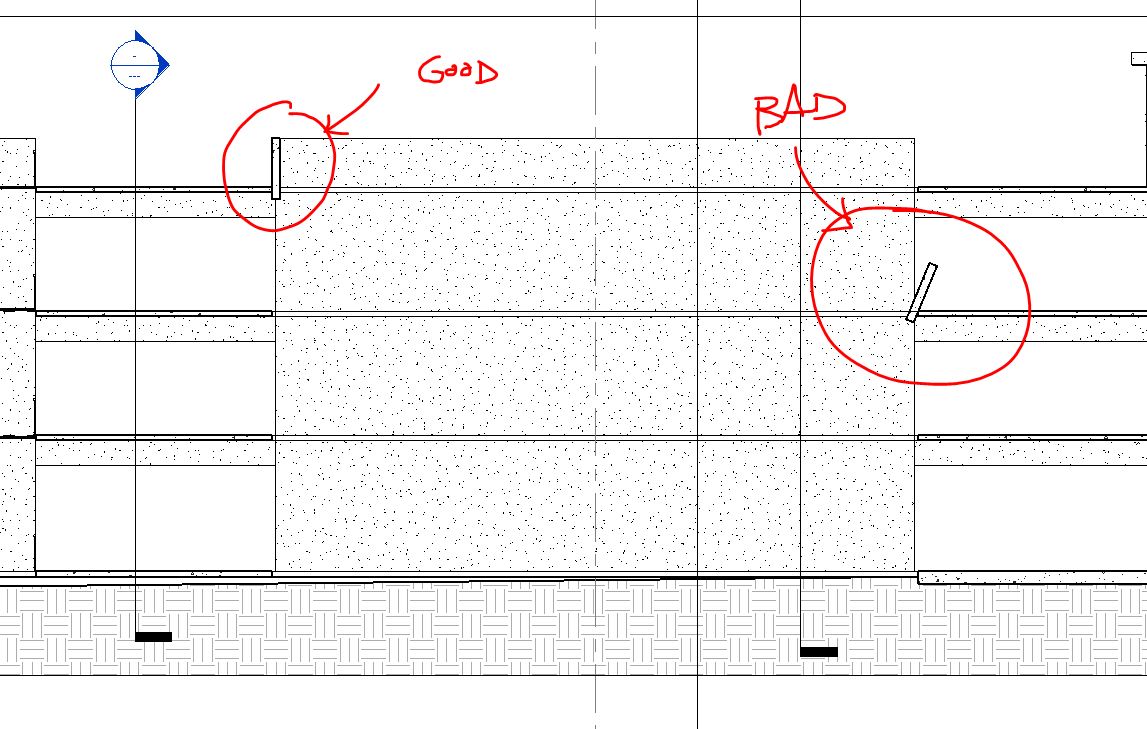

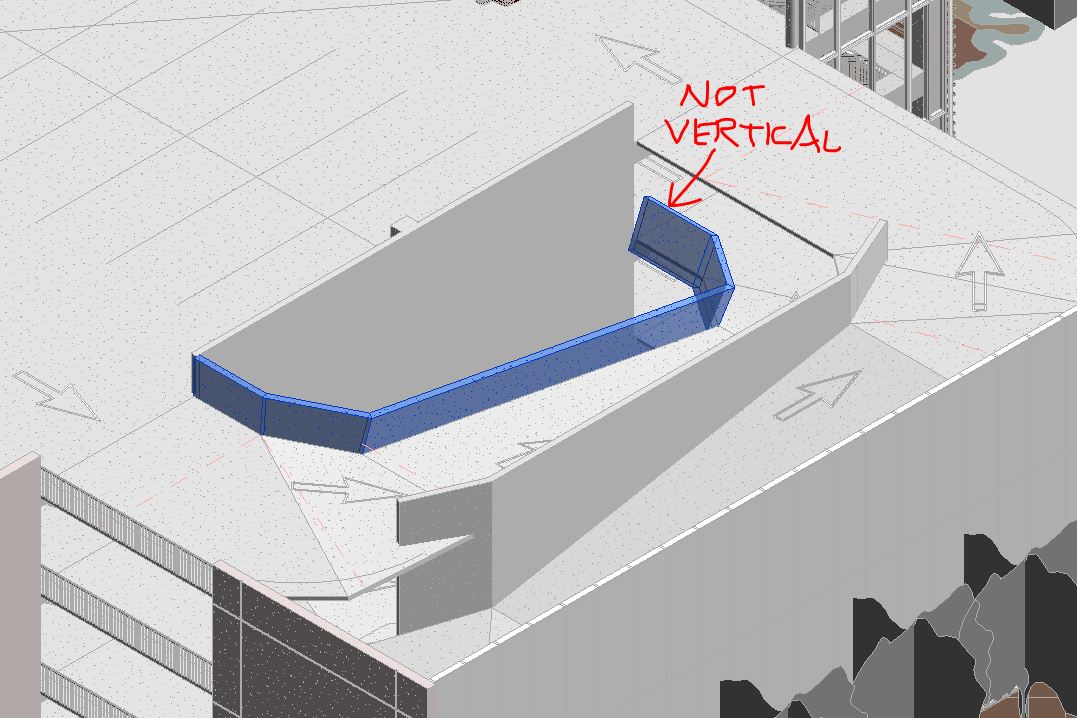

I cannont manage to get my sweep profile to remain vertical- it rotates with the angle of the picked 3D path (see attached). I have tried skething the profile, and creatign a profile family (both with and without the "rotates with component" box checked).
Any thoughts?
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
I would just have done this as a wall.
|
This user is offline |
|
|
|
active
Joined: Wed, May 13, 2009
30 Posts
No Rating |
Using walls would be much more labor intensive, and if I decided to change the profile of the spandrel, like say to put a reveal in it, I'd have to model the reveal out of sweeps anyway (wall sweeps are either vertical or horizontal), which would give me the same problem:
Sweep profile will not remain vertical.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Is this a floor edge sweep instead of a model in place sweep?
|
This user is offline |
|
|
|
active
Joined: Wed, May 13, 2009
30 Posts
No Rating |
I have tried it both ways. The floor edge sweep won't work with the slope, only on level edges. The in place sweep tilts over.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Swept Blend is the way
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Walls!
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
yeah... I was looking your images (both of them) and you can do that easly with walls and a couple of ref.planes
Edited on: Tue, Oct 23, 2012 at 12:42:11 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, May 13, 2009
30 Posts
No Rating |

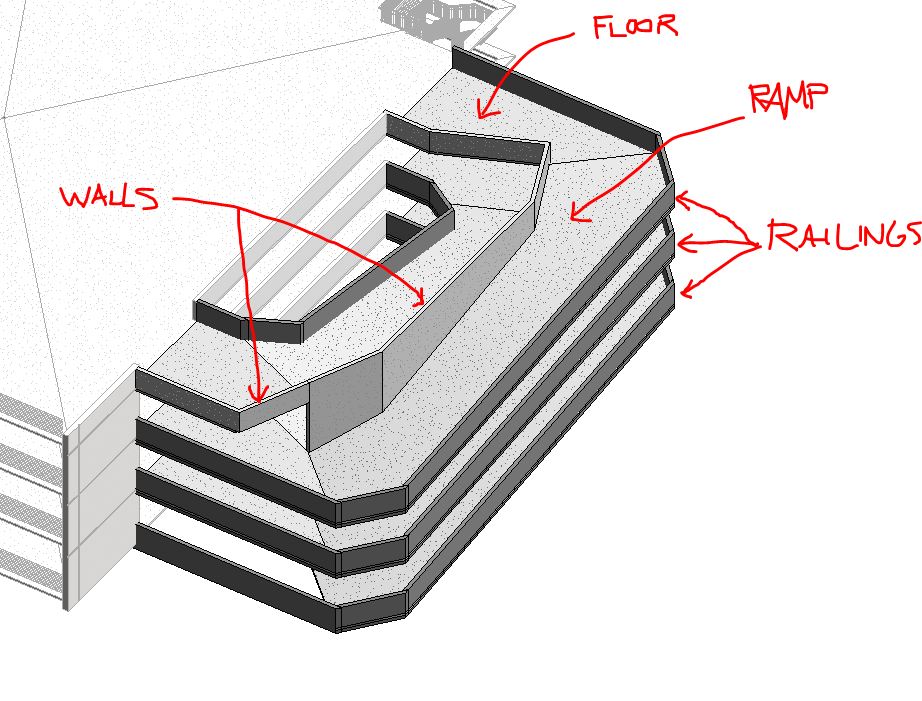

Using ramps and a profile family for the railing works well...
|
This user is offline |
|
|
|
