Forums >> Revit Building >> Technical Support >> Revit 2013 - Cut Wall under stairs.

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Oct 18, 2012 at 3:06:23 AM | Revit 2013 - Cut Wall under stairs.

#1

ossosso


active

Joined: Fri, May 23, 2008
18 Posts
No Rating


Hi!

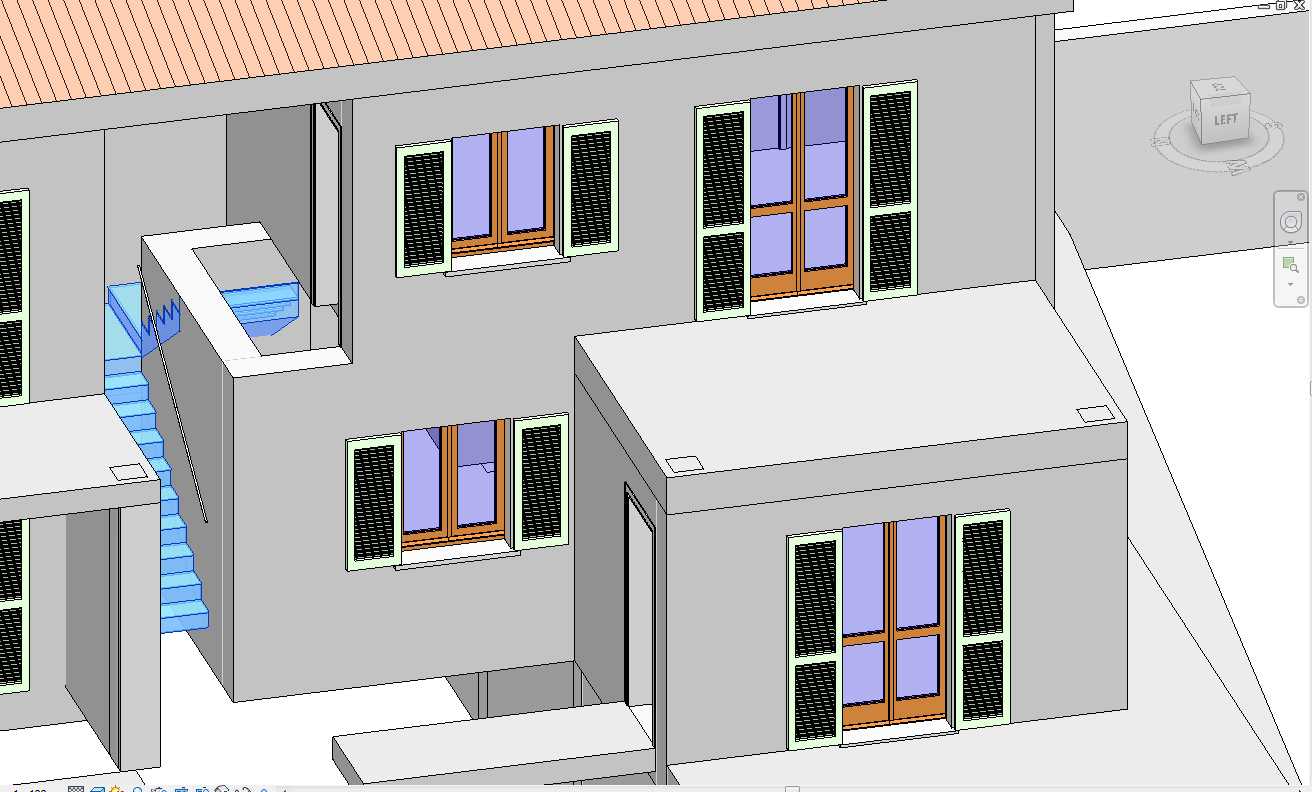

Please take a lookt to the attachment. You can see a stairs which intersect a wall. I'd like the wall to be cut by the stairs which goes up.

Which method? Thank you.



Attached Images


This user is offline



Thu, Oct 18, 2012 at 3:23:10 AM | Revit 2013 - Cut Wall under stairs.

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


2 ways:

1º Create a section view in that stair, create a "ref. plane" under the stair, attach the wall to that ref. plane.

2º Create a section view in that stair, select the wall and "edit profile", sketch the new shape of that wall under the stair.





Edited on: Thu, Oct 18, 2012 at 3:25:53 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
