Forums >> Revit Building >> Technical Support >> Grid Labels not visible while drawing a grid

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Oct 14, 2012 at 7:25:59 AM | Grid Labels not visible while drawing a grid

#1

salahdin


active

Joined: Sun, Oct 14, 2012
6 Posts
No Rating


Hi.

when ever i start a new project i draw its grid - but when im doing it its labels arre not visible for example A,B,C.... and 1,2,3....



anyone can help?


This user is offline



Mon, Oct 15, 2012 at 7:22:26 AM | Grid Labels not visible while drawing a grid

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


type VG -  then in the annotation tab, turn grids on.


This user is offline



Mon, Oct 15, 2012 at 8:00:08 AM | Grid Labels not visible while drawing a grid

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


If it is just the grid bubble that is not showing you need to change it in the type editor, if a grid bubble is not loaded you need to load one first.


This user is offline

View Website

Mon, Oct 15, 2012 at 8:03:33 AM | Grid Labels not visible while drawing a grid

#4

salahdin


active

Joined: Sun, Oct 14, 2012
6 Posts
No Rating


nope not working - probably im not explaining properly.

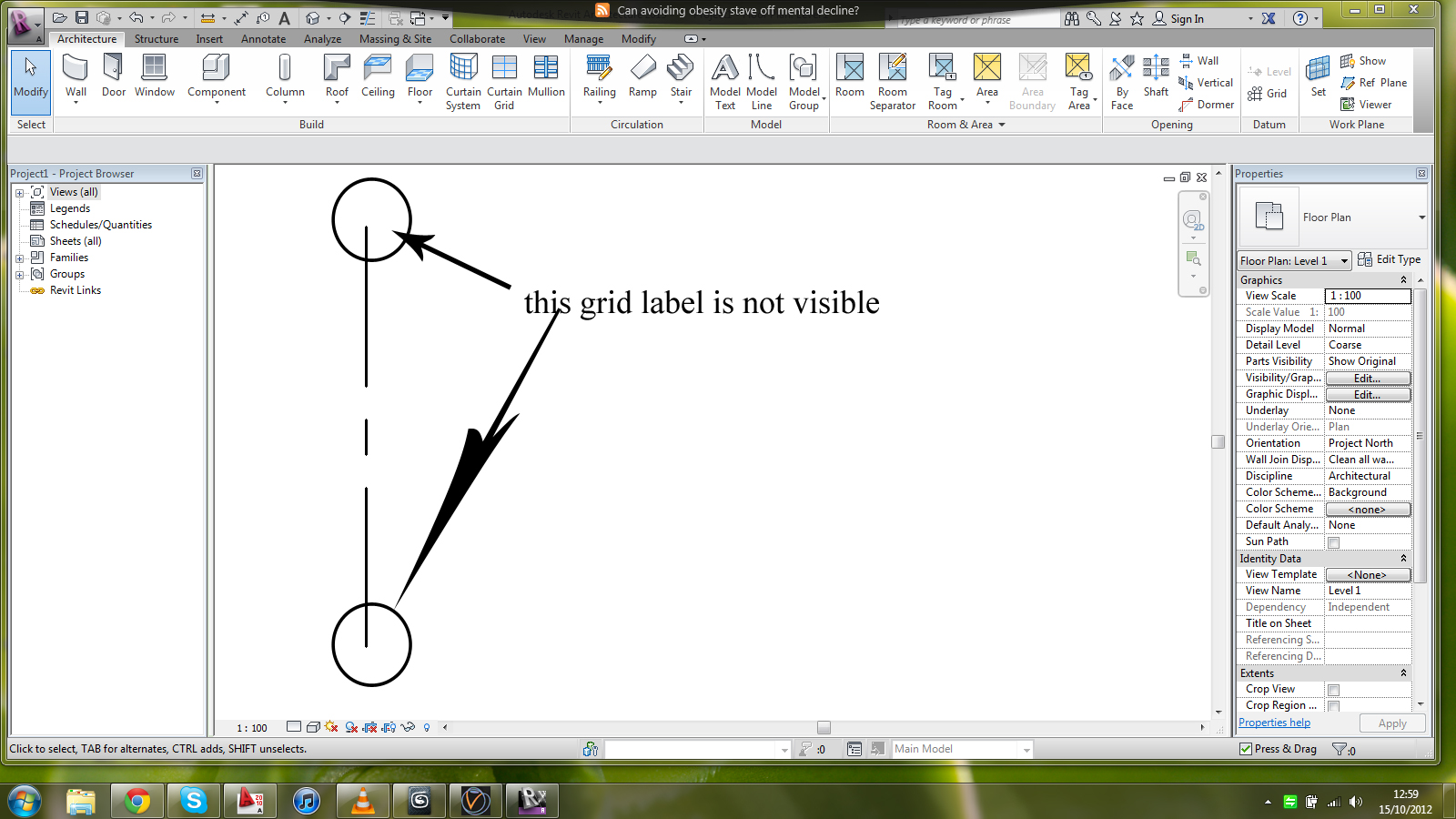

let me attach an image - thanks btw



Attached Images


This user is offline



Mon, Oct 15, 2012 at 8:05:15 AM | Grid Labels not visible while drawing a grid

#5

salahdin


active

Joined: Sun, Oct 14, 2012
6 Posts
No Rating


teafoe - its the grid bubble. can u explain that a bit please.


This user is offline



Mon, Oct 15, 2012 at 8:17:19 AM | Grid Labels not visible while drawing a grid

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


It appears that you are not using the standard grid head, otherwise the column line would be at the center of the bubbles.  Therefore, the problem is probably your grid head family and we don't know what you did.


This user is offline



Mon, Oct 15, 2012 at 8:28:00 AM | Grid Labels not visible while drawing a grid

#7

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


WWHub is correct.  Try using an out of the box grid bubble and see if that solves your problem. Then look into how to fix your custom grid bubble.


This user is offline

View Website

Mon, Oct 15, 2012 at 3:29:21 PM | Grid Labels not visible while drawing a grid

#8

salahdin


active

Joined: Sun, Oct 14, 2012
6 Posts
No Rating


ookay - thanks alot guys - ill try that

basically its just my second day with revit and trying to work with revit since 2 years now but its kind of scary. but this time im not gonna quit. Smile thanks alot - thats  a great help


This user is offline
