Forums >> Revit Building >> Technical Support >> Wondering how to properly model this roof....
|
|
|
active
Joined: Sun, Aug 14, 2011
18 Posts
No Rating |
I understand the basic roof commands and have been able to do dormers without any issue in the past. However, I have a roof design which has me scratching my head on how to properly model. The attached image is made with two square roofs of the same pitch, size, etc. I am trying to figure out how to remove the internal portions of the roof where they cross for living space.
I am using Revit LT 2013
Thank you
|
This user is offline |
|
 | |
|
|
active
Joined: Wed, Sep 26, 2007
162 Posts
 |

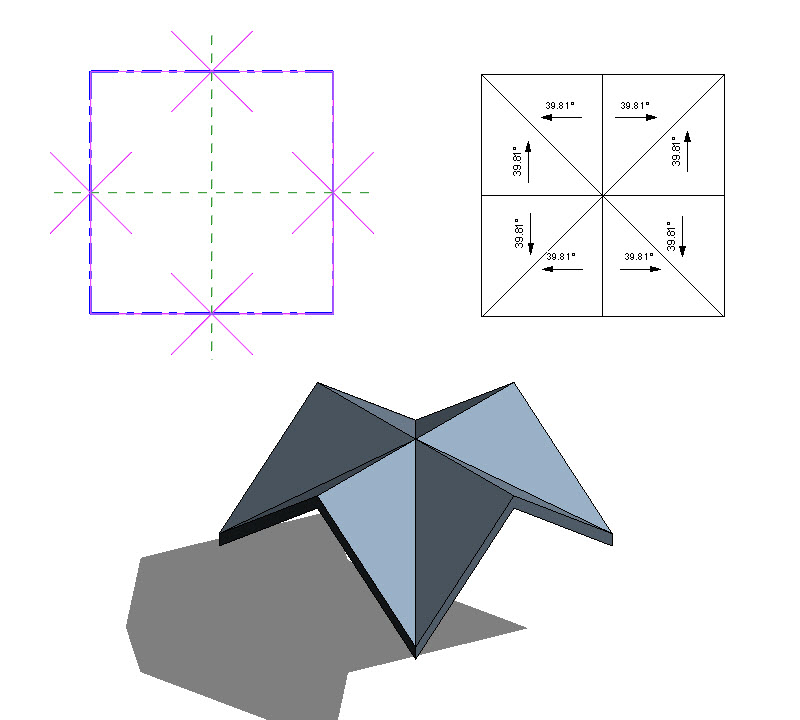

One way to do it is with Roof by footprint with 8 slope arrows.
-----------------------------------
Planta1 Revit Online Consulting | info@planta1.com |
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
That's the simple way...
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Sun, Aug 14, 2011
18 Posts
No Rating |
I had tried that method originally and for some reason it couldn't create the roof. The exact wording of the error I don't recall. My solution was to model each gable in the same method you showed and then join the 4 gables together. Definitely more complicated, but achieved the result. Thank you.
|
