Forums >> Revit Building >> Technical Support >> Walls from multiple floors above showing in site plan

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Oct 2, 2012 at 11:35:24 PM | Walls from multiple floors above showing in site plan

#1

MacDaddy1


active

Joined: Fri, Sep 21, 2012
8 Posts
No Rating


Hello,

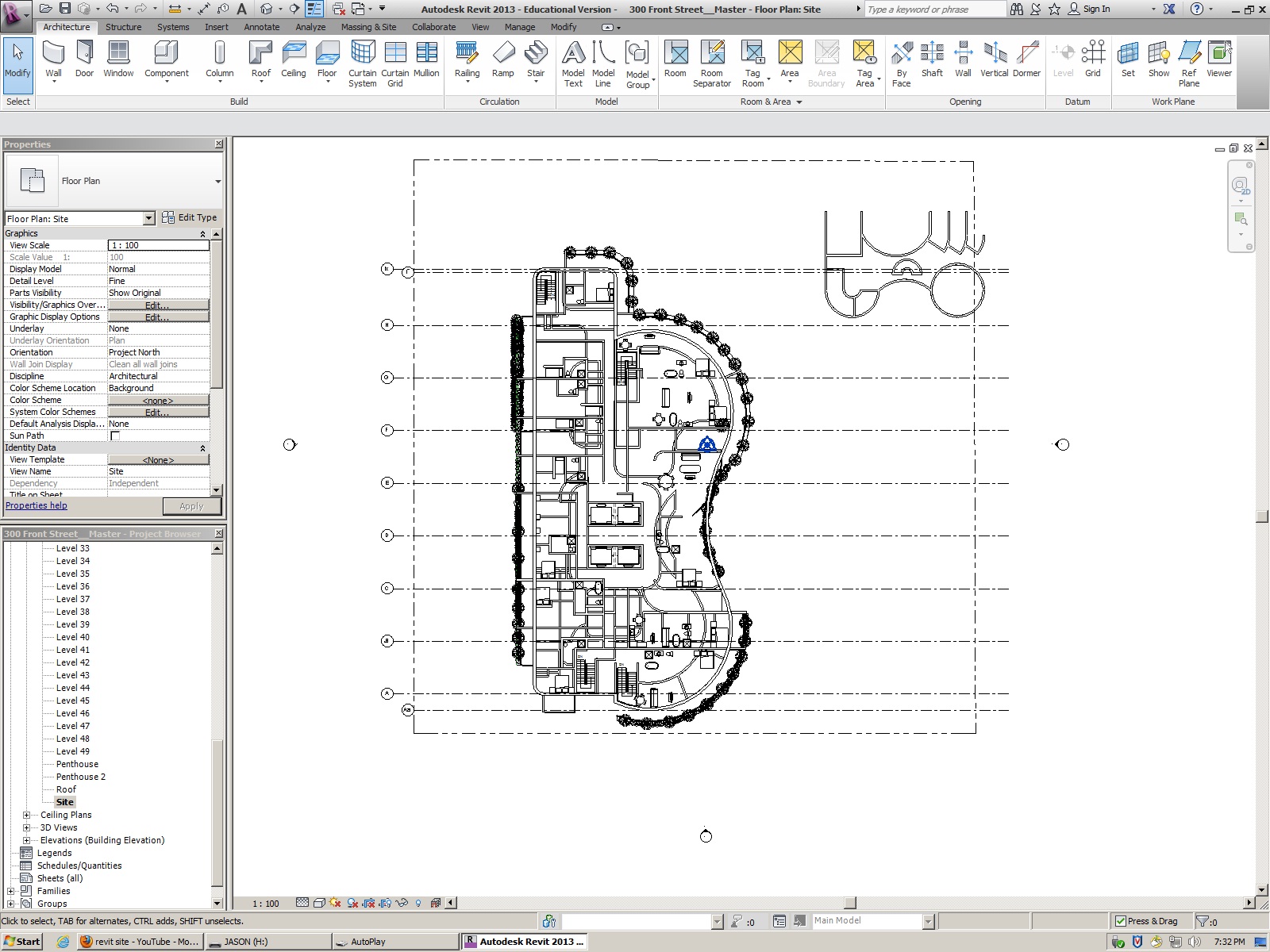

I'm having a bit of an issue in my current Revit project. We're creating a 52 story highrise and any differentiation in wall placements throughout the floors shows up on our site plan. Now when we view our site plan there are many different walls from floors

above that are visible. Can anyone be of assistance on this issue?



-GC



Attached Images


This user is offline



Wed, Oct 3, 2012 at 8:21:19 AM | Walls from multiple floors above showing in site plan

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


In that plan view change the "Underlay"




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Oct 3, 2012 at 9:02:00 PM | Walls from multiple floors above showing in site plan

#3

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

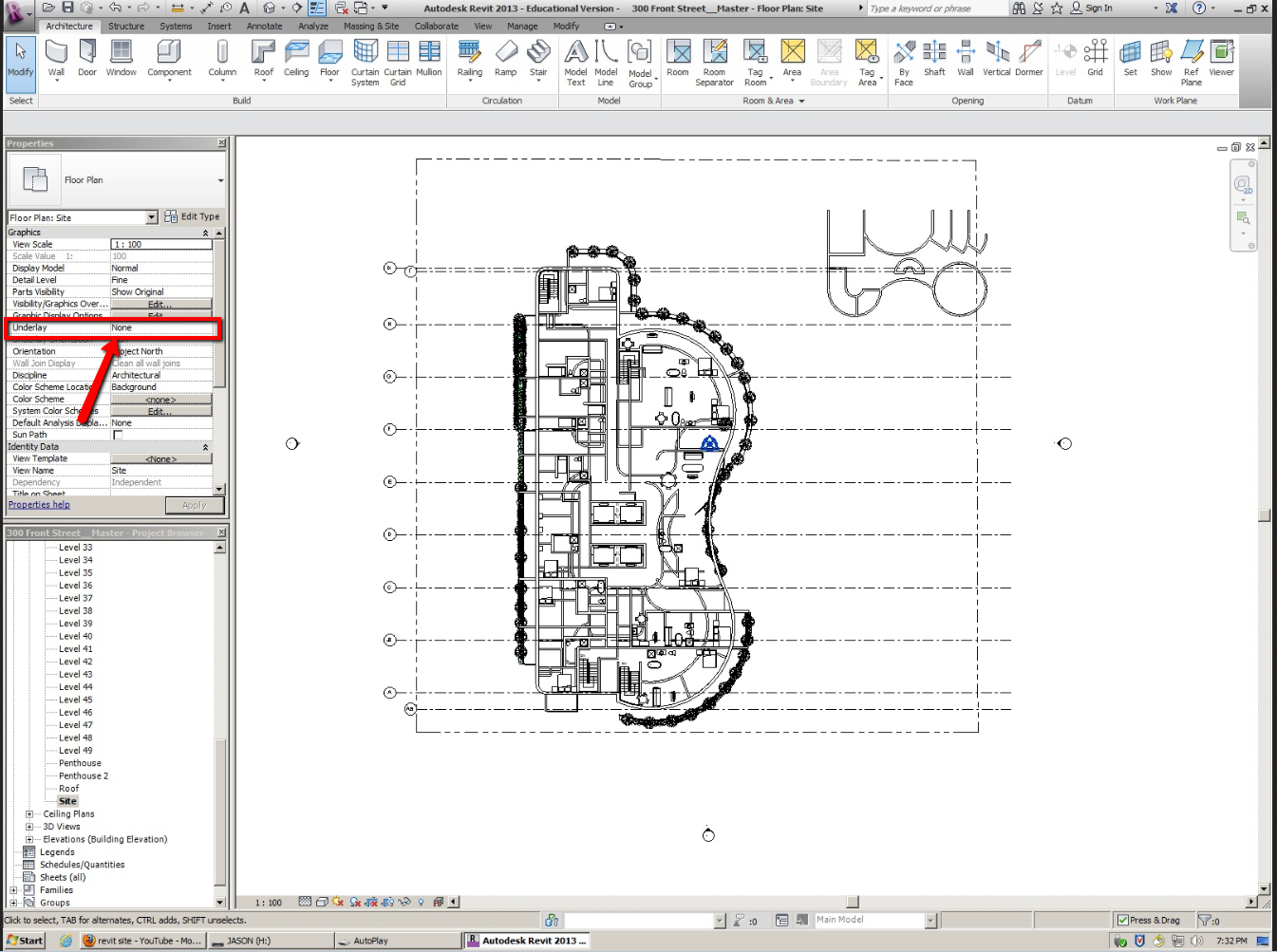

I think it is not the problem Ty (see image).....Mac, did you create a floor on that level?







Edited on: Wed, Oct 3, 2012 at 4:04:45 PM

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Wed, Oct 3, 2012 at 10:07:50 PM | Walls from multiple floors above showing in site plan

#4

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


Looks like maybe a View Range issue ?



For Site Plan views I don't usually want to see the inside of the building and usually put my View Range cut plane and top of view range well above the building height while leaving the Bottom and View Depth down to see the grade and trees.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Thu, Oct 4, 2012 at 2:23:52 AM | Walls from multiple floors above showing in site plan

#5

MacDaddy1


active

Joined: Fri, Sep 21, 2012
8 Posts
No Rating


Hey all,Figured it out, it was an issue with the view range. Thanks for the responses!


This user is offline
