Forums >> Revit Building >> Technical Support >> How can I model this shape? I'm out of ideas
|
|
|
active
Joined: Sat, Sep 15, 2012
4 Posts
 |

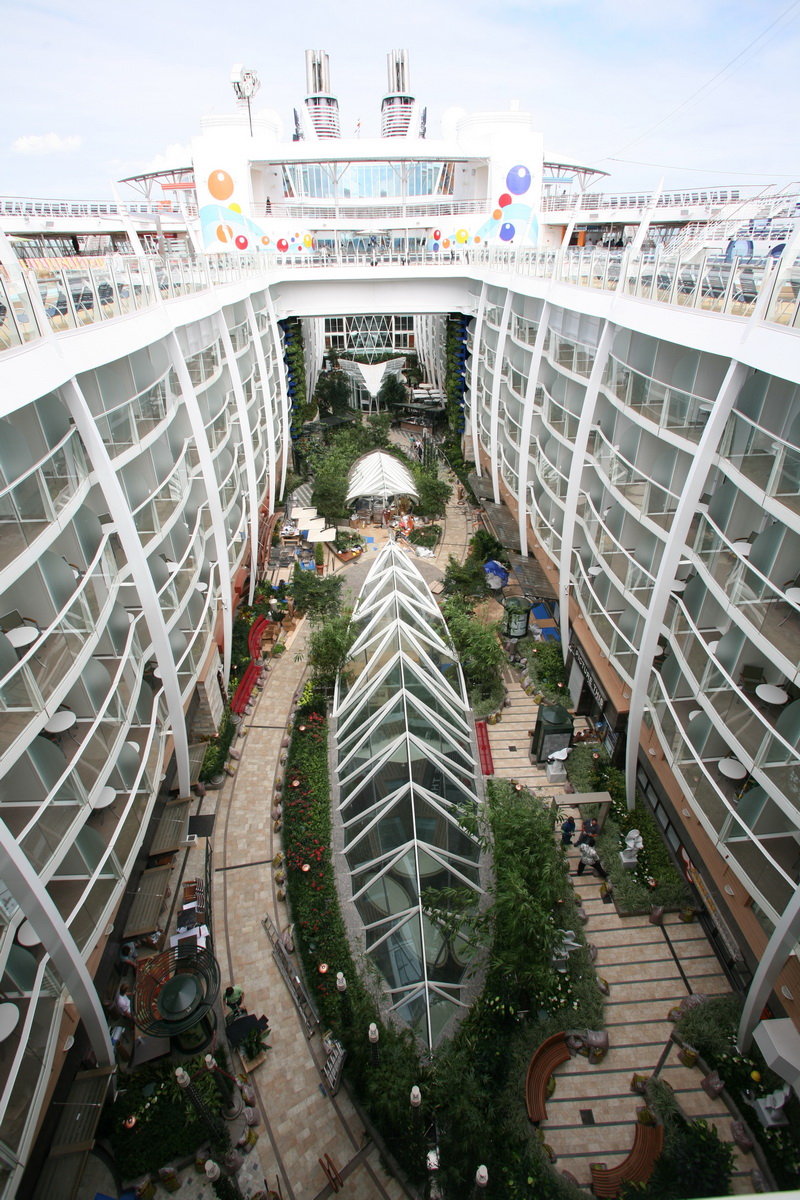

Well, I'm trying to model the shape showed in the image (the central skylight), sadly though, I haven't been able to model it, I don't even know where to start. I tried with Mass but I'm not been able to get there, I get similar results although quite different from the one in the picture. That's why I dicided to start this thread, because I'm seriously out of ideas. Thanks a lot for the help in advance
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Adaptive Components - Check out this guy (Zach Kron): http://buildz.blogspot.pt/
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, Sep 26, 2007
162 Posts
|

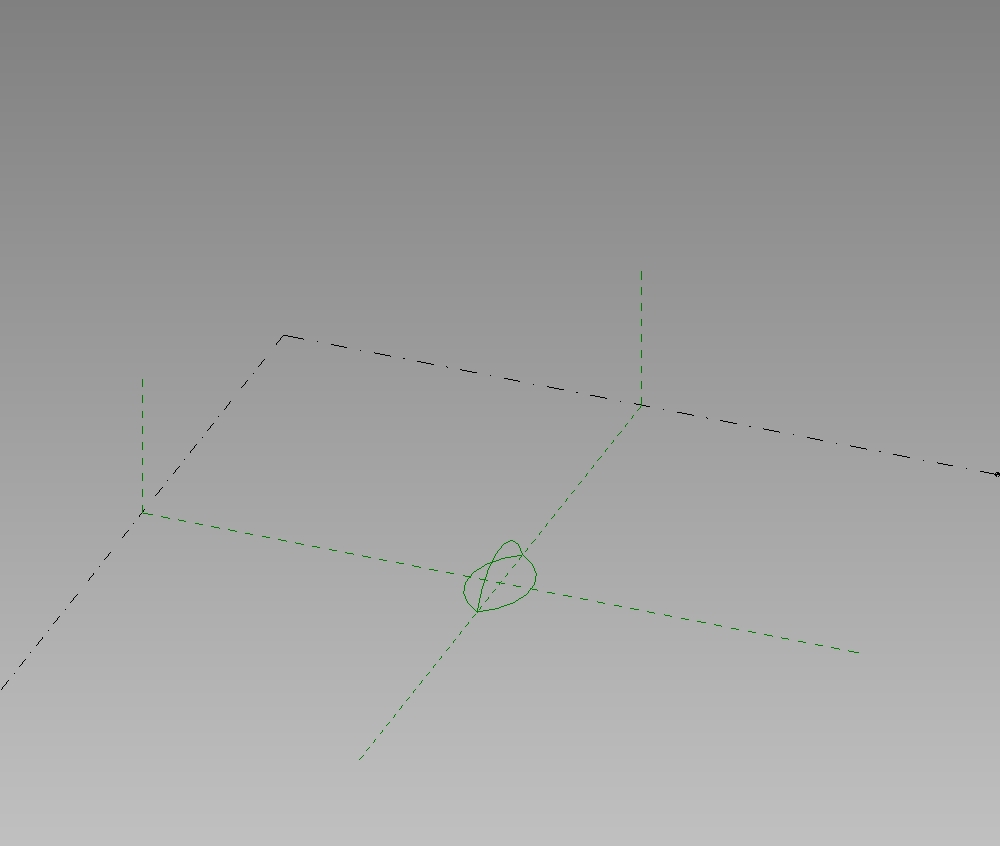

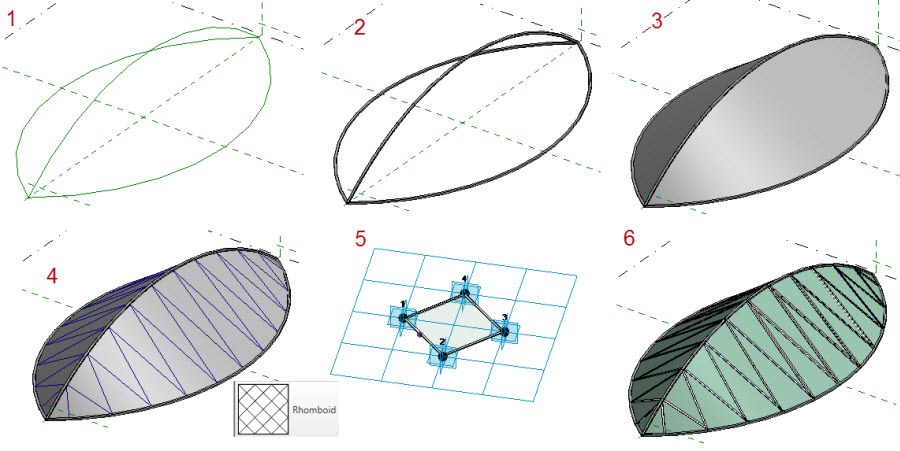

See illustration.
Edited on: Sun, Sep 30, 2012 at 10:55:32 AM
-----------------------------------
Planta1 Revit Online Consulting | info@planta1.com |
This user is offline |
View Website
|
|
|
active
Joined: Sat, Sep 15, 2012
4 Posts
|
Thanks so much for both of the answers, I researched now a bit more on Adaptive Components and I think I'll get the hold of it it after a few tries, thanks (that's what I love about Revit you can try and retry as many times as you want with even worring about damaging your project).Thanks a lot for the illustrion I'll try it out right now and tell you you how it went but it looks amazing, again, I thank you guys so much.
|
This user is offline |
|
|
|
active
Joined: Sat, Sep 15, 2012
4 Posts
|

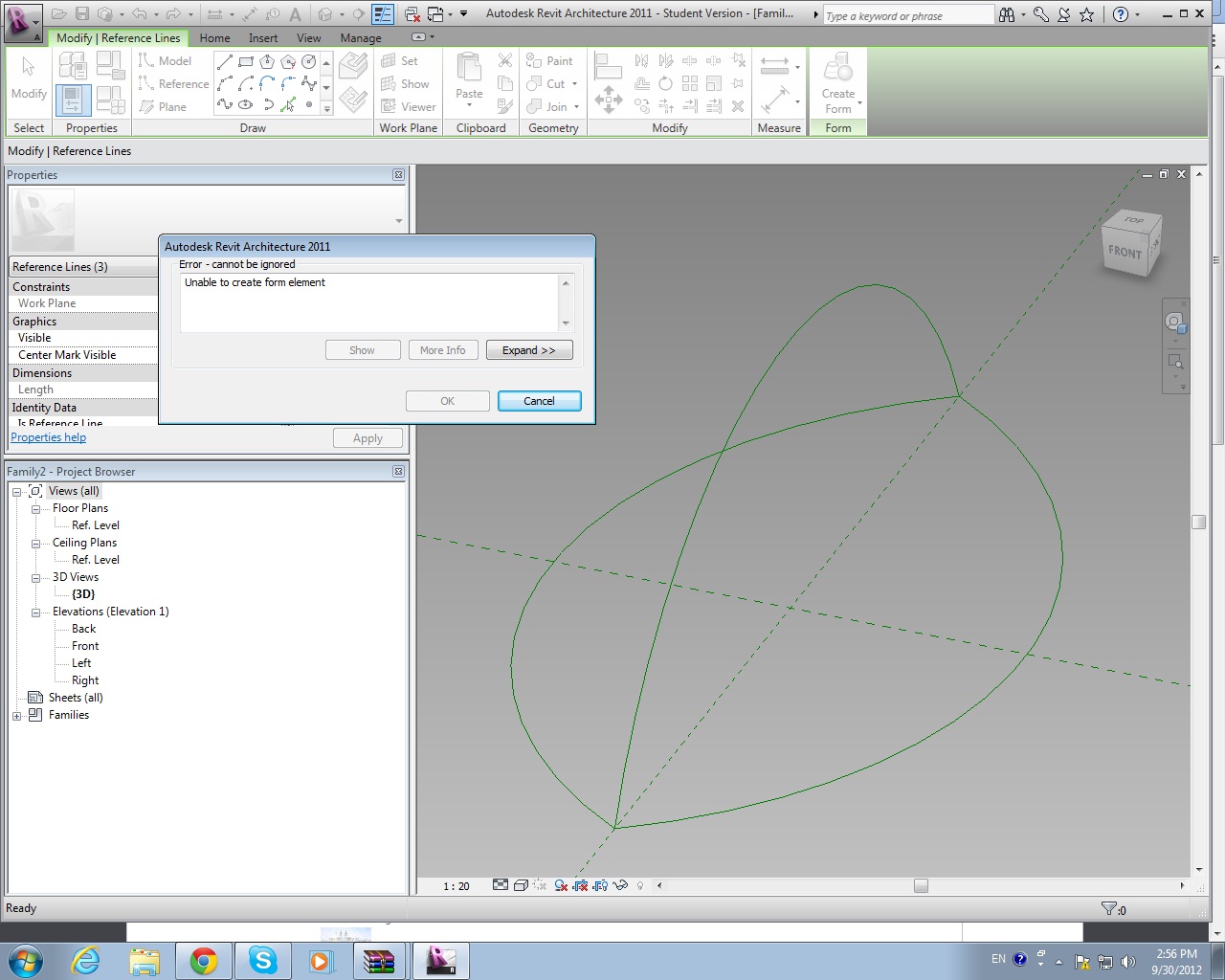

Well I tried to do what you did in the illustration but I ran into a problem, I got this message: "Unable to create form element", I probably did something wrong but I can't tell what I did wrong.
|
This user is offline |
|
|
|
active
Joined: Wed, Sep 26, 2007
162 Posts
|
Do one half first, then the other. Revit won't be able to do both halves at once if you select the 3 curves.
-----------------------------------
Planta1 Revit Online Consulting | info@planta1.com |
This user is offline |
View Website
|
|
|
active
Joined: Sat, Sep 15, 2012
4 Posts
|
Ah, alright, I did it and it worked thanks a lot for your help
|
This user is offline |
|
|
|
