Forums >> Revit Structure >> Technical Support >> BEAM SYSTEM BEARING ON WALL
|
|
|
active
Joined: Tue, Nov 11, 2008
24 Posts
 |
We multipe beam sytems bering on CMU and concrete walls. However in plan the stick symbol represtation is showing as set back from the wall (see pic). We would like the line to show on top of the wall (at least 4"). The beam system is drawn to 4" bearing and in section and 3D it shows correctly.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
Check your start and end extensions in your properties.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
 |

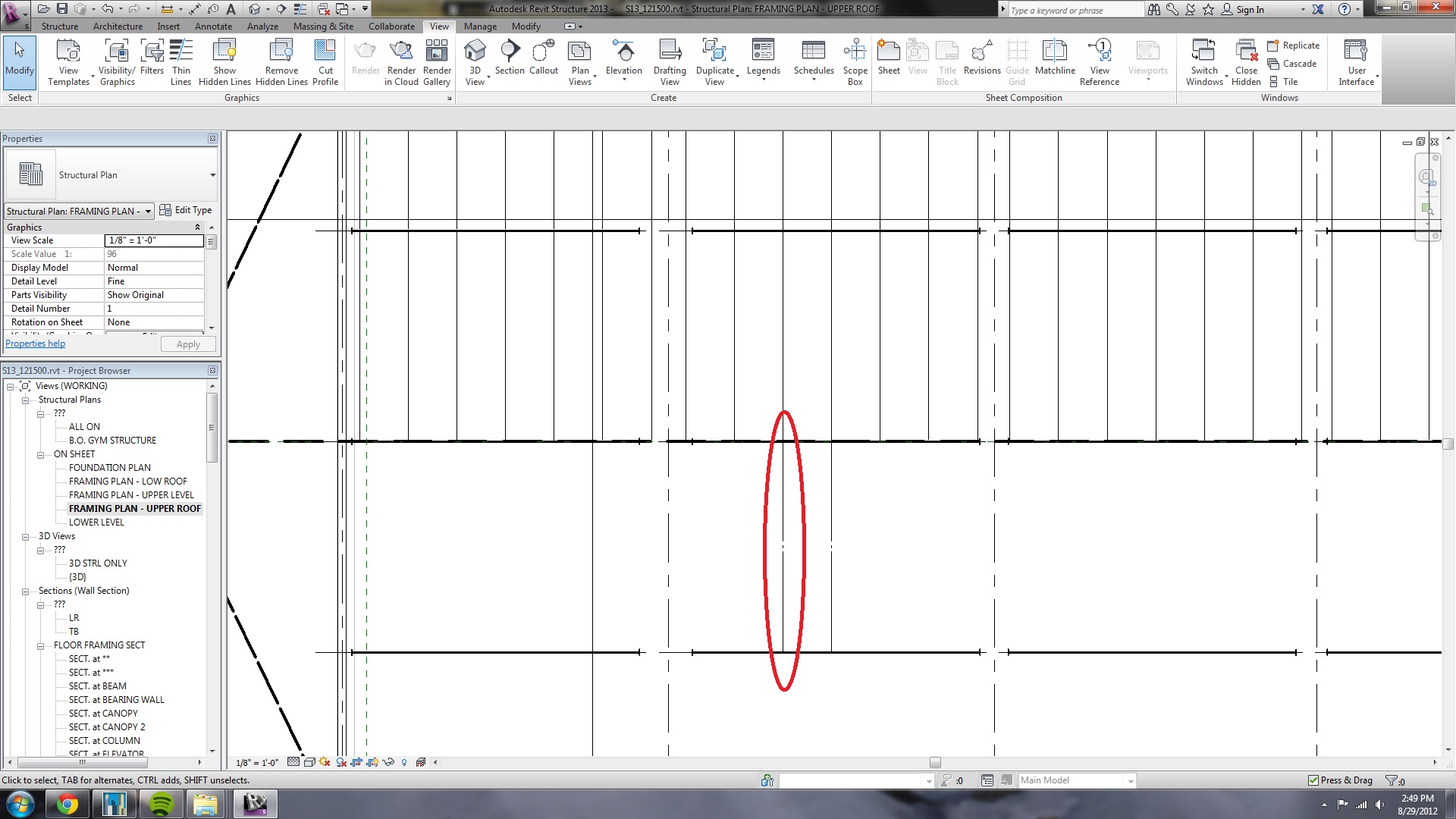

I may be able to help but I can't seem to make the connection between what you describe as the problem and the image that has a red elipse around what appears to be a joist ?
Where's the CMU wall and where's the setback you don't like ?
Can you better correlate your problem with the image ?
'End Extension property' may be your answer, not know exactly what the problem is however.
Change you plan view to Medium Detail and see what you get.
Is the framing member a custom family in any way ?
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Nov 11, 2008
24 Posts
|
Sorry i seem to have attached the wrong image.
The start and end properties will work. However, I am hoping there is a way to edit this as a beam system and not each individual beam.

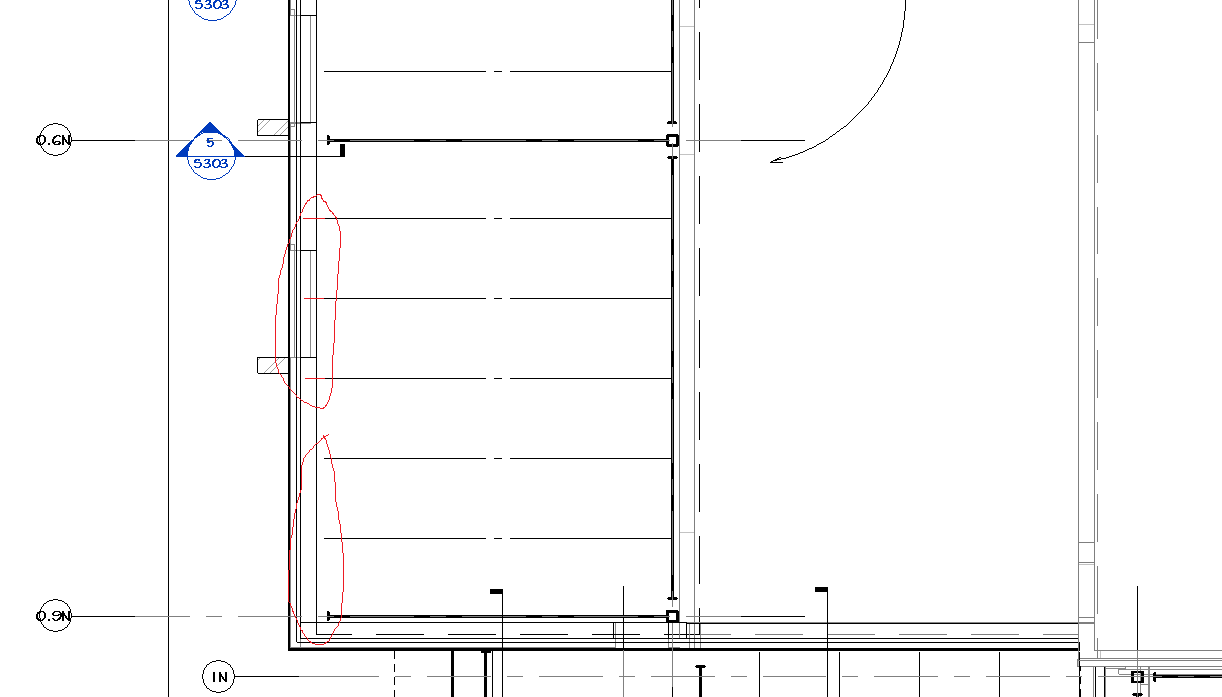

I have attached the correct picture.
interesting side note. If I set the walls to non-structural the lines show up correctly. This also will not work since these walls are structural and must be set that way for model coordination.
|
This user is offline |
|
|
|
active
Joined: Tue, Nov 11, 2008
24 Posts
|
The view is in medium detail and the joists are not custom a custom family.
|
This user is offline |
|
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
|
"I am hoping there is a way to edit this as a beam system and not each individual beam"
Click on one beam, right click, select all instances and I believe you should be able to change them all at once.
|
This user is offline |
View Website
|
|
|
