Fri, Aug 24, 2012 at 10:40:06 PM | Rendering Modeled Siding

#1

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


I have modeled siding on some walls using reveals.  The dimensions are accurate, using Hardie Plank as a product.  The effect works well, except when rendered.  The texture is so slight that it is almost invisible.  Anyone know how to make it more visible without going (way) beyond the actual depth of the product?


This user is offline



Sat, Aug 25, 2012 at 5:37:30 AM | Rendering Modeled Siding

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Post some images, in shaded and rendered....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Aug 28, 2012 at 10:33:27 PM | Rendering Modeled Siding

#3

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating

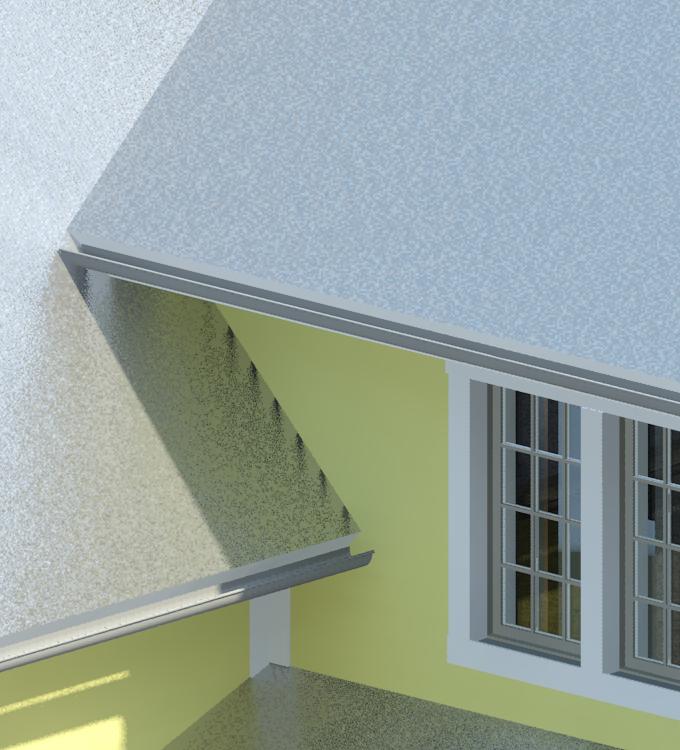

Shaded and rendered images attached.  You will notice that in the rendered version, the siding edges are invisible, except that their relections appear in the (aluminum foil) metal roofing below.

 I did try increasing the depth of the profile.  These images were made with the siding at 4x actual depth (1 1/4").



Attached Images


Attached Files

This user is offline



Wed, Aug 29, 2012 at 3:36:57 AM | Rendering Modeled Siding

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


You can create that effect with a simple "Texture", no need to use reveals....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Aug 30, 2012 at 10:07:09 PM | Rendering Modeled Siding

#5

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


I don't have an easy way to modify the color of an image to use as a texture.  If the wall itself has the profile, I can modify the color of the wall surface easily by changing the material's color.


This user is offline



Fri, Aug 31, 2012 at 8:17:28 AM | Rendering Modeled Siding

#6

AbsoluteBIM


active
AbsoluteBIM Avatar

Joined: Fri, Jun 17, 2011
220 Posts
3.5 Stars: 3 Votes


I agree with Typhoon; I've tried modelling siding accurately and it just bogs down the model.

Have you tried applying a "bump" pattern to your material instead? I've created some custom bump patterns similar to what I attached that I use for different siding patterns.



Attached Images


This user is offline



Fri, Aug 31, 2012 at 4:51:32 PM | Rendering Modeled Siding

#7

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating

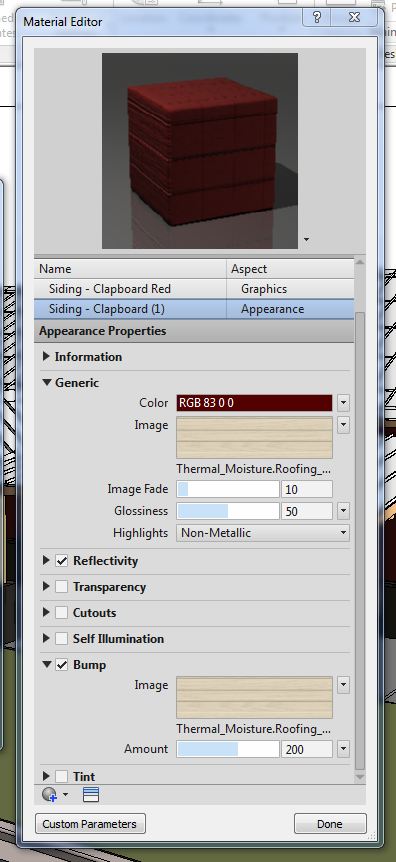

This is one that I did recently by using a color and turning the image fade down and the bump up on a standard material. I was very happy with the results.



Attached Images


This user is offline



Fri, Aug 31, 2012 at 4:53:07 PM | Rendering Modeled Siding

#8

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating

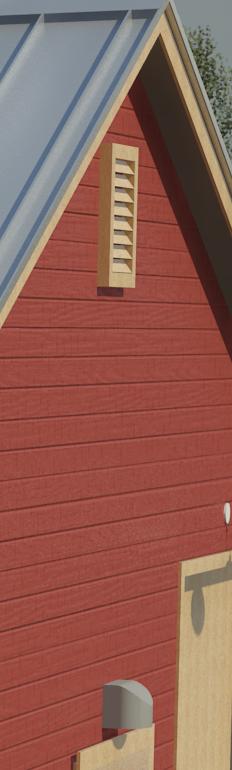

Here is the entire image.



Attached Images


This user is offline



Fri, Aug 31, 2012 at 11:30:09 PM | Rendering Modeled Siding

#9

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


Johnzo,

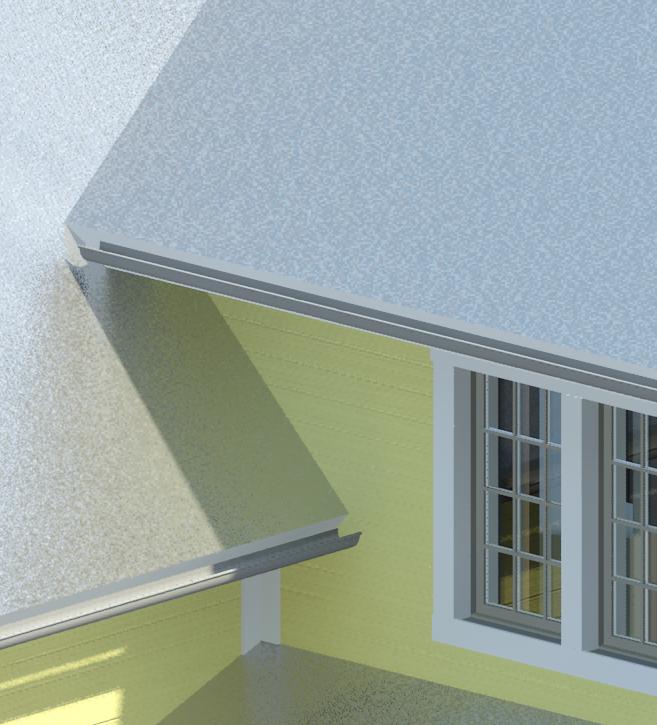

Thanks for the advice.  I'm afraid I cannot duplicate your results, even when matching your settings.  Image attached.

I'm willing to take a little bog in the render time, if the results are right.  I'm disappointed that Revit cannot accurately render the elements when truly modeled, or even when exaggerated.



Attached Images


This user is offline



Sat, Sep 1, 2012 at 4:31:24 AM | Rendering Modeled Siding

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

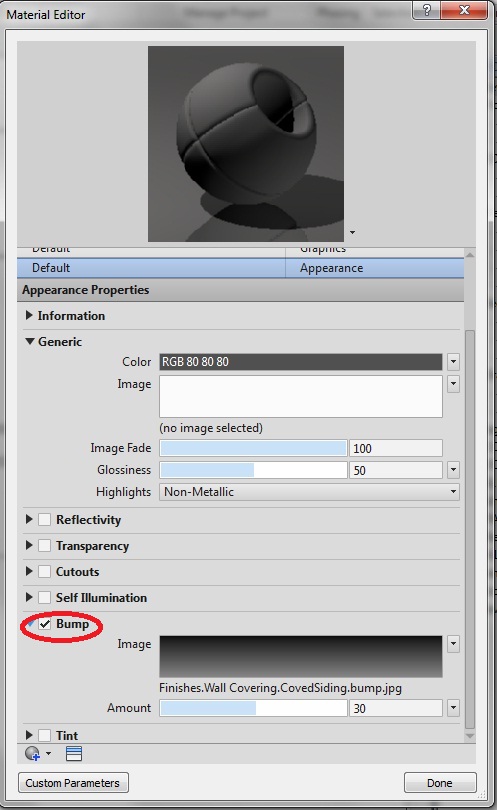

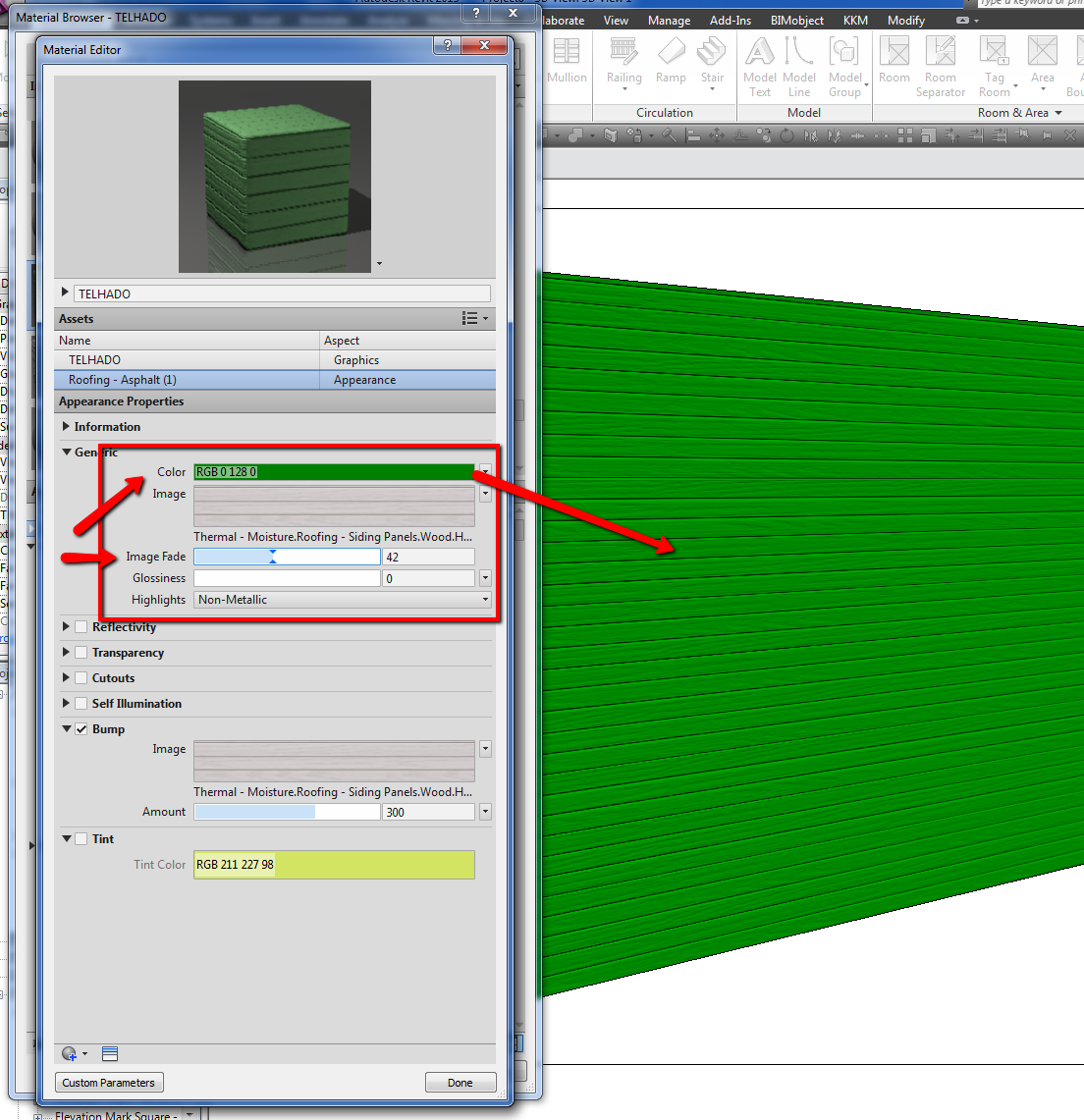

Choose the right texture and change the color like you want.

Render in High quality 300 DPI and check if you have the result you want.





Edited on: Sat, Sep 1, 2012 at 4:37:14 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Sep 1, 2012 at 5:50:30 PM | Rendering Modeled Siding

#11

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


Typhoon,

The key may be that the Generic - Color is white and the hue is selected using the Tint Color variable near the bottom of the editor.  My dialog box does not have this, nor does my dialog box look like yours.  Which version of Revit are you using.  I'm still on 2012.




This user is offline



Fri, Sep 7, 2012 at 8:28:19 PM | Rendering Modeled Siding

#12

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


Typhoon:

I need to know if this solution is available to me.  From which version of Revit was the screen shot taken?

Thank you,

ml22


This user is offline



Sat, Sep 8, 2012 at 3:13:43 AM | Rendering Modeled Siding

#13

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

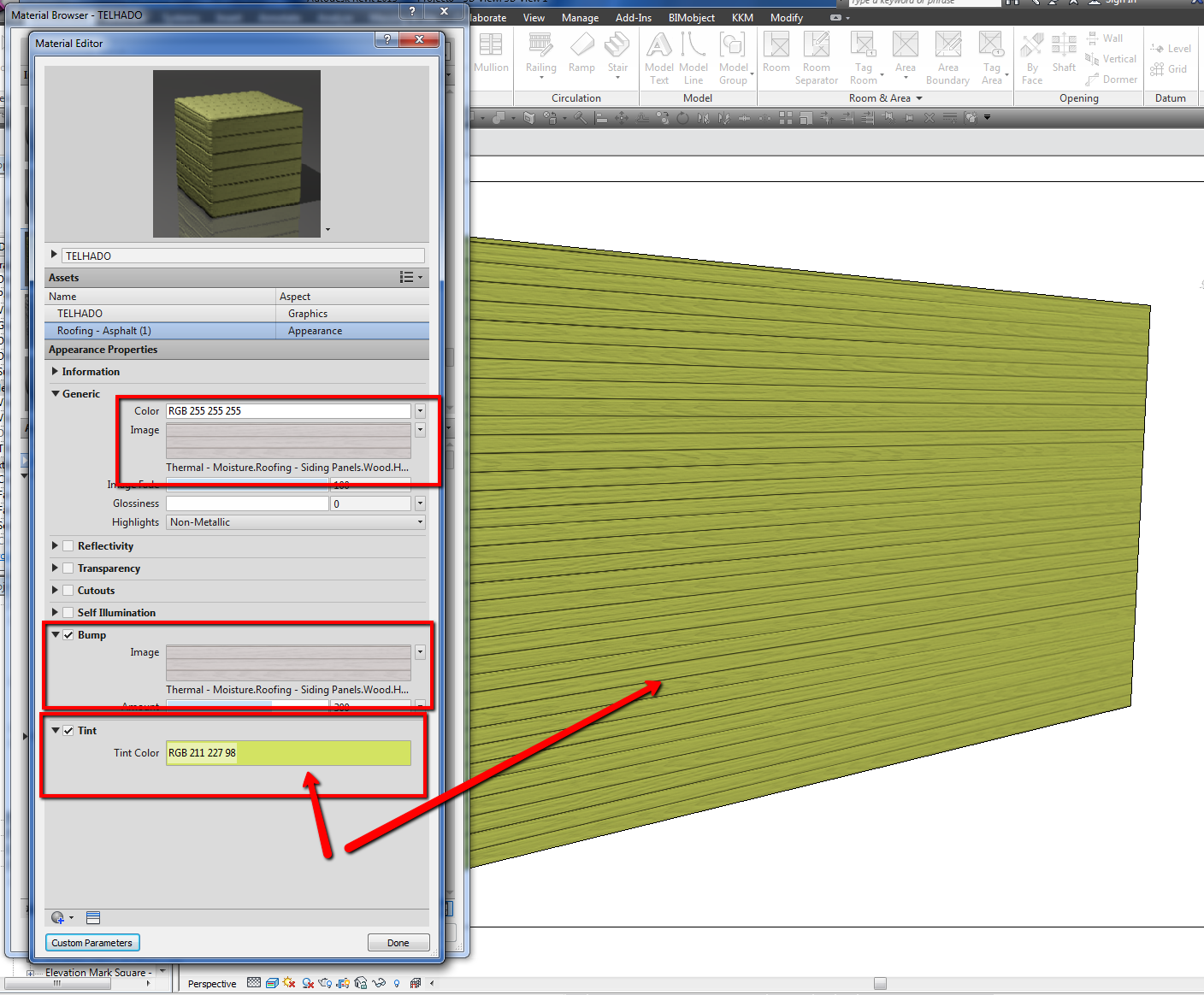

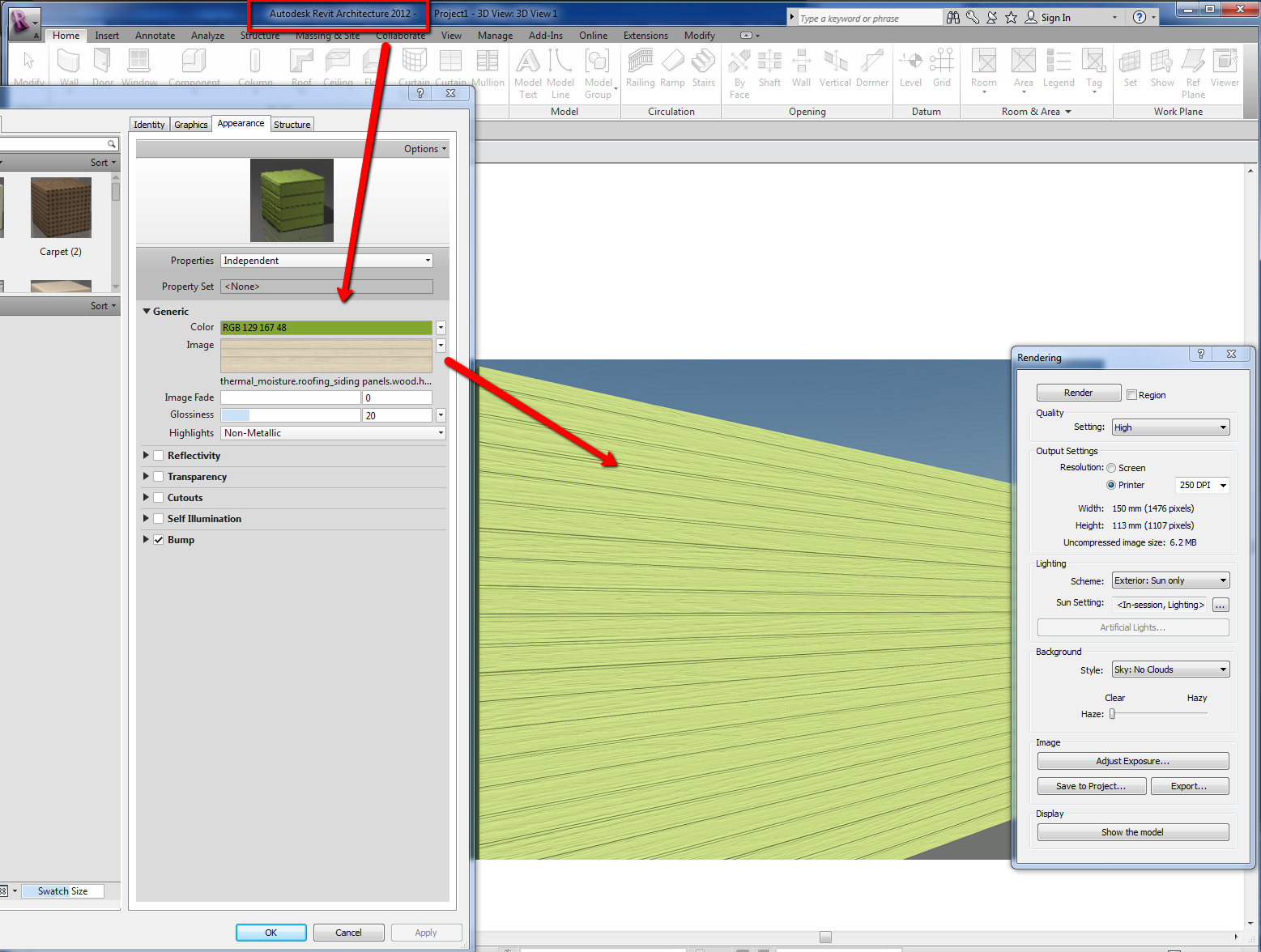

Was in 2013 and now in 2012....

A good "texture" can produce the effect you want without increase the file size.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Sep 10, 2012 at 9:57:41 PM | Rendering Modeled Siding

#14

ml22


active

Joined: Thu, Aug 30, 2007
19 Posts
No Rating


Typhoon,

Attached is my best rendering with that method.  As you can see, the siding is barely visible (or not visible).  I have tried meddling with the degree of light and shadow, etc. to try to enhance the contrast and visibility of the siding, without success.

Any other suggestions?

Thanks.



Attached Images


This user is offline



Mon, Sep 10, 2012 at 10:31:06 PM | Rendering Modeled Siding

#15

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes


Just to ask a dumb question, but did you use a good hi-res setting while doing all the test images you said in the above post? it seems to me typhoon has his settings dialed in, and maybe youre settings are set diffy or something.


This user is offline

View Website
