Forums >> Revit Building >> Technical Support >> Void Sweep won't cut extrusion

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Aug 24, 2012 at 9:26:00 AM | Void Sweep won't cut extrusion

#1

jwatbs


active

Joined: Thu, May 31, 2012
4 Posts
No Rating


I'm working on modeling a solid cast iron bracket with different shape cut outs in its side elevation.  I created an extrusion for the body of the bracket and used a revolve, sweep and extrusion in void form to make the cut outs.  The last void sweep is giving me problems.  Every time I try to cut the geometry I get the "Can't keep elements joined" error message with no further detail.  I have attached the family file for review.  Any help would be much appreciated.



Using Revit Architecture 2013



This user is offline



Fri, Aug 24, 2012 at 9:33:57 AM | Void Sweep won't cut extrusion

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Need more information.  What is "The last void sweep is giving me problems. Every time I try to cut the geometry I get the "Can't keep elements joined" error message with no further detail."?  Attach a screen shot of the problem area.  I see 7 voids total so not sure what one is the problem


This user is offline

View Website

Fri, Aug 24, 2012 at 9:51:35 AM | Void Sweep won't cut extrusion

#3

jwatbs


active

Joined: Thu, May 31, 2012
4 Posts
No Rating

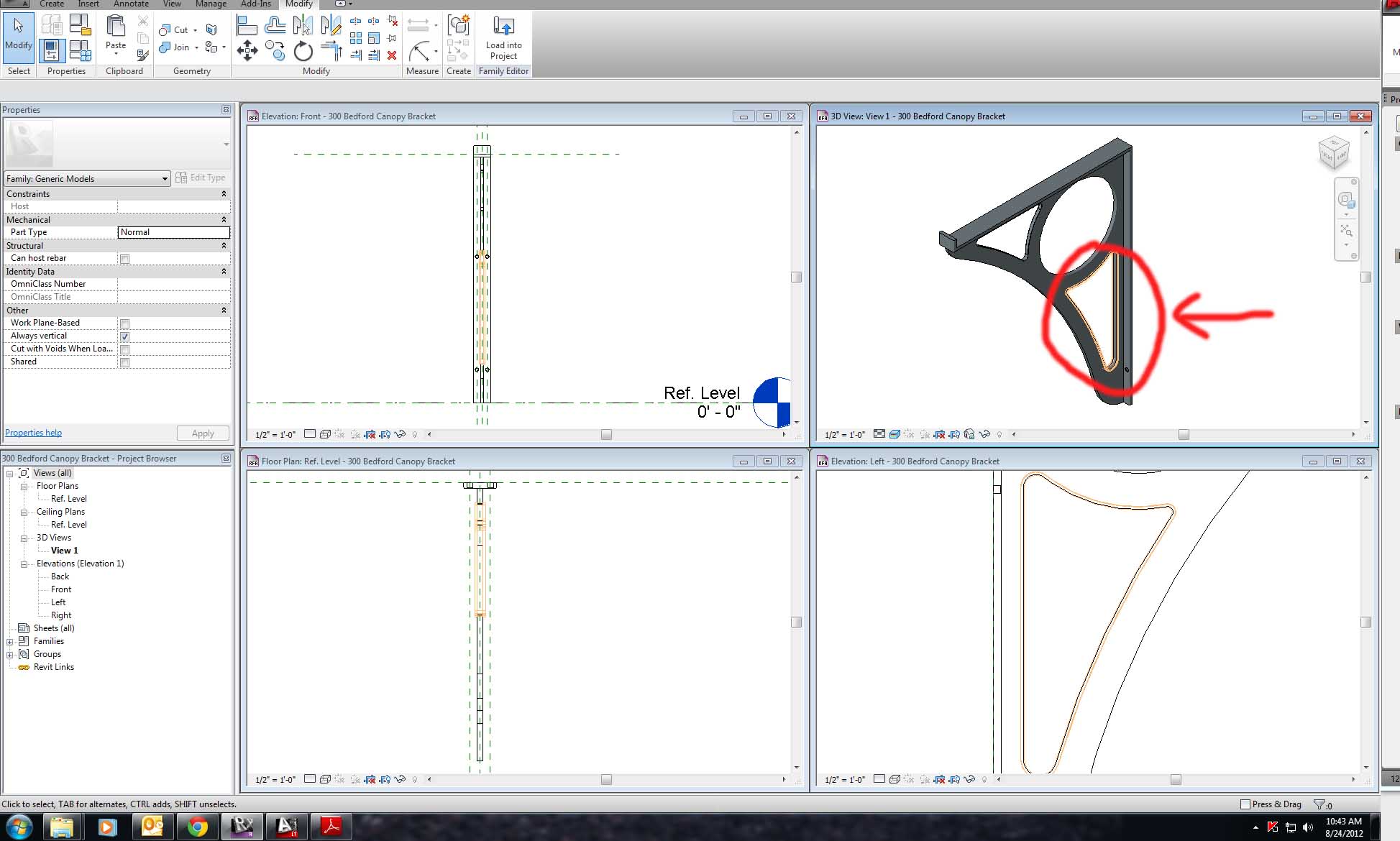

I've attached a screen shot where I've circled the void sweep giving me issues.



Attached Images


This user is offline



Fri, Aug 24, 2012 at 9:59:33 AM | Void Sweep won't cut extrusion

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


I must be missing something, you currently have a void extrusion there and it appears to be cutting just fine.


This user is offline

View Website

Fri, Aug 24, 2012 at 10:18:56 AM | Void Sweep won't cut extrusion

#5

jwatbs


active

Joined: Thu, May 31, 2012
4 Posts
No Rating


There is a void extrusion in the same place to cut the portion out left by the sweep.  When I use the Cut Geometry tool with the void sweep is when I get the error message.


This user is offline



Fri, Aug 24, 2012 at 12:36:30 PM | Void Sweep won't cut extrusion

#6

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


I opened the family and could find anything wrong (although I would have used more extrusions than sweeps).



So I Inserted it into a project and still found nothing wrong.

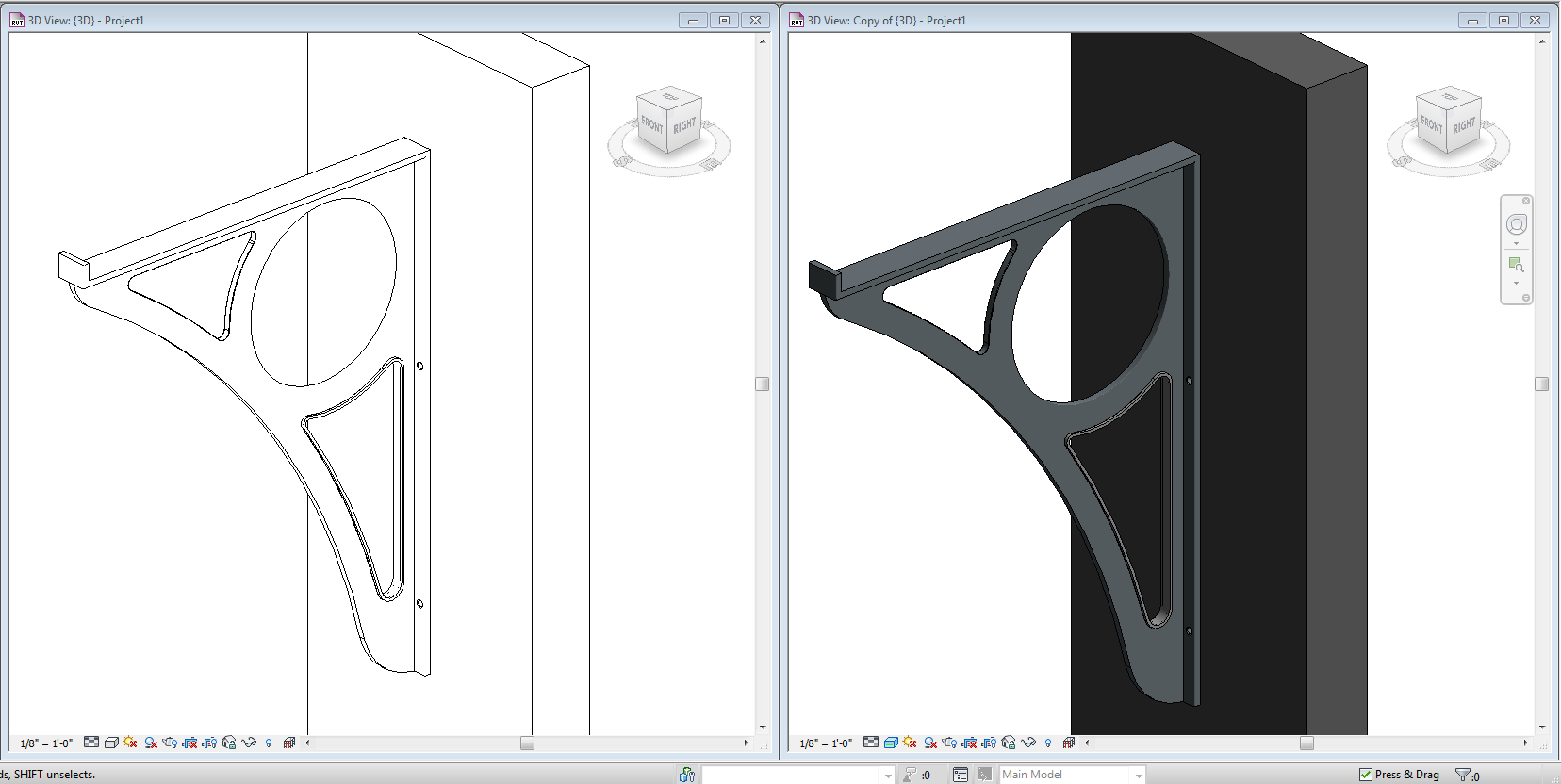

See attached image of project file. Can't find anything wrong.





Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Fri, Aug 24, 2012 at 12:41:38 PM | Void Sweep won't cut extrusion

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


"There is a void extrusion in the same place to cut the portion out left by the sweep." - I don't get it... You created a void to cut that solid then you created another void to cut that same void????

Also, why do you need the voids if you can create those "cut-outs" when you are creating that extrusion?

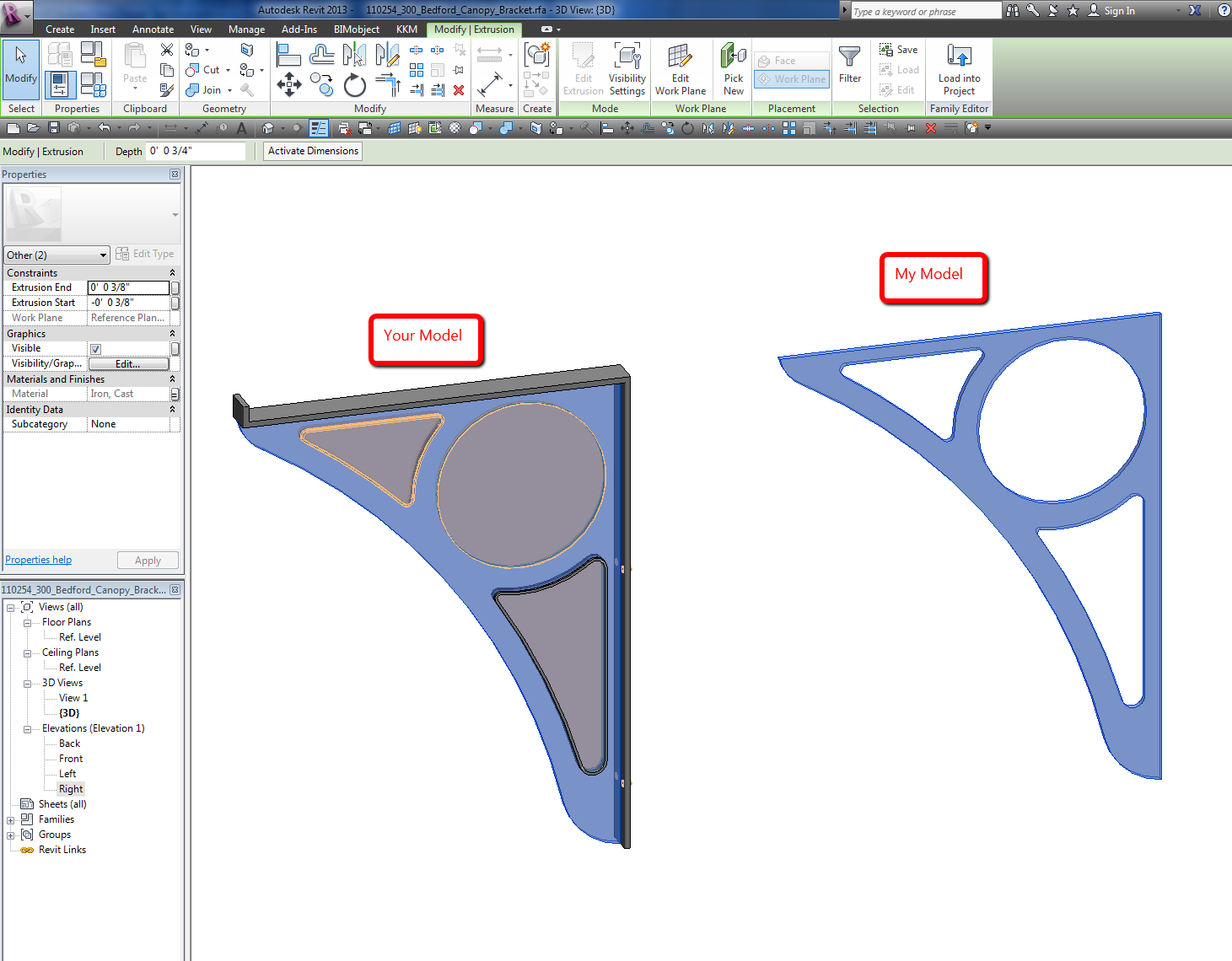

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Aug 24, 2012 at 2:33:01 PM | Void Sweep won't cut extrusion

#8

jlights


active

Joined: Tue, Dec 18, 2007
146 Posts
3 Stars: 2 Votes


First, you don't need void extrusions to cut holes in the bracket. You can draw these circles in your sketch for the outline of the bracket and when you click Finish, the holes will be there. This will lighten up the family and make life in Revit eaiser for you. Void extrusions should be avoided in families as much as possible. Second, you're really overmodeling this bracket. You don't need any more than the above mentioned extrusion and perhaps the sweep along the right-angled edges. Forget the decorative detail inside the holes. These families are for specification and clash detection, not for manufacturing; every little bit you model has to be calculated by Revit every time you move around in you view (unless you turn off all 3D elements in all views in the family and draw 2d symbolic lines to represent the geometry in F/B, L/R and Plan/Ceiling views, which is recommended practice). All that detail is lovely to look at but useless and burdensome in a project environment.


-----------------------------------

jlights

This user is offline

View Website

Fri, Aug 24, 2012 at 2:48:32 PM | Void Sweep won't cut extrusion

#9

dgcad


active
dgcad Avatar

Joined: Thu, Mar 17, 2005
1231 Posts
3.5 Stars: 36 Votes


Agreed.

Model this with two extrusions (web & stiffner) and skip the mounting holes.

No voids required.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Fri, Aug 24, 2012 at 3:02:42 PM | Void Sweep won't cut extrusion

#10

jwatbs


active

Joined: Thu, May 31, 2012
4 Posts
No Rating


Thanks for the replies and help.  I was able to get it to work.  The file that was uploaded didn't contain the sweep as a void, it was still a solid at that point.  I was modeling all elements as solids and then making them voids and cutting the geometry.  I ended up using instance parameters to adjust which voids were cutting when so that we could show the owners various iterations of the same overall shape.
