Thu, Aug 23, 2012 at 10:00:10 PM | Irregular residential roof

#1

tectacoma


active
tectacoma Avatar

Joined: Fri, Feb 4, 2011
30 Posts
No Rating


Revit 2012

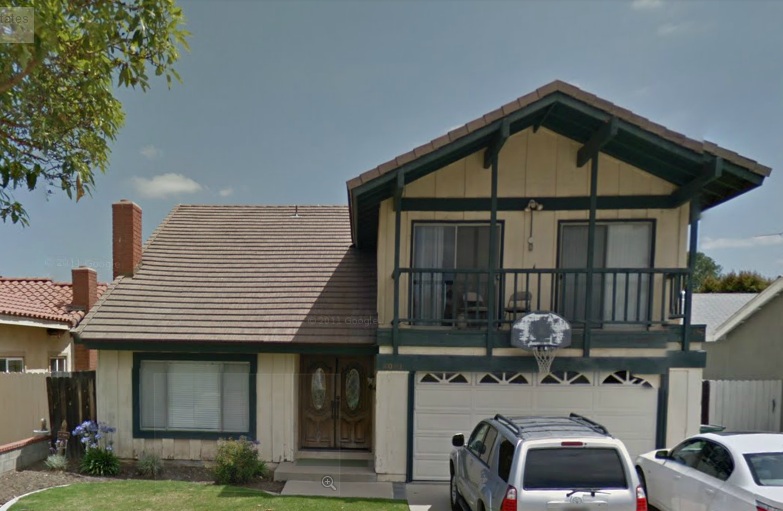

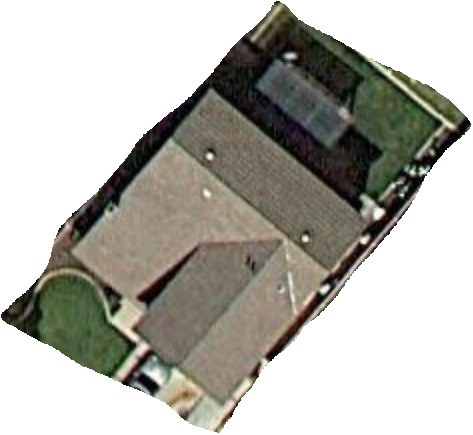

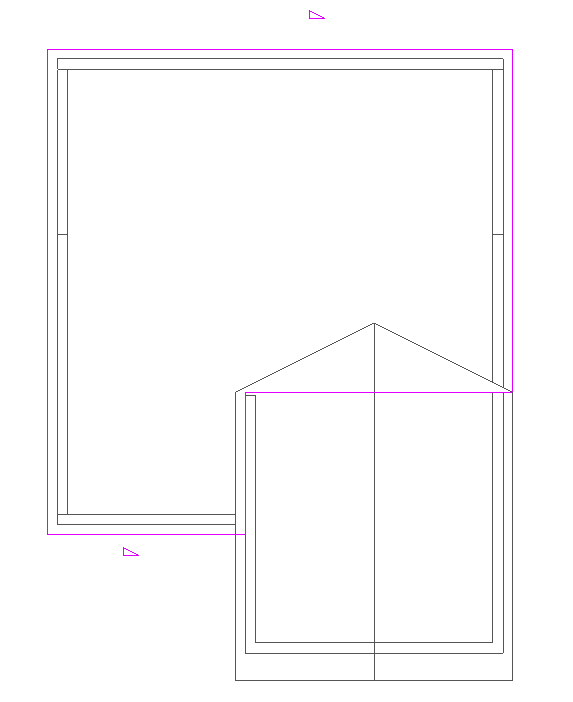

I;m trying to re-create the roof of this residential project - see pictures below. I could really need some good advise here guys..

I'm at my wits end...Sad

 The roof ridge is not centered as you can see from the aerial pic

Problems:1. I can't join the roofs with the join/roof command. "ErrorPuhart of the roof to be joined misses the target face."

2. The gable/California roof does not come out correctly either

3. I tried to create the roof in 3 different pieces but can't get it to work...basciall I can't re-create the roof at all as of now.

Please...let me know if you have any ideas...

thanks



This user is offline



Fri, Aug 24, 2012 at 4:30:00 AM | Irregular residential roof

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


You can create that roof (by footprint) in two pieces only, no need of that and the gable roof will join to the main roof, create the main roof by the perimeter ( "L" shape) you have then you can change the slope and height / offset position of each eave.


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Aug 24, 2012 at 6:14:29 AM | Irregular residential roof

#3

Khuongledinh


active
Khuongledinh Avatar

Joined: Sat, Jun 5, 2010
5 Posts
1 Stars: 1 Votes


In my idea, you must create two roof by footprint.

The large roof below you create and define the slope, define the plate offset from base for four side of the sketch if they are different height. Then finish

The small roof above you create the same the large roof, just change the height offset of the roof from base. Then finish

Now goto 3D view, goto Modify -> Join/unjoin Roof. click on the edge gable of small roof and click on the plane of the large roof you want to join.

After all, you go to Home ->see opening section -> click vertical opening -> choose the roof -> and sketch the region you want to open/eliminate the part of the roof you want.






This user is offline



Fri, Aug 24, 2012 at 8:21:00 AM | Irregular residential roof

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4 Stars: 47 Votes


Typhoon is correct, you only need 2 roofs byu footprint and just use an offset to get the high level (or low level) that you want and then use the join roof command after both roofs are created to get them to join together.



Attached Images


This user is offline

View Website

Fri, Aug 24, 2012 at 12:07:40 PM | Irregular residential roof

#5

tectacoma


active
tectacoma Avatar

Joined: Fri, Feb 4, 2011
30 Posts
No Rating


Revit Masters....thanks so much...this is what happens when you stare to long at the forest.

"I can't see the forest because of all the trees in front of me"



Again, thanks so much for you help guys. Smile


This user is offline



Fri, Aug 24, 2012 at 10:22:08 PM | Irregular residential roof

#6

tectacoma


active
tectacoma Avatar

Joined: Fri, Feb 4, 2011
30 Posts
No Rating


Follow up question:

I managed to slope the roof and adjust the plate height...thanks for pointing that one out.

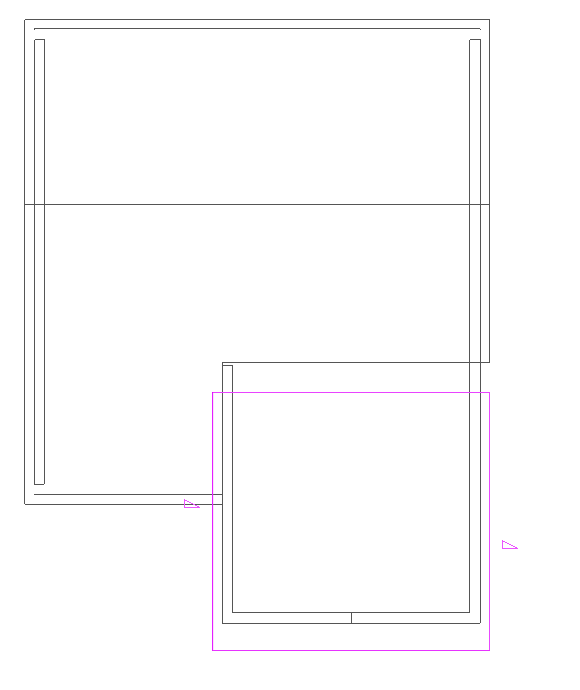

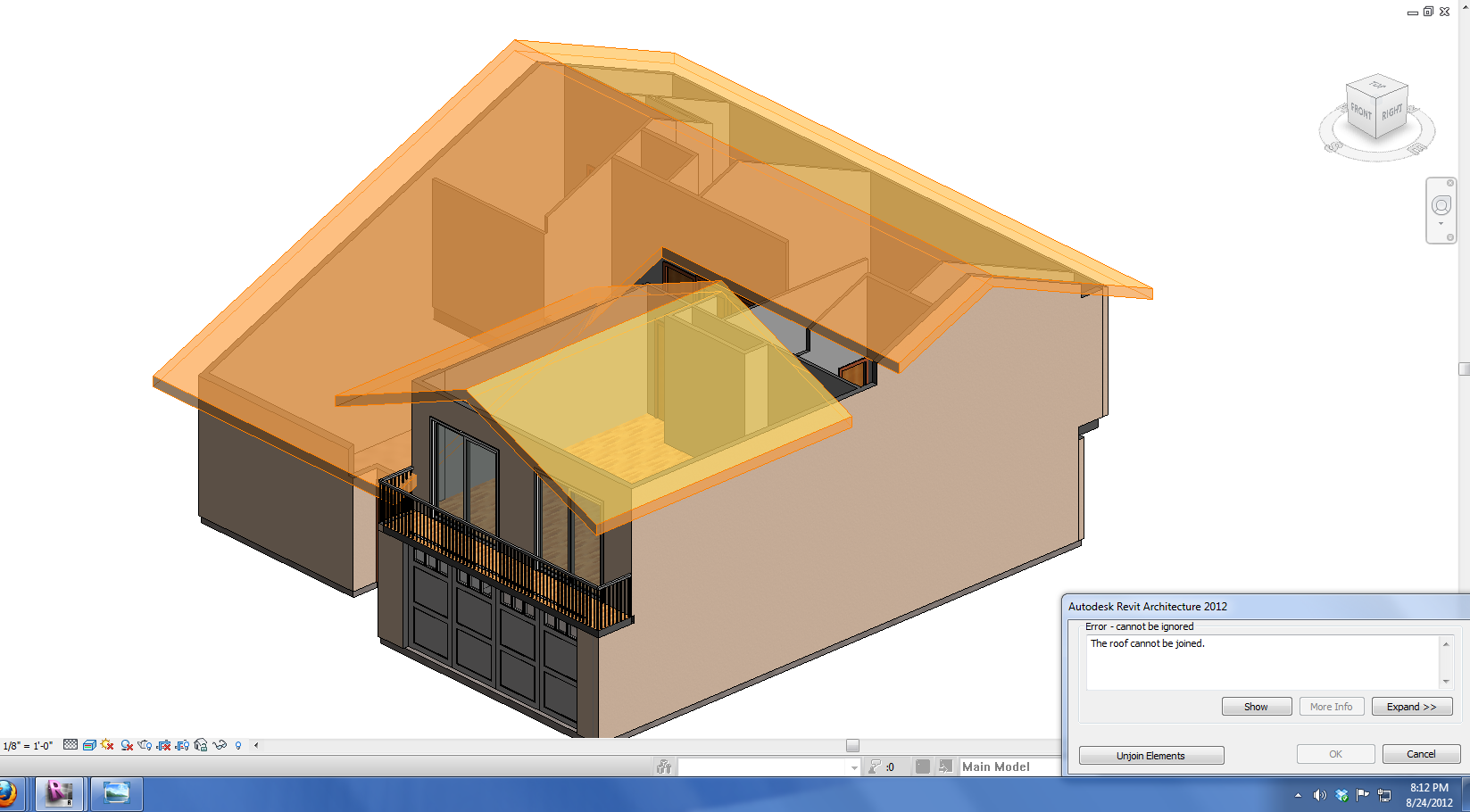

When I tried to join the 2 roofs I either get the error message - can't join roofs;

or

when I managed to join it only manages to join part of the roof (I actually changed the plate height -1' to get this one)



@Teafo5...I saw what you did and managed to do the same in the past but for whatever reason I can't get same results...

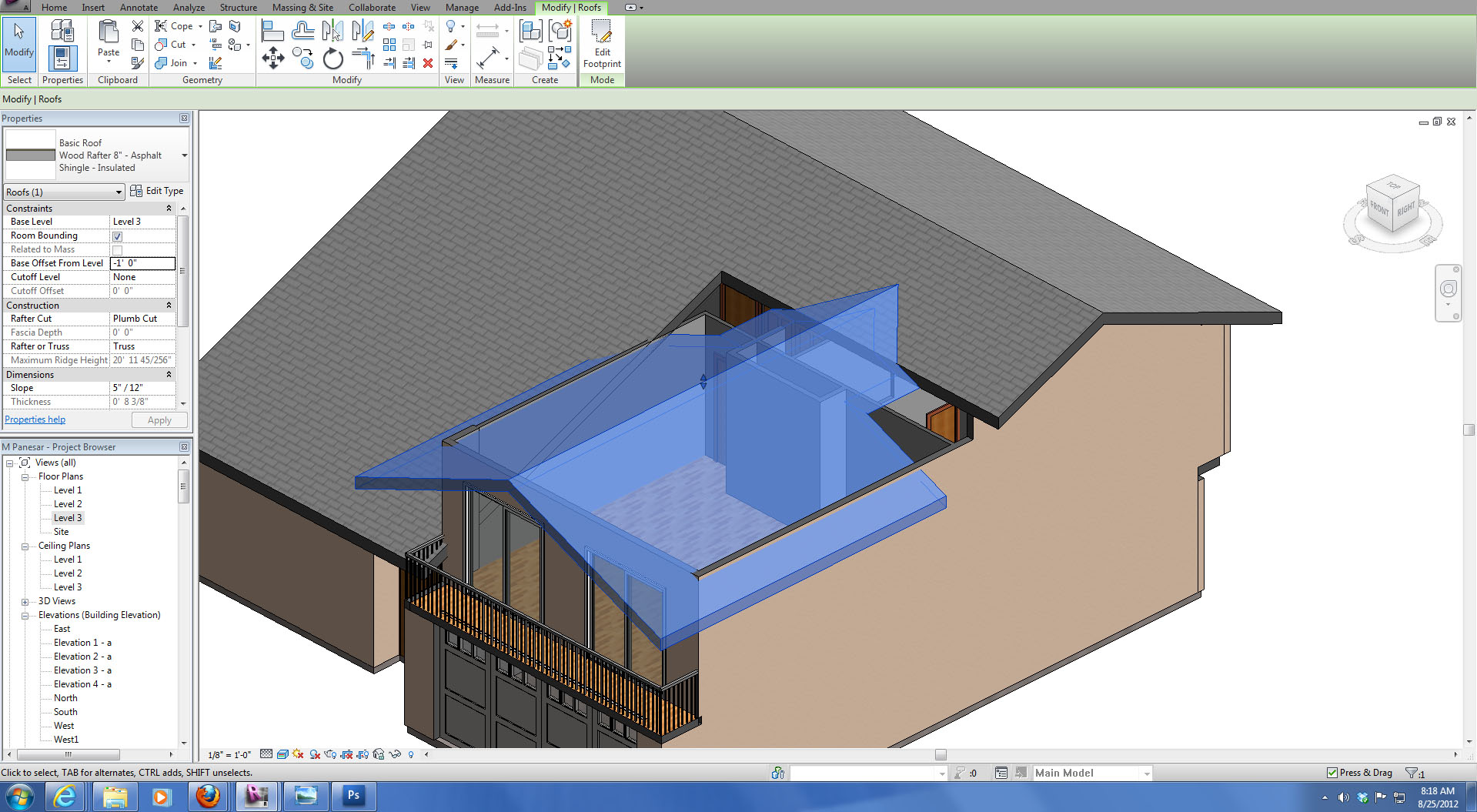

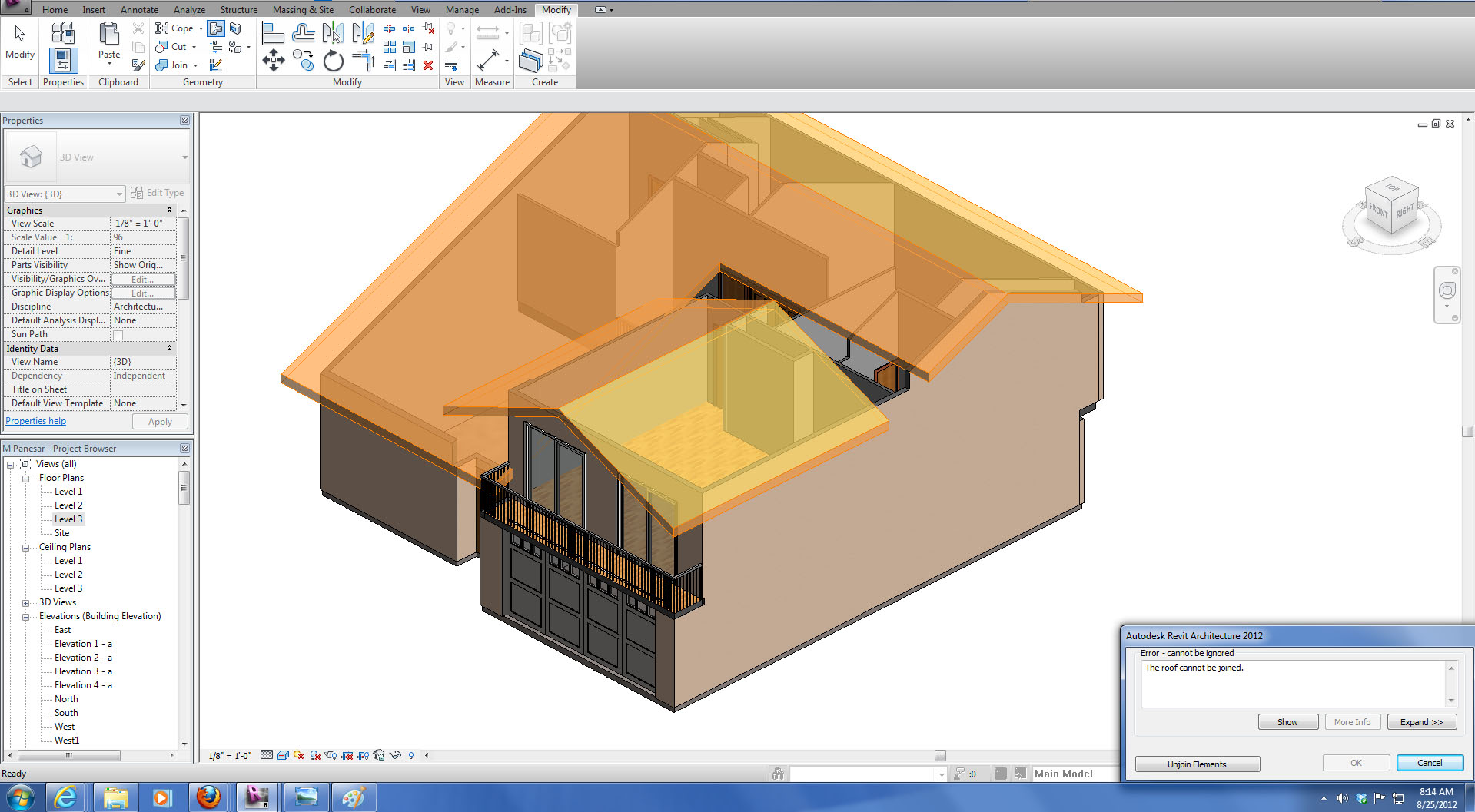

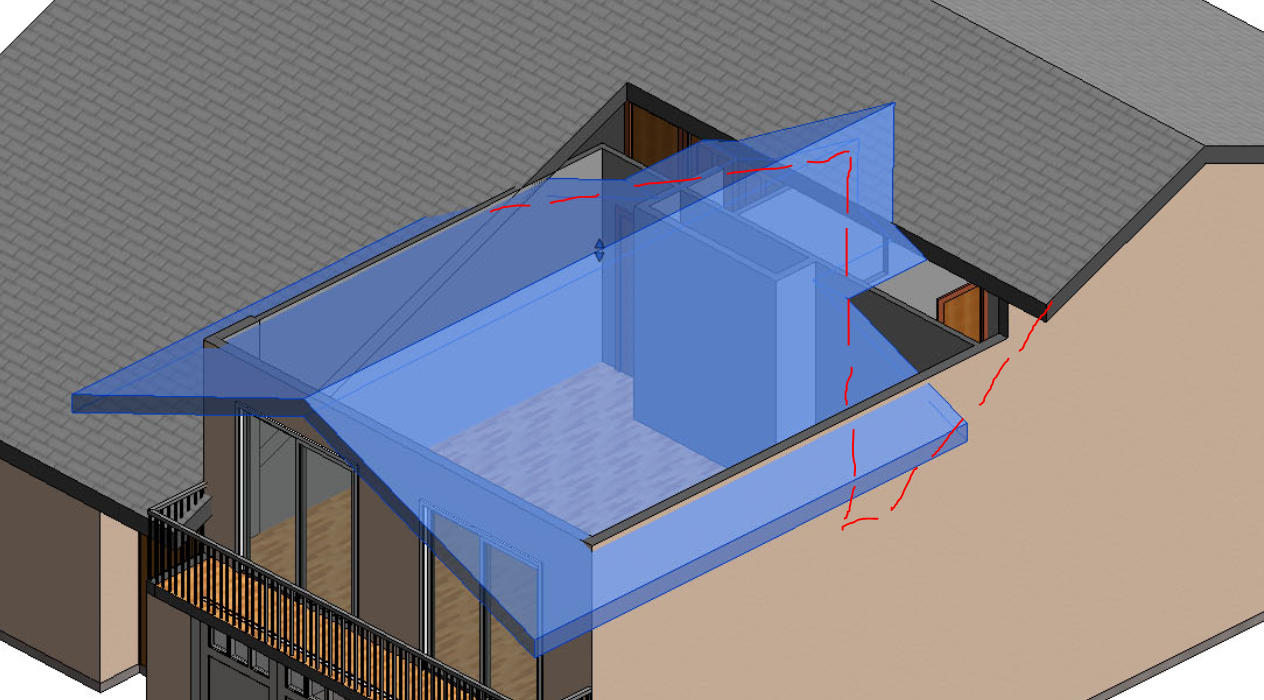

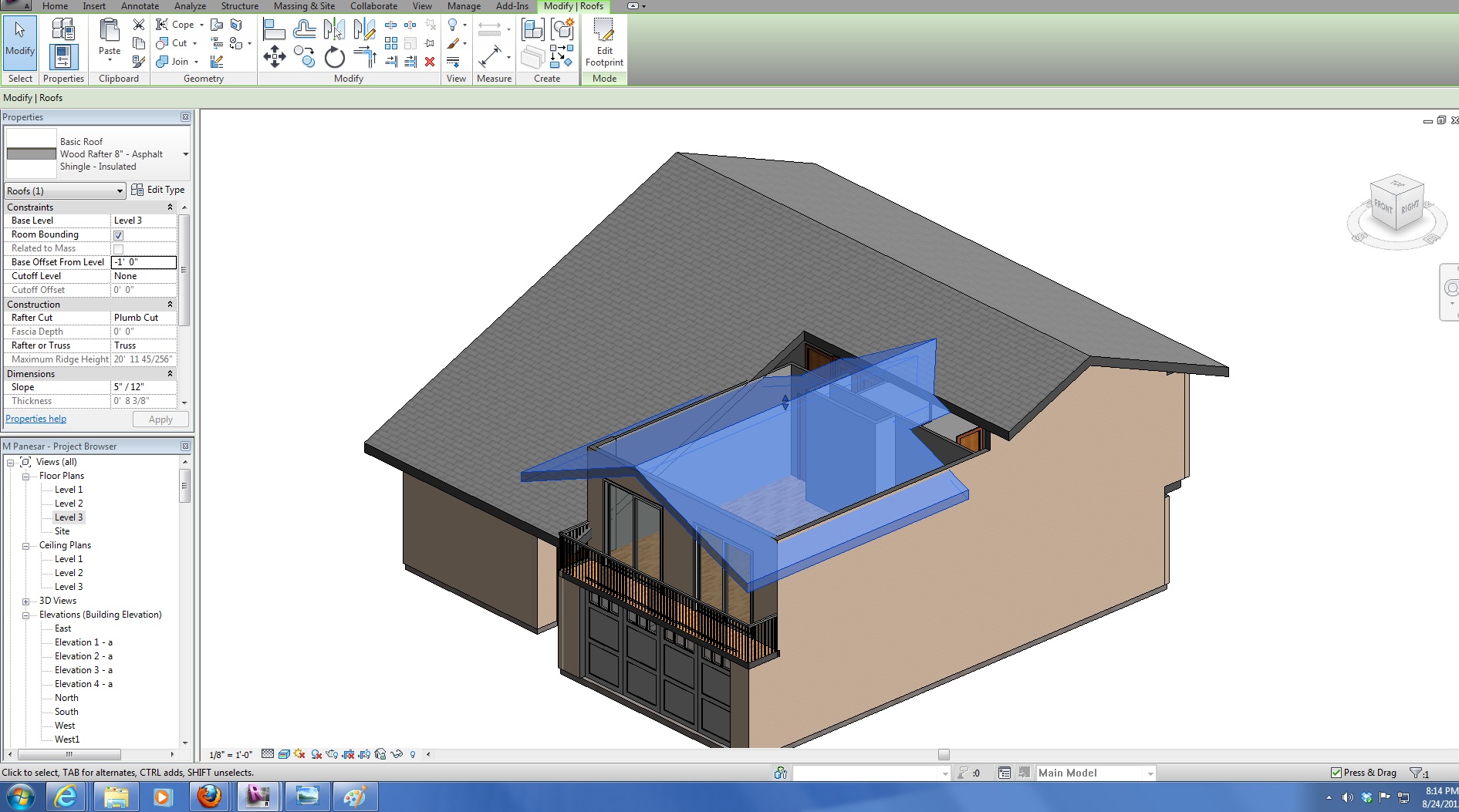

See attached pics below

Please let me know if you can think of anything that I'm not doing right...thanks

Edited on: Fri, Aug 24, 2012 at 10:19:17 PM

Edited on: Fri, Aug 24, 2012 at 10:20:55 PM



This user is offline



Sat, Aug 25, 2012 at 5:43:33 AM | Irregular residential roof

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


I can open those PDF's but not the images, I can save them but when I open them they are very small and I can't see the problem....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Aug 25, 2012 at 10:21:13 AM | Irregular residential roof

#8

tectacoma


active
tectacoma Avatar

Joined: Fri, Feb 4, 2011
30 Posts
No Rating

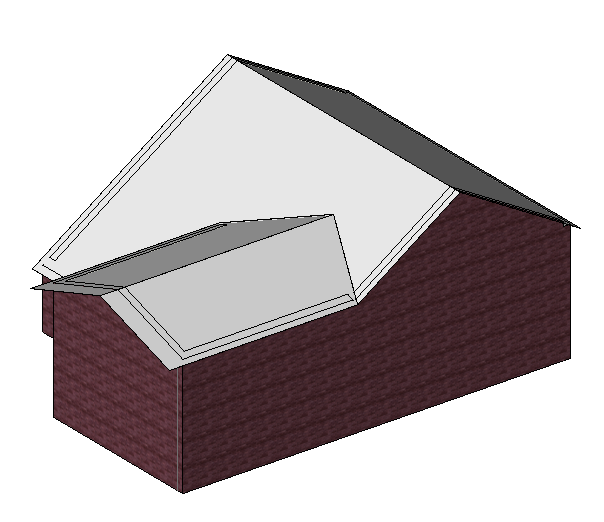

Typhoon, try these images...I "print screen" and used photoshop..hope you can see it better now. When I click on the images

below here they open jjust fine in another window.

I can't get the roofs to join correctly..only partial

Thanks for helping out again.



Attached Images


This user is offline



Sun, Aug 26, 2012 at 5:34:36 AM | Irregular residential roof

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

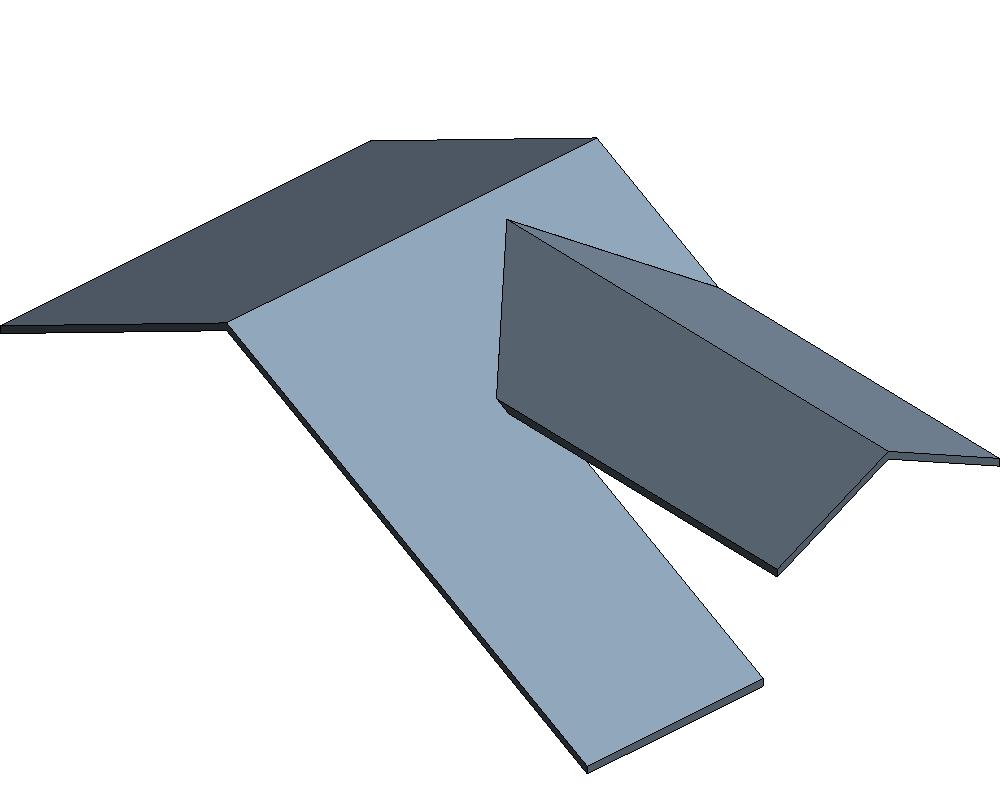

Nope, still can't.... Use free softwares like "Screenhubter" or "JING" to capture images like this...

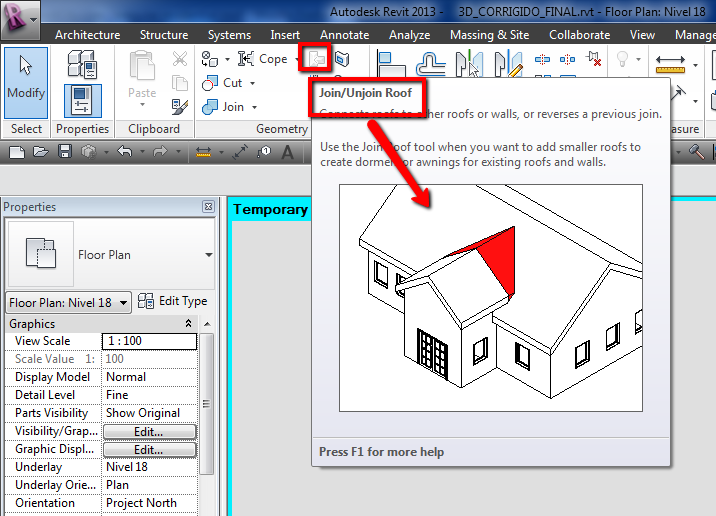

Anyway... are you using the "Join/Unjoin roof" tool or the "join/Unjoin" tool ? there's a difference here...

Use the first... now select the edge of the gable roof then select the FACE of the MAIN roof...









Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Aug 26, 2012 at 4:27:13 PM | Irregular residential roof

#10

Polar


active

Joined: Sat, Dec 6, 2008
57 Posts
No Rating


Hi Tectacoma,

Typhoon is right, but you have to do a little bit of fancy foot work.

Your main roof has to extend down far enough with the valleys at an angle in your roof by footprint sketch.

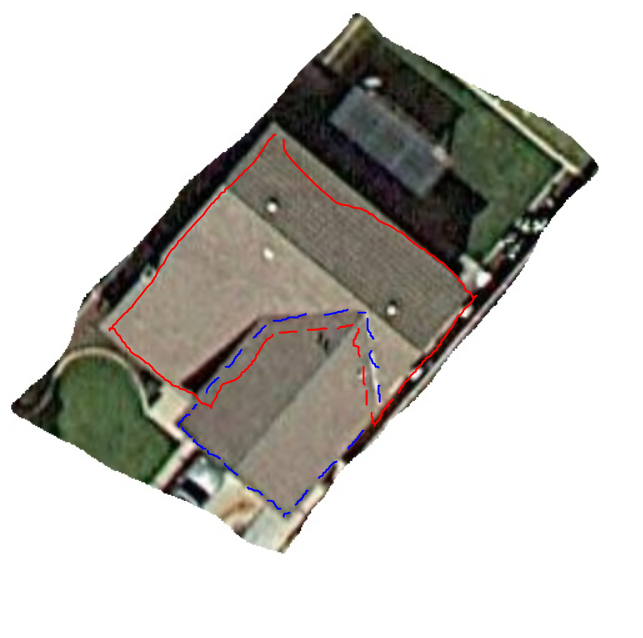

I have a attached a few freehand sketches here...

In general I think the best way to go is to make the main roof too big to start, then join the roof of the gable end like you have done correctly, and last go back and edit the sketch of the main roof by picking the valleys of the gable roof and then offsetting just enough so that the roofs can stay joined. Trim to tightly and their won't be enough of the main roof left to extend and attach to.



Attached Images


-----------------------------------

think it - build it

This user is offline



Sun, Aug 26, 2012 at 4:51:12 PM | Irregular residential roof

#11

Polar


active

Joined: Sat, Dec 6, 2008
57 Posts
No Rating


Tectacoma,

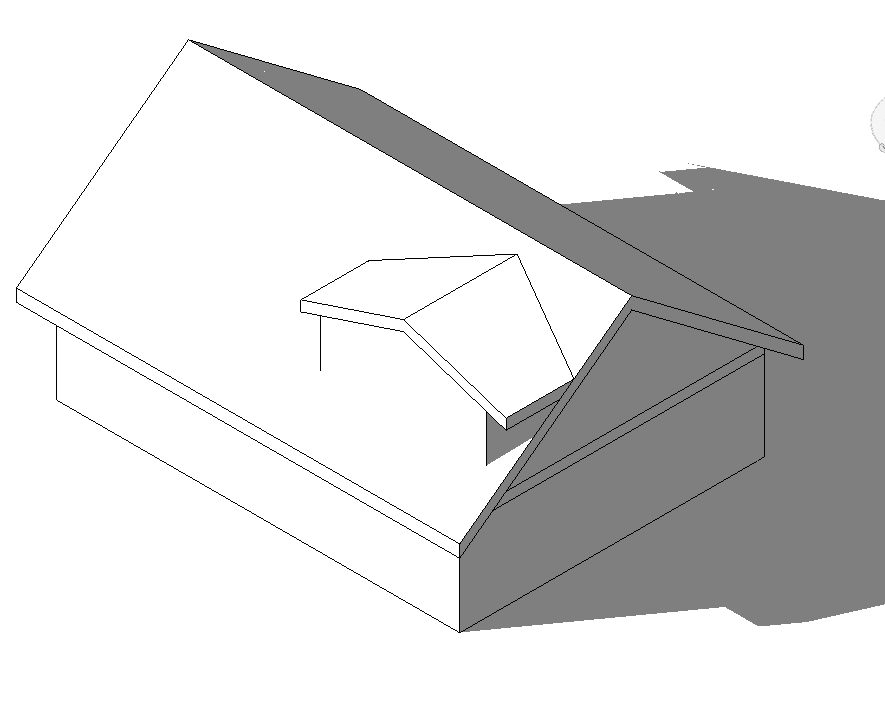

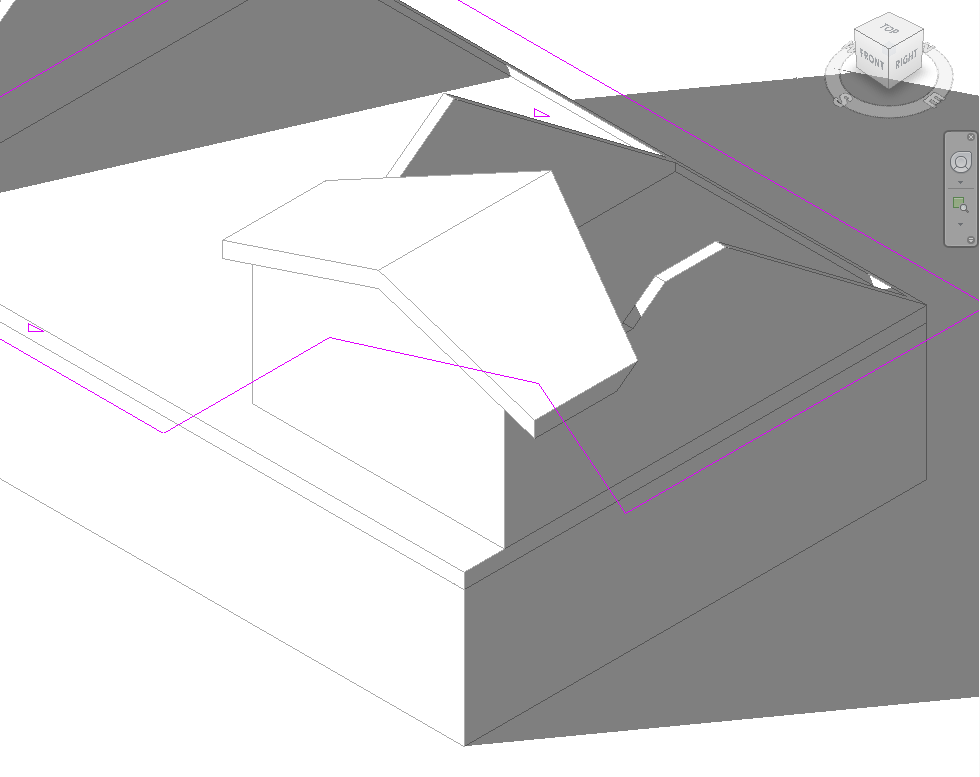

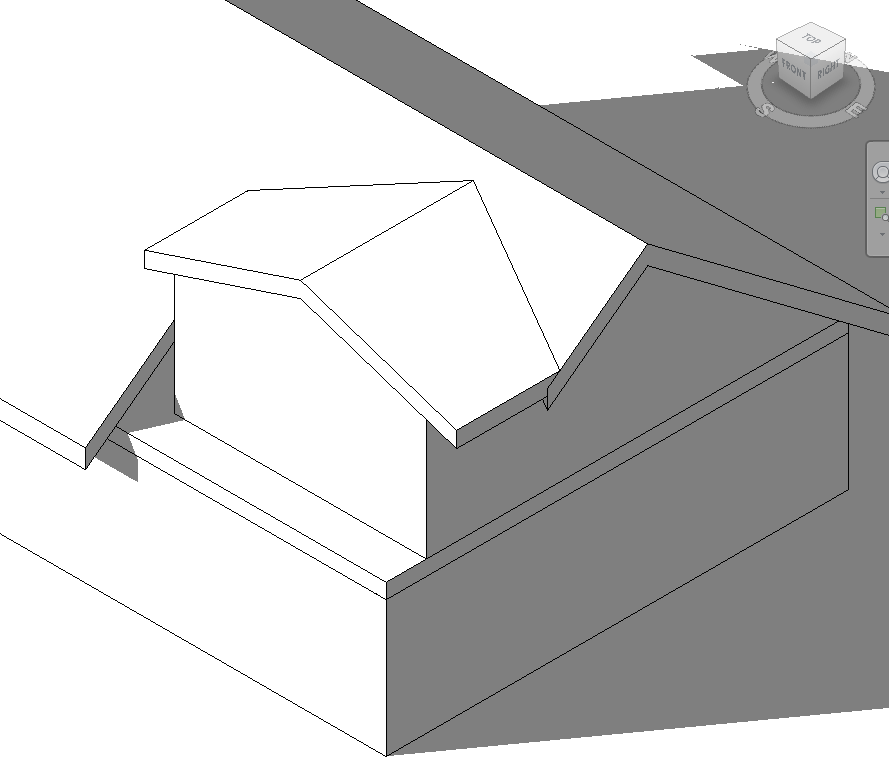

The attached snapshots so the way you might edit the roof sketches to achieve the effect you're trying to create.



Attached Images

110300_roof-question-a-05.PNG110300_roof-question-a-08.PNG110300_roof-question-a-10.PNG

-----------------------------------

think it - build it

This user is offline



Sun, Aug 26, 2012 at 11:35:34 PM | Irregular residential roof

#12

tectacoma


active
tectacoma Avatar

Joined: Fri, Feb 4, 2011
30 Posts
No Rating


Typhoon, try these images...I "print screen" and used photoshop..hope you can see it better now. When I click on the images

below here they open jjust fine in another window.

I can't get the roofs to join correctly..only partial

Thanks for helping out again.



Attached Images


This user is offline



Mon, Aug 27, 2012 at 3:55:40 AM | Irregular residential roof

#13

rinesh355


active
rinesh355 Avatar

Joined: Tue, Jul 27, 2010
21 Posts
4 Stars: 5 Votes


check attachments

this revit file may help you



Attached Images


Attached Files

This user is offline
