Forums >> Revit Building >> Technical Support >> Top mullion shows up in the plan view

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jul 24, 2012 at 6:04:37 PM | Top mullion shows up in the plan view

#1

diesellam


active

Joined: Tue, Jan 20, 2009
118 Posts
No Rating


I just created a simple winodw family.

I don't understand it looks fine in the reference level within the family.

But once I placed it in the project, it only shows the top mullion, I had to delete the mullion to make the plan view look right.  What's the reason of it?

See attached.



This user is offline



Tue, Jul 24, 2012 at 11:58:09 PM | Top mullion shows up in the plan view

#2

rinesh355


active
rinesh355 Avatar

Joined: Tue, Jul 27, 2010
21 Posts
4 Stars: 5 Votes


select top mullion,

in visibilty setting,  uncheck plan/rcp,

then top mullion not shown on plan of  project.

I have modify your family, check attachment.

this may solve your problem.



Edited on: Wed, Jul 25, 2012 at 12:02:54 AM

This user is offline



Wed, Jul 25, 2012 at 12:22:15 PM | Top mullion shows up in the plan view

#3

diesellam


active

Joined: Tue, Jan 20, 2009
118 Posts
No Rating


Cool.  It works.  Thanks.




This user is offline



Wed, Jul 25, 2012 at 1:39:13 PM | Top mullion shows up in the plan view

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Revit has a strange nuance in families.  They will be typically shown according to the plan view in the family.  So if you move the view cut plane in the family, that can affect how the family is shown in the project.  This may have been your problem.


This user is offline



Wed, Jul 25, 2012 at 5:03:05 PM | Top mullion shows up in the plan view

#5

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


What is the effect in the project of moving the cut plane in the plan view of a family?


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website

Mon, Jul 30, 2012 at 9:07:21 AM | Top mullion shows up in the plan view

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Alf, I did not have time to respond before.

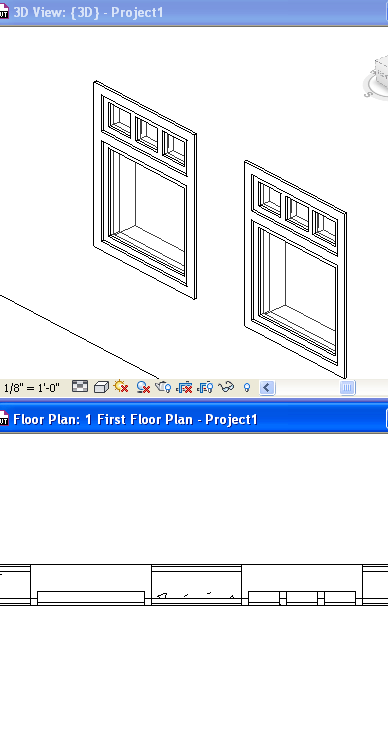

Here is a crafsman window taken off the RevitCITY site.  On the left is the window as downloaded.  On the right is the same window but with the cut plane moved up in the family and saved.  As you can see, Revit does not work correctly in this instance.



Attached Images

109398_ScreenHunter01_Jul._30_10.02.gif109398_ScreenHunter02_Jul._30_10.03.gif109398_ScreenHunter03_Jul._30_10.03.gif

This user is offline



Mon, Jul 30, 2012 at 9:15:26 AM | Top mullion shows up in the plan view

#7

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


Thank you. I see a change in the representation of the window in the family. But the question is, does that affect the representation in the project?


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website

Mon, Jul 30, 2012 at 9:19:26 AM | Top mullion shows up in the plan view

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


The first image IS THE PROJECT!  Same in 3D but not in plan!


This user is offline



Mon, Jul 30, 2012 at 2:44:49 PM | Top mullion shows up in the plan view

#9

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


Sorry, I don't understand. To me, those images are plan views inside the family editor.


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website

Mon, Jul 30, 2012 at 3:06:22 PM | Top mullion shows up in the plan view

#10

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Alf,

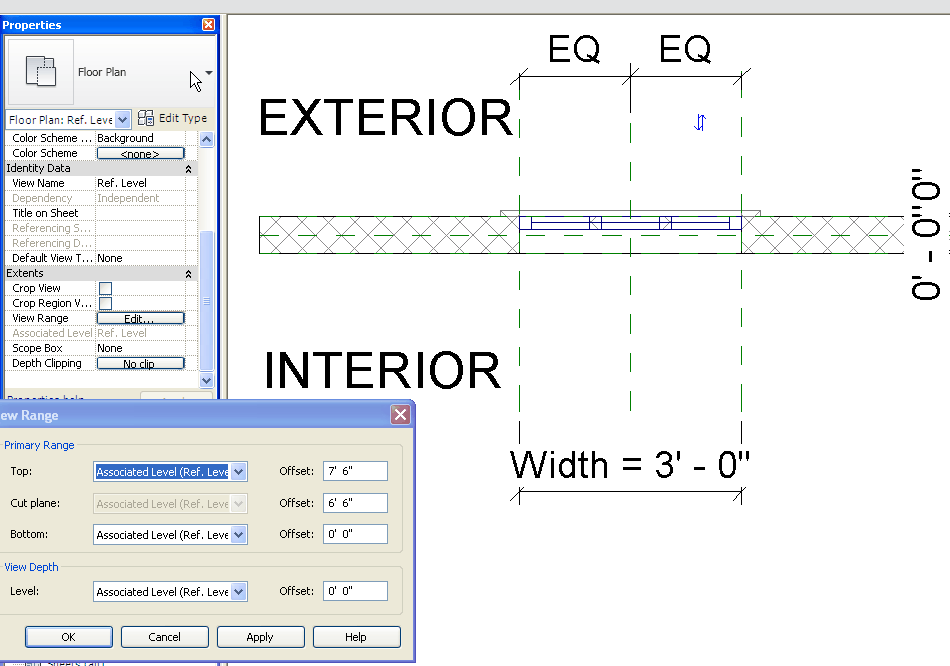

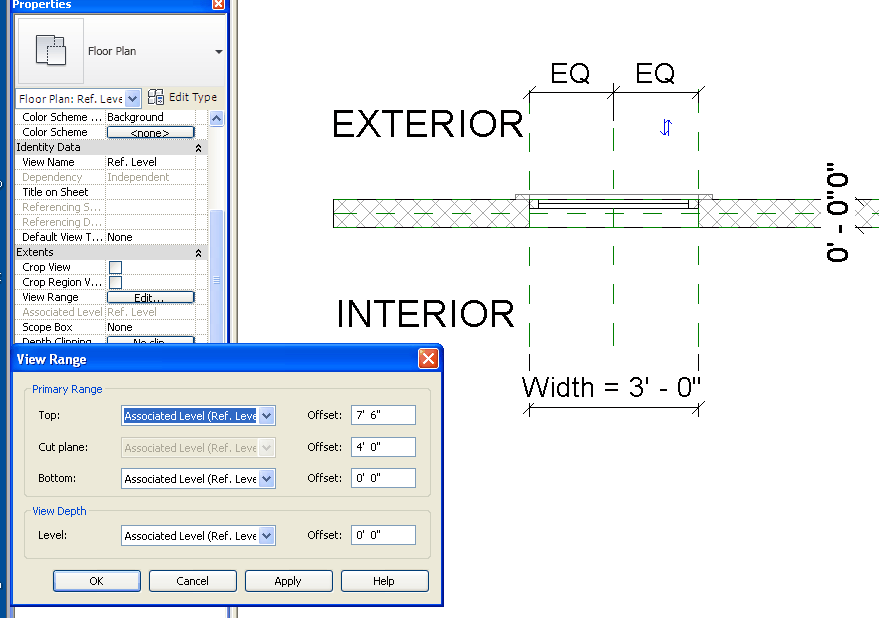

There are 3 images there.  The first on the left is a stacked project image with the 3D above the plan, and the views says PROJECT.  There is no plan regions and the two windows show differently in plan.  The other 2 images on the right are plan view of the families and the plan view properties showing that the cut plane is higher into the upper lite area.



3 images.....


This user is offline



Mon, Jul 30, 2012 at 3:28:23 PM | Top mullion shows up in the plan view

#11

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


Ah, OK, there are 3 images. I had not noticed the first one. Thanks. So, according to those images, the height of the cutplane in the family DOES indeed affect the representation of the family in the project. Correct?


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website

Mon, Jul 30, 2012 at 4:01:06 PM | Top mullion shows up in the plan view

#12

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


right!



I don't know of anyone else that has seen this problem.  I don't remember any posts here or on Augi.  I just know this can cause problems because it did with me a long time ago.


This user is offline



Mon, Jul 30, 2012 at 4:24:30 PM | Top mullion shows up in the plan view

#13

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


I had made a quick test when you mentioned this before, but I did not see the effect in the project, but it is clear in yourimages that it does have an effect. Interesting.


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website
