I need to make 2d furniture and i want to place it in section.
I open new family and choose metric furniture. Then set the work plane to be Front and drew it in that elevation.
When i tried to load it into my project's section in said "This type of component cannot be placed in Elevation or Section view".
Please help.
|
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
Why not just draw it right in your section instead of trying to make it a family.
|
This user is offline |
View Website
|
|
|
active
Joined: Sun, Oct 2, 2011
31 Posts
No Rating |
Well I though it can be done as family. If it can't i'll just draw it in the project.
Thanks for the solution.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
You actually created a floor based component. You should have done something in the plan view in the family so that you could place it in a plan view. Then the elevation that is parallel with your element will show it. (If it is symbollic 2D linework that you placed in the family elevation.)
|
This user is offline |
|
|
|
active
Joined: Sun, Oct 2, 2011
31 Posts
No Rating |

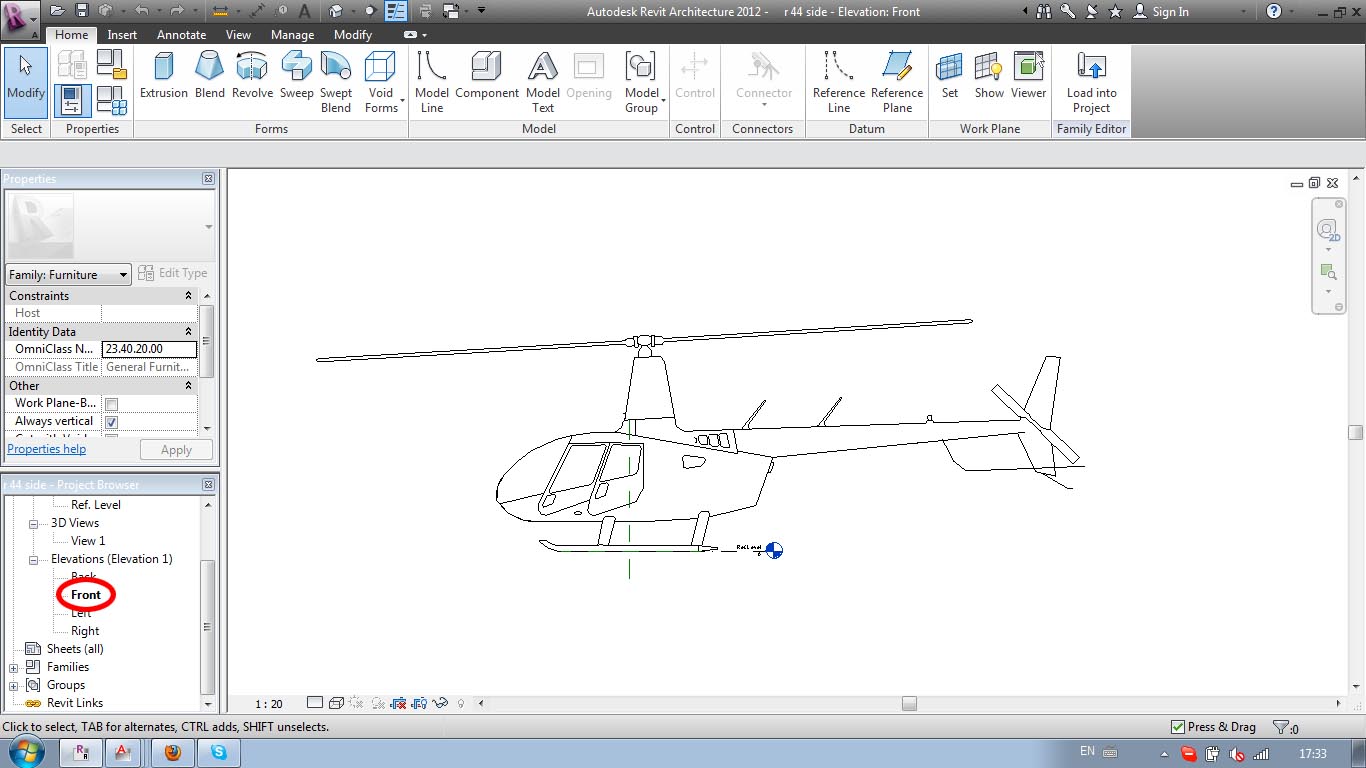

Well I am drawing it in front view, as you can see, and it's not working.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
.............You actually created a floor based component. You should have done something in the plan view in the family so that you could place it in a plan view. ........
^ ^ ^ ^ ^ S T I L L T H E A N S W E R ^ ^ ^ ^ ^ ^
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
I would probably have put this 3D in my model.
|
This user is offline |
|
|
|
active
Joined: Sun, Oct 2, 2011
31 Posts
No Rating |
I dont want to place it in a plan view, i want it placed in a section. Sorry i am newbie and don't understand your answer.
And i need that exact model not just some other model.
Thank you anyway, i know its anoying explaining simple stuff.
|
This user is offline |
|
|
|
active
Joined: Sun, Oct 2, 2011
31 Posts
No Rating |
Ok i finally got it. I used Metric Generic Model Adaptive instead of Metric Furniture template.
Thanks.
|
This user is offline |
|
|
|
