Forums >> Revit Structure >> Technical Support >> Rebars - Stirrups Tie in Drafting View

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Jul 8, 2012 at 1:14:14 PM | Rebars - Stirrups Tie in Drafting View

#1

Blaize


active

Joined: Wed, Apr 19, 2006
2 Posts
4 Stars: 1 Votes


does anyone know how to get strirrups with tie drawn in a detailed drafting view? i am attempting to draw a list of details in the drafting view and i can only use the Bar Section and Bar Bends........but there is no family where i can use Styrups under detail family with a tie..........does anyone know how and where i can get it to be used in a drafting view?


This user is offline



Mon, Jul 30, 2012 at 1:52:58 PM | Rebars - Stirrups Tie in Drafting View

#2

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 13 Votes

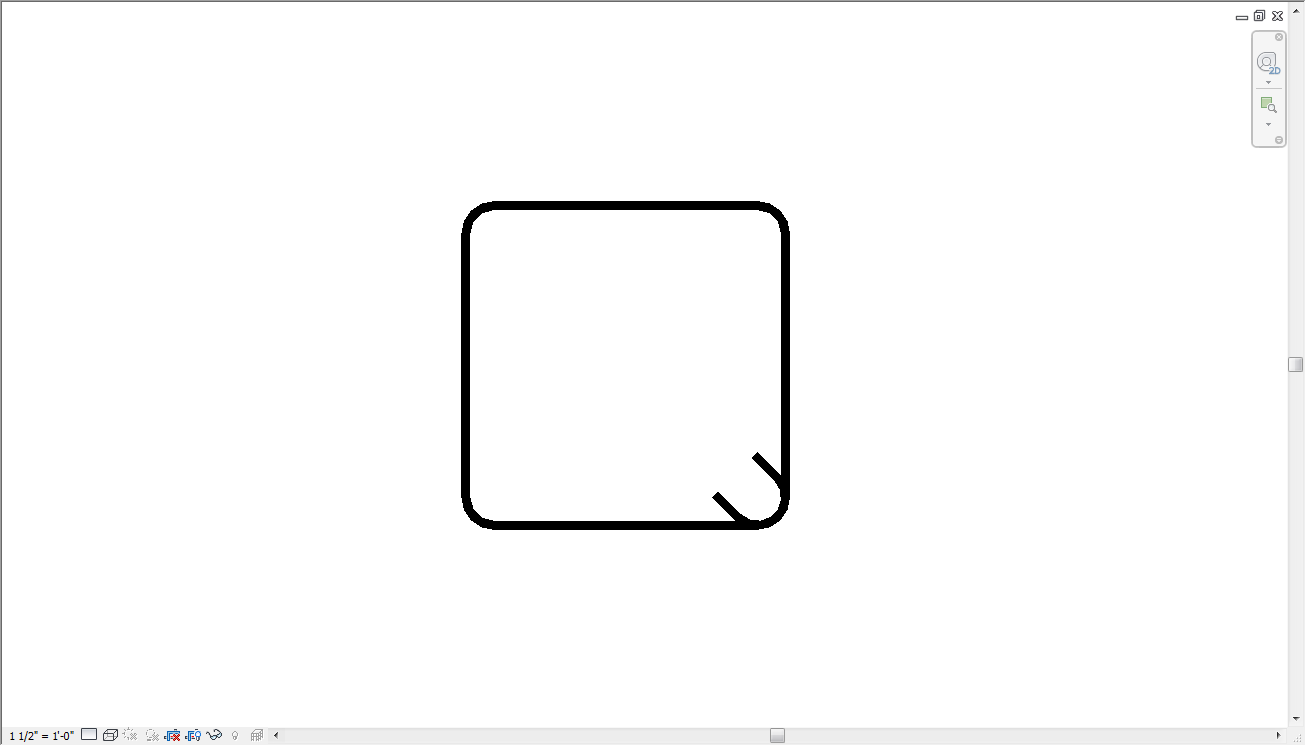

In Revit you are encouraged to make things, Families, attached is detail component rebar tie #4 you can modify these things.



Attached Images


Attached Files

This user is offline



Wed, Aug 1, 2012 at 1:18:03 AM | Rebars - Stirrups Tie in Drafting View

#3

Blaize


active

Joined: Wed, Apr 19, 2006
2 Posts
4 Stars: 1 Votes

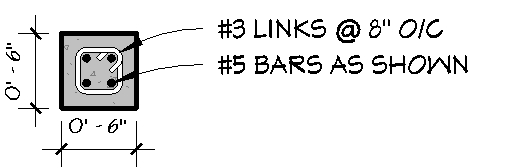

thanks....i just drew it using fill region since i dont have to use it as a family. i will be using it as details so once i draw it, i dont have to change it. which means that i do not need it to be a family due to the fact that i can copy drafting views/ import them from one drawing to the next.

thanks for that file....i was trying to make one myself but i dont need it again since i figured out that alternative way.



Edited on: Wed, Aug 1, 2012 at 1:26:26 AM

Attached Images


This user is offline



Wed, Aug 1, 2012 at 9:47:36 AM | Rebars - Stirrups Tie in Drafting View

#4

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 13 Votes


sometimes I just use a linetype for reinforcing.


This user is offline
