Forums >> Revit Building >> Technical Support >> Cut a profile with a reveal?
|
|
active
Joined: Thu, Jan 29, 2009
51 Posts
|
I have a 5" thk. precast panel. I started with a 4" conc wall, duplicated, and then added a 1" profile to the exterior of it. The reason why is because I needed a 1" bevel at the top and bottom of it when the curtain wall sits on it or below it. I have multiple profiles since this wall covers 3 stories, so 3 separate curtain walls. Question is; I need to put some vertical reveals in the wall that align with the mullions. But the wall sweep reveal attaches/inserts at the core of the wall and ignores the profile. Is there a way to cut the profile with a reveal?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Not sure I understand.
"...The reason why is because I needed a 1" bevel at the top and bottom of it when the curtain wall sits on it or below it."... << You can do this with a reveal.
'...I have multiple profiles since this wall covers 3 stories, so 3 separate curtain walls." << Why curtain walls? NO NEED
"...I need to put some vertical reveals in the wall that align with the mullions. But the wall sweep reveal attaches/inserts at the core of the wall and ignores the profile. Is there a way to cut the profile with a reveal?" << We often have vertical reveals that align with the edges of windows. We just move them till they are centered on the edge of the widow. The result is a chamfer ... the reveal doesn't cut the window. What profile do you want to cut?
|
This user is offline |
|
|
active
Joined: Thu, Jan 29, 2009
51 Posts
|

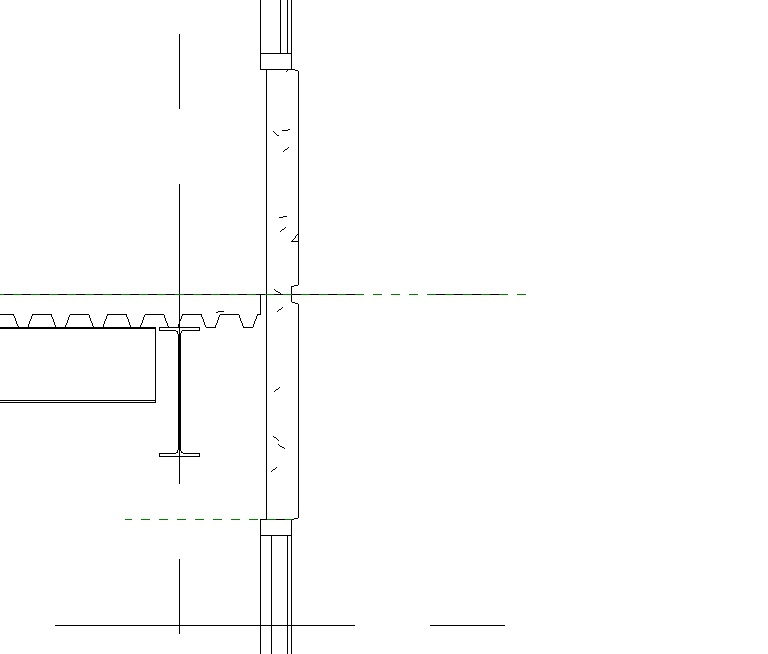

I think I understand what you are saying about the chamfer. I have attached a small section. That's a 4" concrete wall w/ (2) 1" profiles on top of it. This happens multiple times on my 3 story building. I didn't realize I could use the reveal as a chamfer at the top and bottom w/o affecting my wdw. So thx for your solution.
But, can you cut a reveal into a profile? The horiz. reveal you see in my dwg is a fake. My (2) profiles are spread out to create that. I want to create a vertical one now but the reveal cuts the core wall and not the profile
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
If you have horizontal and vertical reveals, one doesn't cut the other because where they intersect, one already has cut the wall.
This could be one wall - full height with embedded curtain wall windows.
|
This user is offline |
|
|
|
