Forums >> Revit Building >> Technical Support >> Topo Lines

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

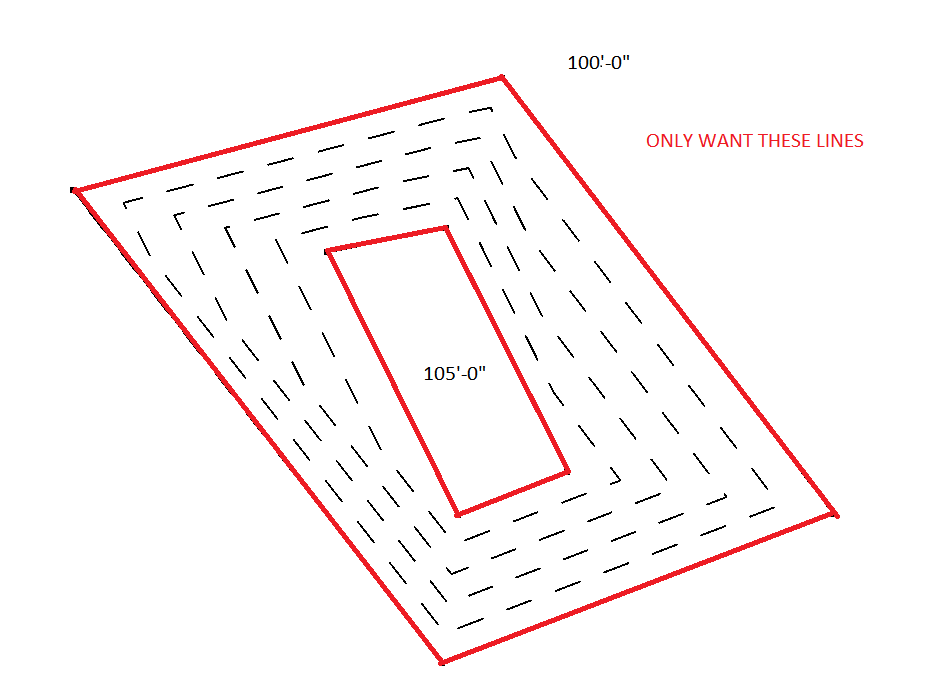

I am drawing a site plan and I do NOT want to see all of the intermediate contours that i don't draw.  I drew a contour at 100'-0" and a contour at 105'-0" and those are the only 2 lines that I want to see but Revit is giving me contours at every foot.  Is there a way to change that so it only shows the contours that I draw?

Attached Images

This user is offline

View Website

itsmyalterego

active

Joined: Thu, May 28, 2009
829 Posts

In VG, under topography, you can turn off secondary contours which leaves just the primary contours at 5 foot increments.  sounds exactly like what you want.

This user is offline

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

. . . . and you can control the spacing (or none spacing) of the primary and secondary contours from the 'Site Settings' dialog box.

-----------------------------------

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150

This user is offline

View Website

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

THANKS!  Took me forever to find that flyout for the Site Settings!

This user is offline

View Website
