Forums >> Revit Building >> Technical Support >> how to do a tubolar spiral?

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 18, 2012 at 4:30:18 PM | how to do a tubolar spiral?

#1

querosaber


active

Joined: Thu, Feb 28, 2008
40 Posts
No Rating


how to do a tobular spiral?


This user is offline



Mon, Jun 18, 2012 at 4:38:14 PM | how to do a tubolar spiral?

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


What Revit version are you using?

Here is one for 2012 http://www.youtube.com/watch?v=aXtY0ngSIto


This user is offline

View Website

Mon, Jun 18, 2012 at 6:07:34 PM | how to do a tubolar spiral?

Thread Post Kudo! Thread Post Kudo! #3

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 15 Votes

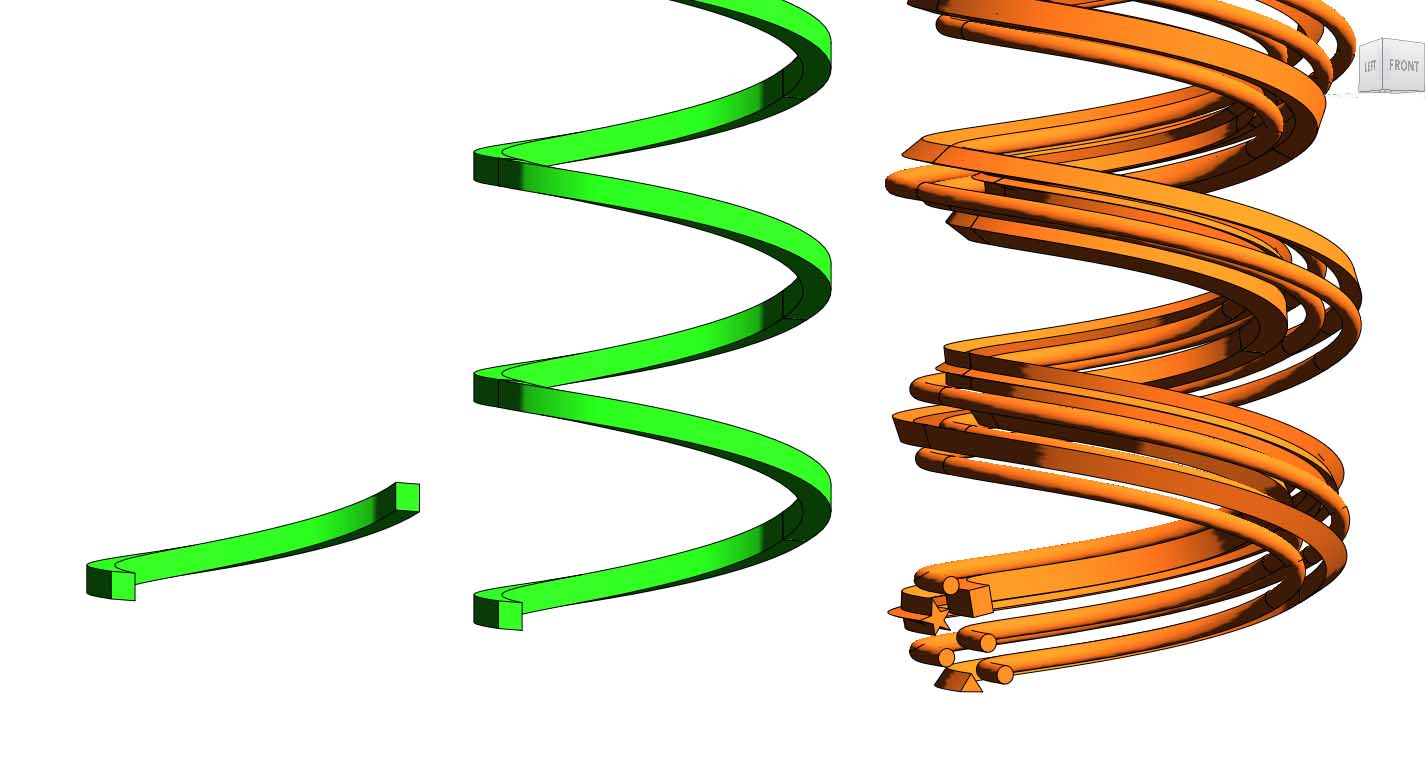

My advice is to use a swept blend.  Start with one swept blend, which has an arc for a path, and a square for the first profile.  Give it a second square profile, elevated as high as your spiral will rise in a half turn.

finish the swept blend--then mirror it, move it end to end, and start copying the segments upward.  Perhaps this meets your needs right here.

But, for added fun, you can use the edges of this swept blend as the 3D path of a regular sweep, since sweeps are much more flexible for profile changes.



Edit:   And of course, any of these profiles could be hollow/a tube instead.



Edited on: Mon, Jun 18, 2012 at 1:10:47 PM

Attached Images


This user is offline



Tue, Jun 19, 2012 at 1:11:22 PM | how to do a tubolar spiral?

#4

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes


Here's an article that I wrote recently about how to do the helix in multiple loops, controlled by parameters:

http://planta1.com/forum/entry.php?17-How-to-create-a-parametric-helix-with-multiple-loops


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website
